GC-ZS-20
Guangce
9024800000
Product Description

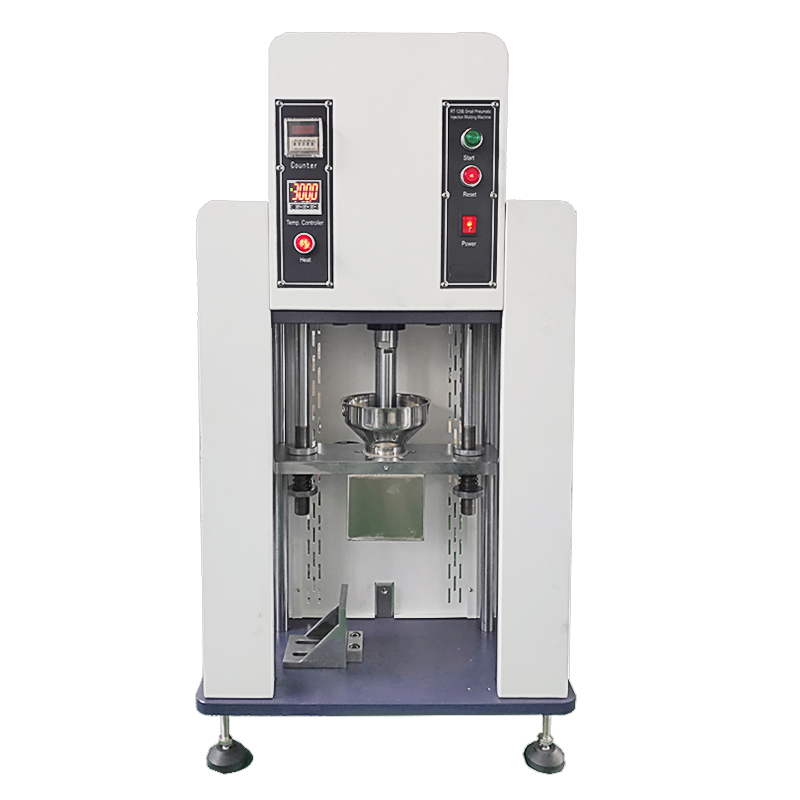

Compact, Versatile, and Precision-Driven for R&D, Education, and Small-Batch Production
The injection molding prototype machine is a mechanical device. It is usually composed of an injection system, a mold clamping system, a pressure transmission system, an electrical control system, a lubrication system, a heating and cooling system , a safety monitoring system, etc. The injection system is one of the most important components of an injection molding machine. Generally, there are three main types of injection molding machines: plunger type, screw type, and screw pre-plastic plunger injection type. The most widely used type is the screw type. Its function is to heat and plasticize a certain amount of plastic within a specified time in one cycle of the injection molding machine, and then inject the molten plastic into the mold cavity through the screw at a certain pressure and speed.
Designed with a vertical clamping and injection configuration, the machine is particularly well-suited for insert molding, and compatibility with a wide spectrum of engineering thermoplastics—including PP, ABS, PC, PVC, PE, PA, EVA, and PLA—this machine offers exceptional material versatility for diverse plastics.
Model | GC-ZS-20 |
temperature range | RT～450℃（±3℃）【Limit 450 degrees】 |
Plunger diameter [mm] | 25mm |
Maximum compression stroke (mm) | 150mm |
Heating chamber size [approx. mm] | 25 * 110 |
Maximum injection volume [approx.] | 20g |
Injection pressure | 1T |
Injection time | 0-9999s【Adjustable】 |
Cavity structure | The mold cavity can be replaced to effectively prevent materials from contaminating each other. |

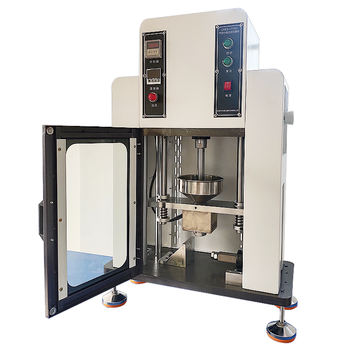

safety protection | Protective door + safety grating [optional quotation subject to the quotation] |
Maximum size of mold installation: approx. | 200 160 210 |
Machine weight [approx. kg] | 35 |
Power | 800w |
Voltage | 220V/60HZ |
Gas source | 0.6mpa |
Control method | Pneumatic |
Dimensions [approx.] | 550 *600 *1300MM |
The humanized work surface height design is suitable for large machines and is comfortable to operate, thereby reducing the operator's labor intensity and improving work efficiency.
The injection molding machine adopts pneumatic operation design to achieve the requirements of fast, simple and easy maintenance.
The moving parts of the template and the machine column adopt high-rigidity copper bushings to achieve smooth movement, long service life and high precision.
The injection molding system adopts pneumatic double guide column design, which has stable movement and high injection precision.
The feeding is done manually.
The bench-top clamp mold is easy to install and disassemble, which can greatly improve production and work efficiency.
The mold adjustment is controlled separately from the side, which is convenient and user-friendly for quick mold replacement.
Humanized design of the shooting platform lifting system makes it convenient, fast, time-saving and labor-saving to adjust or change the mold.
