Key Stroke vs. Touch Screen Glow Wire Test Apparatus: Which Control Method Fits Your Lab?

When procuring a flame retardant test machine, buyers often focus strictly on thermocouple accuracy and heating elements. However, the control interface—whether key-stroke or touch screen—directly dictates operator repeatability, data integrity, maintenance frequency, and overall throughput during high-volume testing of insulating materials, electrical components, and light fixtures. To ensure reliable compliance with standards like IEC 60695-2-11, UL 746A, and DIN 695, testing facilities must evaluate both control methods against their specific lab environment, operator expertise, and audit requirements. You need to know how the operational mechanics, durability, and data management capabilities of both interface types impact your daily laboratory workflow. We will break down the exact differences so you can select the optimal configuration for your testing processes, ensuring your lab maintains high accuracy without sacrificing operational efficiency.

• Environment Dictates Design: Key-stroke interfaces offer superior physical durability in dusty or corrosive lab environments, while touch screens excel in clean, high-throughput testing facilities requiring complex data management.

• Compliance and Repeatability: Both interfaces can meet IEC and ASTM standards, but touch screen models typically offer semi-automatic or fully automatic timing controls that reduce human error during specimen movement, application, and observation phases.

• Data Integrity vs. Maintenance: Touch screen glow wire flammability testers streamline audit trails and data export, but introduce higher repair costs and potential calibration drift compared to the mechanical simplicity of key-stroke models.

The Role of Control Interfaces in a Glow Wire Test Apparatus

The architecture of a modern thermal testing system relies heavily on the physical and functional separation of its components. A standard testing environment is divided into two distinct zones: the physical test chamber and the control interface. The test chamber is a highly controlled, draft-free enclosure where the actual combustion, material melting, and toxic off-gassing occur. During a test, polymers release acidic smoke, soot, and volatile organic compounds like hydrochloric acid from PVC materials. The control interface must be physically isolated from this harsh environment. Modular design protects sensitive internal electronics—such as programmable logic controllers (PLCs), relays, and digital displays—from thermal degradation and chemical corrosion. This separation also makes field installation, routine calibration, and on-site debugging significantly more convenient for maintenance personnel.

The chosen control method directly influences the precision engineering required to meet strict international standards. Protocols like IEC 60695-2-10, IEC 60695-2-11, UL 746A, and DIN 695 demand exacting parameters. A glow wire test apparatus must heat a specific 4mm Nickel/Chromium (80/20) wire loop to temperatures ranging from 550°C to 960°C. The system reads the temperature via a fine-wire Type K thermocouple inserted into a 1mm drilled hole in the tip of the glow wire. The control interface manages the power delivery to stabilize that temperature, then commands the specimen carriage to apply the material to the wire with exactly 1.0N ± 0.2N of force. It enforces penetration depth limits, mechanically restricted to 7mm, and governs the cooling cycles. It ensures the glow wire application lasts exactly 30 seconds. The accuracy of these mechanical movements and timing sequences relies entirely on how the control interface processes operator inputs and commands the internal motors and timers.

Establishing clear success criteria is essential for making a sound procurement decision. A successful implementation rests on three foundational pillars: operator accuracy, equipment longevity, and verifiable data logging. Operator accuracy, or repeatability, ensures that every specimen is tested under identical conditions, regardless of who is running the machine. Equipment longevity focuses on maximizing uptime and minimizing the frequency of component failures in a demanding lab environment where soot and ash are constant threats. Finally, verifiable data logging ensures the facility remains audit-ready, providing clear, traceable evidence that all tests were conducted strictly according to the mandated standards, including the exact ignition time (Ti) and extinguish time (Te).

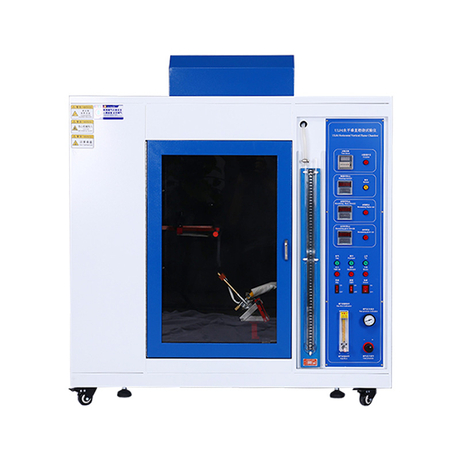

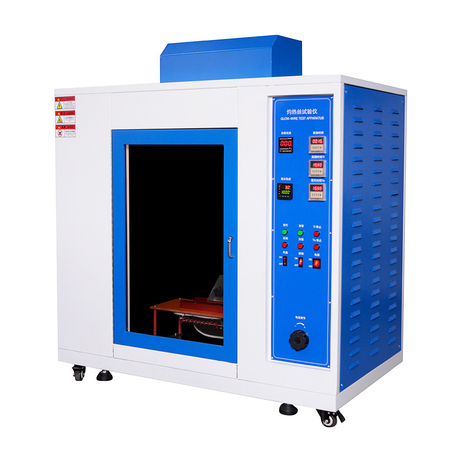

Key-Stroke Glow Wire Fire Hazard Testing: Pros, Cons, and Use Cases

Traditional testing interfaces rely on a straightforward, mechanical approach to machine control. The operational mechanics of key-stroke glow wire fire hazard testing equipment involve physical push buttons, membrane switches, and rotary dials. Operators set target temperatures using a dedicated standalone PID (Proportional-Integral-Derivative) controller and adjust application times using digital or analog timer relays. The primary advantage of this setup is tactile feedback. Laboratory technicians conducting thermal tests often wear heavy protective gear, including thick heat-resistant leather or aluminized gloves. Mechanical buttons provide a definitive, physical "click" that confirms an action has been registered, eliminating the need to remove safety gloves to operate the machinery.

Durability in harsh laboratory environments is where key-stroke interfaces truly excel. The physical panels are highly resilient against the accumulation of soot and the corrosive off-gassing produced by burning plastics. If a specimen ignites and produces heavy, acidic smoke, the mechanical switches are far less likely to suffer immediate operational failure compared to exposed touch screens. Furthermore, key-stroke models exhibit a lower susceptibility to electronic failure in environments plagued by high electromagnetic interference (EMI) or rapid ambient temperature fluctuations. The underlying circuitry is simple, relying on standard industrial contactors and relays that can withstand significant physical impacts and environmental abuse without dropping a signal.

However, this mechanical simplicity introduces distinct limitations in data logging and workflow automation. The data recording process is inherently manual. Operators must closely monitor the test, using a stopwatch or the machine's basic digital timer to visually determine and manually log critical metrics. They must watch for the exact moment the specimen ignites to record Ti, and the exact moment the flames die out to record Te. They also must manually observe if flaming drips ignite the tissue paper placed 200mm below the specimen. There is no built-in memory for storing multiple test profiles, meaning technicians must manually reconfigure the temperature and timer settings when switching between different material standards like GWFI (Glow Wire Flammability Index) and GWIT (Glow Wire Ignition Temperature). This lack of historical data storage requires meticulous manual record-keeping to maintain compliance traceability.

Given these characteristics, key-stroke models are highly recommended for specific operational environments. They are the ideal setup for low-volume testing labs where the manual data entry workload is manageable and does not create a bottleneck. Educational institutions benefit from the mechanical transparency, allowing students to understand the fundamental physics, PID tuning, and timing of the test without automated interference hiding the process. Additionally, facilities located in heavy industrial settings—where the apparatus is subjected to significant wear and tear, dust, and rough handling—will find the rugged reliability of a key-stroke interface far outweighs the benefits of digital automation.

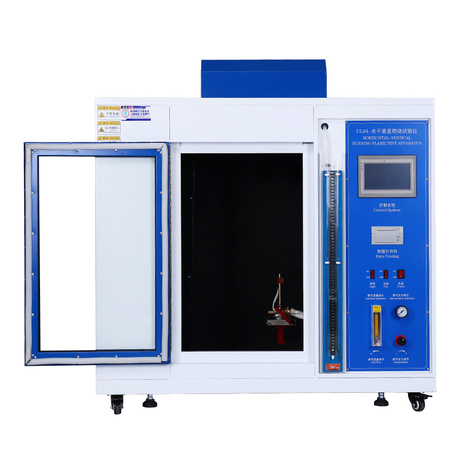

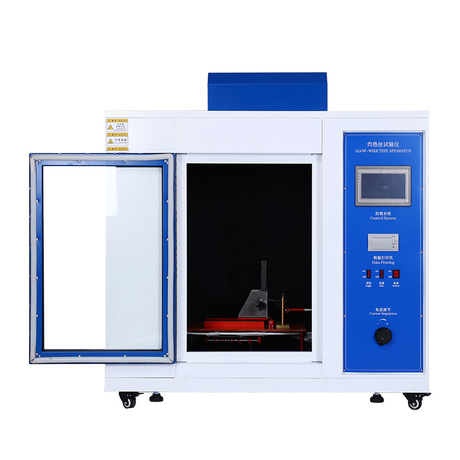

Touch Screen Glow Wire Flammability Tester: Pros, Cons, and Use Cases

Modern testing facilities increasingly demand sophisticated control over testing parameters and real-time monitoring capabilities. A touch screen glow wire flammability tester integrates a Programmable Logic Controller (PLC) backend with a high-resolution Human-Machine Interface (HMI) panel. This digital architecture allows operators to pre-program specific test profiles for different materials, storing target temperatures, application times, and cooling periods in the machine's memory. These semi-automatic capabilities fundamentally change the testing workflow. The interface commands stepper motors to control specimen movement with extreme precision, ensures exact timing during the 30-second application phase, and executes an automatic carriage return the moment the test concludes. This automation eliminates the variations in speed and force that can occur with manual carriage operation, ensuring the 1.0N force is applied perfectly every time.

The integration of data export and audit trails is a major operational advantage. Touch screen interfaces provide real-time temperature curve displays, allowing operators to visually verify that the glow wire maintained the required temperature throughout the application phase without unacceptable voltage drops. When the cold specimen hits the 960°C wire, the temperature naturally dips; the PLC monitors how quickly the system recovers. The system automatically calculates test results based on operator inputs for Ti and Te, and logs the exact parameters used during the test, including timestamps and operator IDs. This data can be directly exported via USB drives or local network connections in unalterable PDF or CSV formats. For laboratories maintaining ISO/IEC 17025 accreditation, these digital audit trails are invaluable, providing definitive proof of compliance during rigorous external audits.

Despite their advanced capabilities, touch screen interfaces introduce specific vulnerabilities and maintenance realities. The screens themselves are susceptible to degradation from chemical exposure. Prolonged contact with soot or acidic gases can etch the screen surface, reducing visibility and touch sensitivity over time. Accidental impacts from tools or heavy specimens can crack the glass, rendering the machine inoperable. Furthermore, capacitive touch screens often fail to register inputs when operators wear thick protective gloves, forcing a choice between safety compliance and operational efficiency. While resistive touch screens mitigate this slightly by relying on pressure rather than capacitance, they are still more fragile than a mechanical button. When a failure does occur, replacing a proprietary HMI panel and reprogramming the PLC requires specialized technical support.

Touch screen setups are best suited for environments that prioritize data and throughput. They are highly recommended for high-throughput commercial testing labs where saving a few minutes on data entry per test translates to significant operational efficiency across hundreds of samples. Research and development departments requiring precise data visualization and thermal curve analysis will benefit greatly from the real-time monitoring features to see exactly how a new polymer blend reacts to thermal stress. Finally, any facility operating under strict digital compliance mandates, where manual transcription of test data is prohibited or heavily scrutinized by auditors, will find a touch screen interface indispensable.

Head-to-Head Evaluation: Which Flame Retardant Test Machine Fits Your Workflow?

Choosing between control methods requires a careful evaluation of operator training and daily usability. The learning curve differs significantly between the two interfaces. Key-stroke models require manual procedural knowledge; the operator must understand the standard, know exactly when to start the timer, manually observe the penetration depth, and understand how to tune a PID controller if the temperature overshoots. It demands a higher level of foundational testing knowledge. Conversely, touch screens guide operators through the process. The software prompts the user, enforces stabilization times, and automates the physical movements. However, it requires basic software literacy and the ability to navigate digital menus, troubleshoot software glitches, and manage digital file exports.

Maintenance, repair, and long-term reliability present another stark contrast. Key-stroke interfaces are built on a decentralized, modular architecture. If a start button fails, a technician can diagnose it with a simple multimeter and replace it with a standard 22mm industrial switch sourced from any local electrical supplier within minutes. The machine is back up and running immediately. Touch screen models rely on centralized logic. If the HMI panel fails, the screen goes black, or the PLC loses its programming due to a power surge, the entire machine is down. Repairs often require specialized parts directly from the original equipment manufacturer (OEM) and may necessitate remote software troubleshooting, leading to longer potential downtime while waiting for parts to ship.

Throughput and daily operational efficiency also heavily influence the decision. Key-stroke models require more labor time per test due to manual data entry, manual carriage return, and manual setup of the temperature profiles. The operator must be physically present and highly attentive for the entire duration of the heating, application, and cooling phases. Touch screen models streamline this workflow. By automating the carriage movements and the report generation process, high-volume labs can process more specimens per shift. The operator can set the profile, initiate the test, and let the machine handle the precise 30-second application and retraction, freeing them to prepare the next specimen or observe the flame behavior without simultaneously managing a stopwatch.

Implementation Risks and Mitigation Strategies

Deploying advanced testing equipment involves inherent risks, particularly concerning the longevity of the control interface. Protecting touch screens from corrosive byproducts is a primary concern. The risk stems from the soot and acidic gases released by burning polymers, which can rapidly degrade the screen's surface and internal electronics. If a lab tests heavily halogenated plastics, the resulting off-gassing is highly aggressive toward printed circuit boards.

To ensure your equipment survives the harsh realities of daily thermal testing, implement the following mitigation protocols:

1. Install a dedicated local exhaust ventilation (LEV) arm directly above the test chamber to capture acidic off-gassing before it reaches the control electronics or the operator.

2. Apply industrial-grade, sacrificial screen protectors to HMI panels and replace them weekly to prevent permanent etching from soot and ash.

3. Enforce strict post-test cleaning protocols, requiring operators to wipe down the interface with approved, non-abrasive solvents after every shift to remove chemical residue.

4. Integrate an independent, calibrated digital data logger to the thermocouple output on mechanical machines to ensure traceable temperature records without relying on manual logs.

5. Implement a mandatory dual-verification sign-off sheet for all manually recorded ignition and extinguish times to catch transcription errors before audits.

6. Perform the silver foil calibration test (melting at 960°C) monthly, regardless of interface type, to verify the thermocouple has not degraded from repeated thermal shock.

For facilities utilizing traditional equipment, ensuring key-stroke models meet modern audit requirements presents a different set of challenges. The primary risk is manual data entry leading to transcription errors, which can result in failed compliance audits or disputed test results. By implementing the secondary digital timers and dual-sign-off procedures listed above, labs can bridge the gap between mechanical control and digital traceability without replacing the entire machine.

Conclusion

The decision between a key-stroke and a touch screen interface ultimately dictates how your laboratory interacts with its testing hardware on a daily basis. Neither control method is universally superior; the choice depends entirely on the intersection of your specific lab environment, throughput requirements, and data management needs. A rugged mechanical setup excels in durability and simplicity, while a digital setup excels in precision, automation, and traceability.

When shortlisting equipment, opt for a key-stroke model if your facility prioritizes rugged durability and operation by technicians wearing heavy personal protective equipment. Conversely, opt for a touch screen model if your laboratory prioritizes automated repeatability, requires comprehensive digital audit trails, and frequently switches between complex, multi-material testing profiles.

To move forward with your procurement process, take the following actionable steps:

• Request sample digital test reports from manufacturers to verify that the automated data export formats align with your internal quality management software.

• Verify the availability and lead times of replacement parts, specifically asking about spare HMI panels versus standard mechanical switches.

• Confirm with the manufacturer that the specific model's timing automation and carriage movement strictly align with your target IEC, UL, or DIN standards.

• Assess your laboratory's ventilation system to ensure corrosive gases will be adequately extracted away from whichever control interface you select.

FAQ

Q: What is a glow wire test apparatus used for?

A: It is a thermal testing device used to evaluate the fire resistance and ignition propensity of insulating materials, solid plastics, and finished products. It simulates the thermal stress caused by a heated element or overloaded resistor in electrical components.

Q: Does a touch screen glow wire tester improve IEC 60695 compliance?

A: While both interfaces can achieve compliance, a touch screen model often features PLC-driven automation that improves the repeatability of specimen application times and carriage retraction, significantly reducing human error during the critical 30-second contact phase.

Q: Can key-stroke flame retardant test machines export data?

A: Generally, traditional key-stroke models do not feature native digital data export. Operators must manually record temperature and timing data on clipboards, though some hybrid models may offer basic RS-232 outputs for external temperature logging.

Q: How often should the control interface of a glow wire tester be calibrated?

A: Regardless of the interface, the underlying thermocouples, timers, and dimensional mechanics should be calibrated annually by an accredited body. Labs should also perform monthly in-house verifications using the standard silver foil melting method at 960°C.

Q: Are touch screens on flammability testers resistant to lab chemicals?

A: Industrial-grade HMIs are typically sealed against dust and moisture, often carrying an IP65 rating. However, they remain vulnerable to prolonged exposure to acidic off-gassing from burning plastics if the control unit is not properly isolated from the test chamber exhaust.
