Product Description

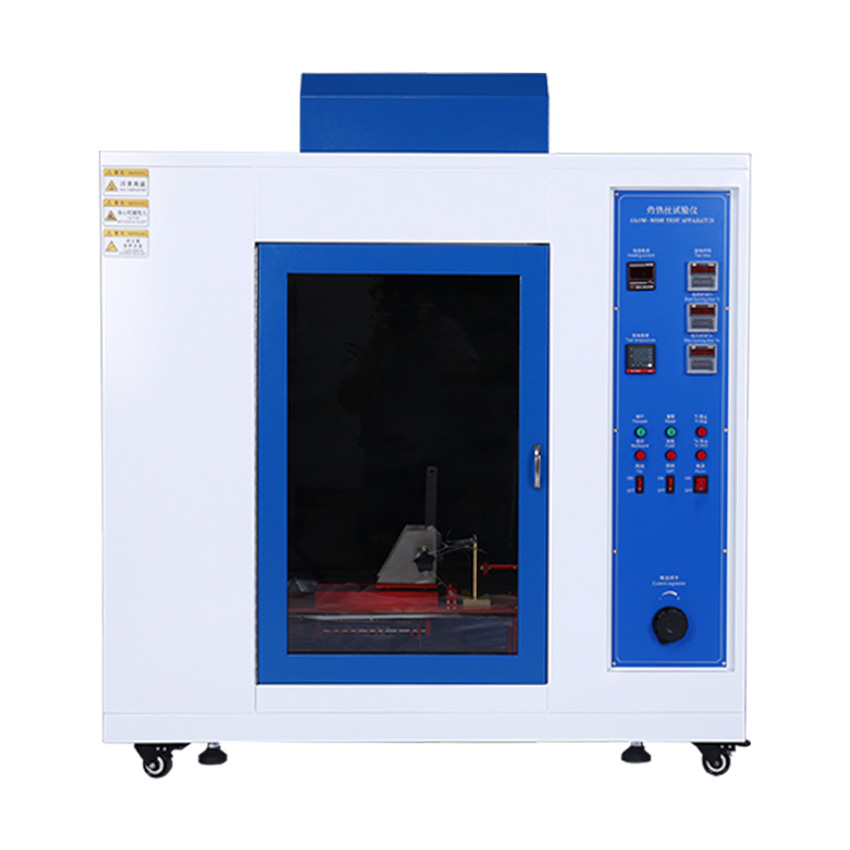

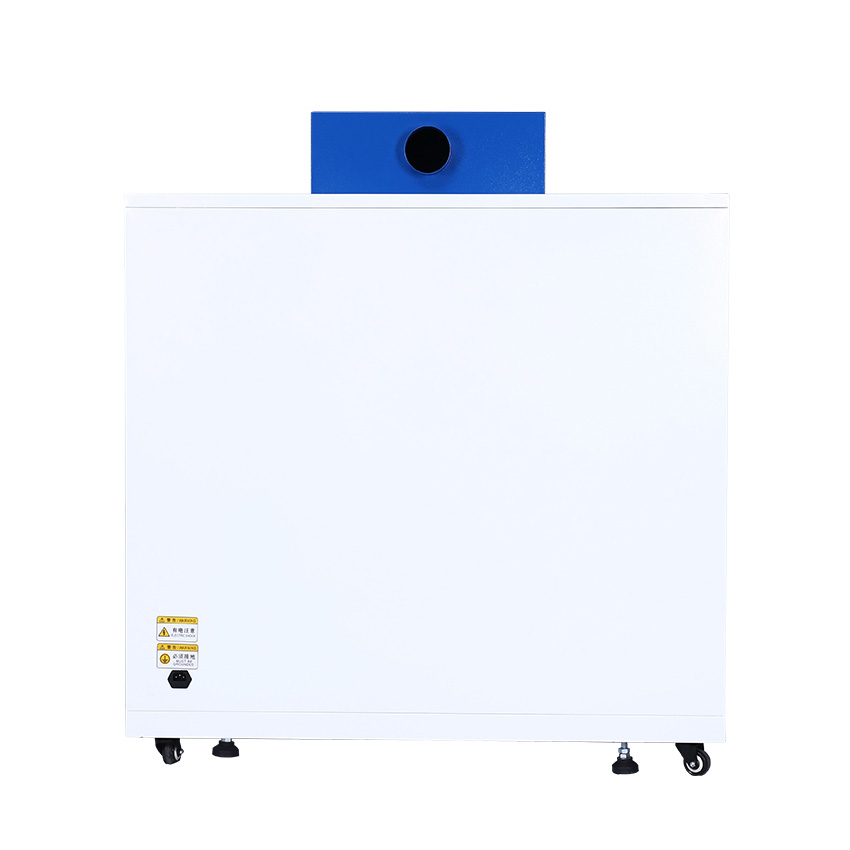

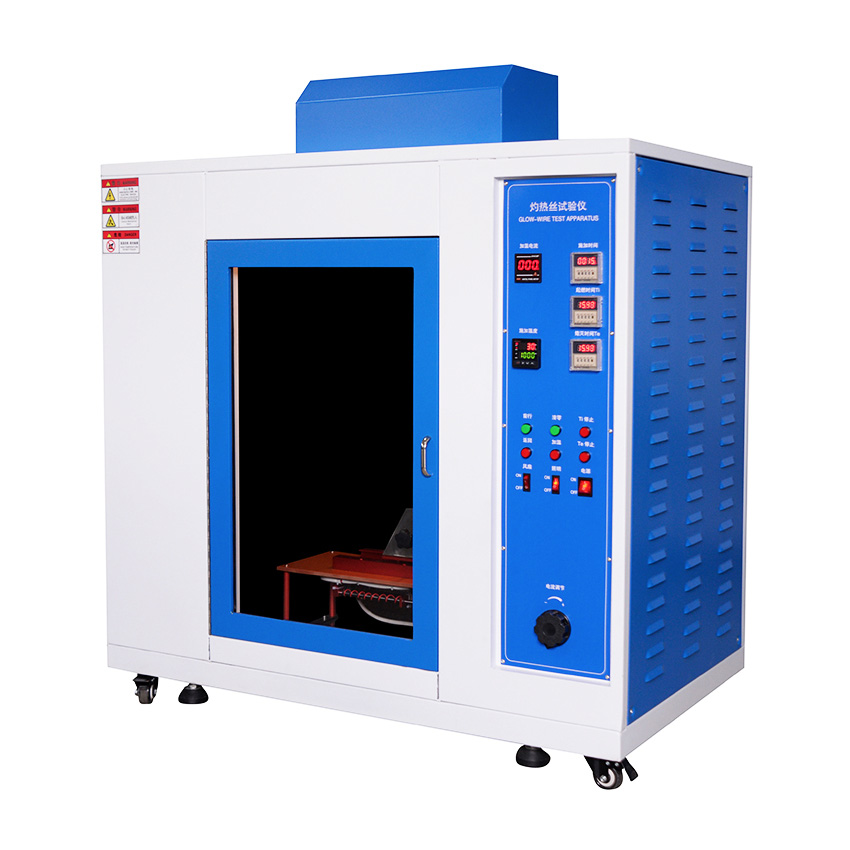

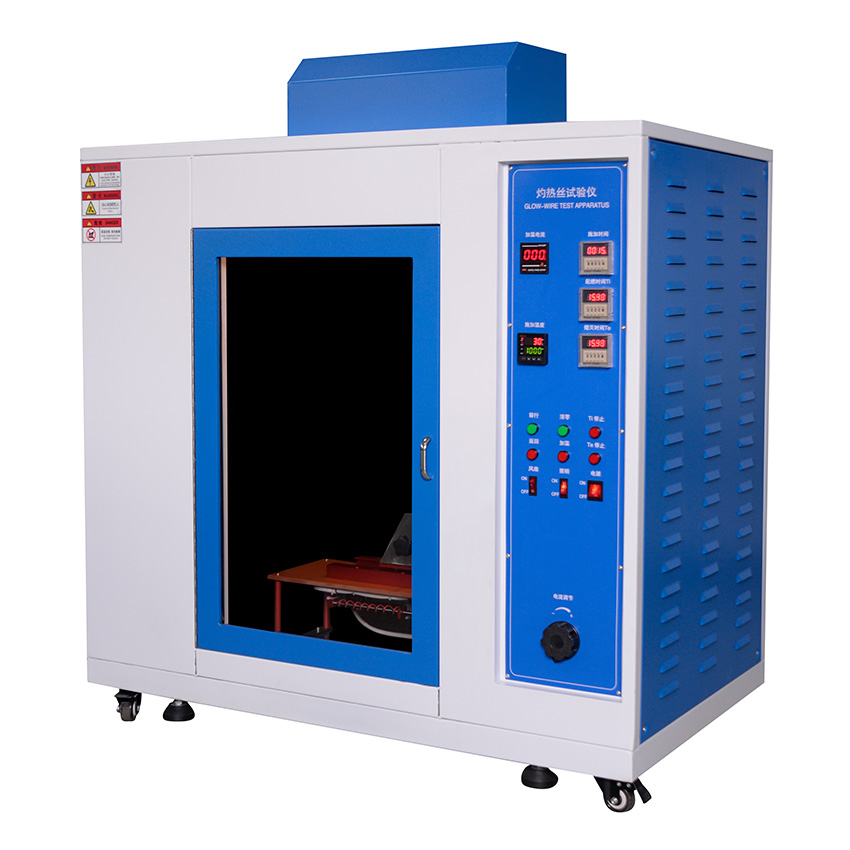

Key Stroke Glow-Wire Test Machine
Model: GC-ZRS-A
Glow Wire Tester: Comprehensive Fire Hazard Evaluation for Materials
A. Product Introduction
The Glow Wire Tester is an essential apparatus for assessing the fire hazard potential of materials used in electrical and electronic equipment. It accurately simulates, under controlled laboratory conditions, the severe thermal stress imposed by overheating or faulty components—such as glowing elements, overloaded resistors, or poor electrical connections—in the event of short-circuit or overload failures.
This simulation is critical for evaluating a material's resistance to ignition, flame persistence, and its ability to prevent the spread of fire. By applying a precisely heated glow wire to the test specimen under a defined force, the apparatus provides a reliable and reproducible method for determining material behavior under extreme thermal stress.
B. Test Standards
IEC60695-2-10/11/12/13 Fire hazard test methods for electronic and electrical products
IEC60884-1-2002 Plug sockets for home and similar purposes
GB2099.1-2008 Plug sockets for home and similar purposes
IEC60335-1 Safety of household appliances and similar appliances
GB4706.1-2005 Safety of household appliances and similar appliances
VDE0620-2010 General requirements for household and similar plugs and sockets
GB/T5169.10-11-2006 Glow wire device and general test method
C. Specifications
Model | GC-ZRS-A |
Control mode | Keystroke control |
Outer box dimensions | 110*650*125(cm) |

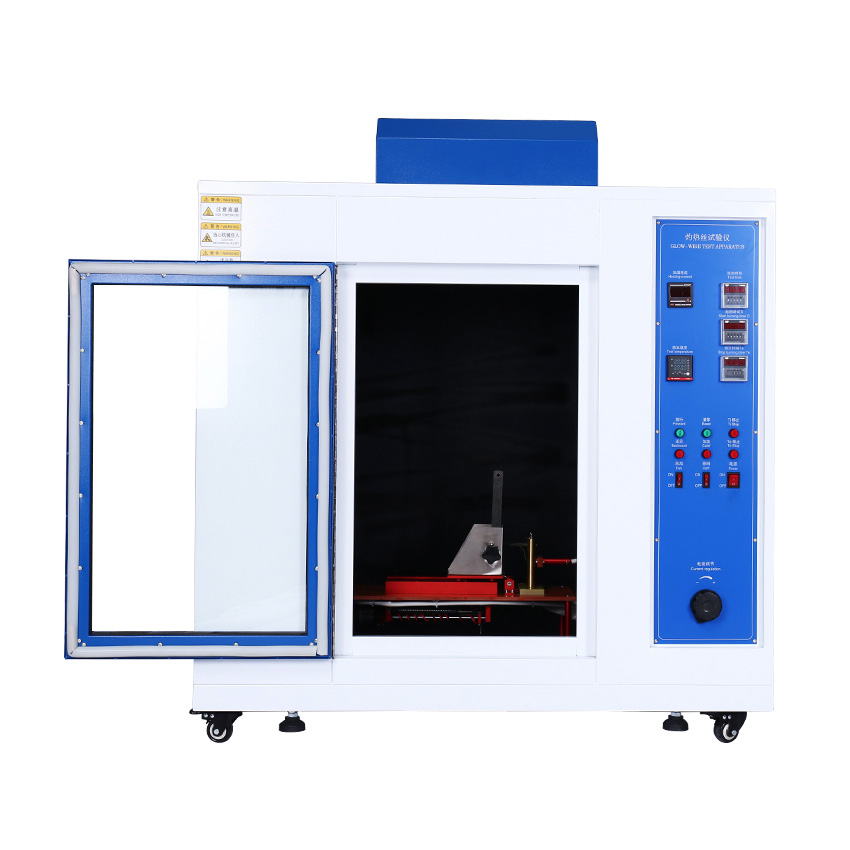

Box volume | ≥0.5m³，With glass observation door |
Timer | 0-99 minutes and 99 seconds can be set, accuracy ±0.1 second |
Glow wire temperature | Adjustable from room temperature to 1100℃ |
Thermometer | Intelligent temperature controller with accuracy of ±0.1℃ |
Thermocouple | 1.0mm nickel-chromium armored (K type) imported thermocouple |
Temperature tolerance error | 500~750℃±5℃；750~960℃±10℃ |
The force exerted by the glow wire on the sample | 1.0±0.2N，The depth is 7mm±0.5mm |
Glow wire U-shaped head | 4mm imported nickel/chromium (80/20) wire |
Glow wire moving speed | 10mm/s-25mm/s |
Power | AC220V, 50Hz |
D. Key Features & Benefits
Easy Operation: Simple key stroke control allows for quick setup and highly repeatable testing procedures.
Compliant: Designed to meet global test standards like IEC 60695-2-10 for reliable certification.
Ideal For: Testing a wide range of plastic and insulating materials used in:
Switch and socket housings
Relay and connector components
Enclosures for household appliances and electronic devices
 |  |
