Product Description

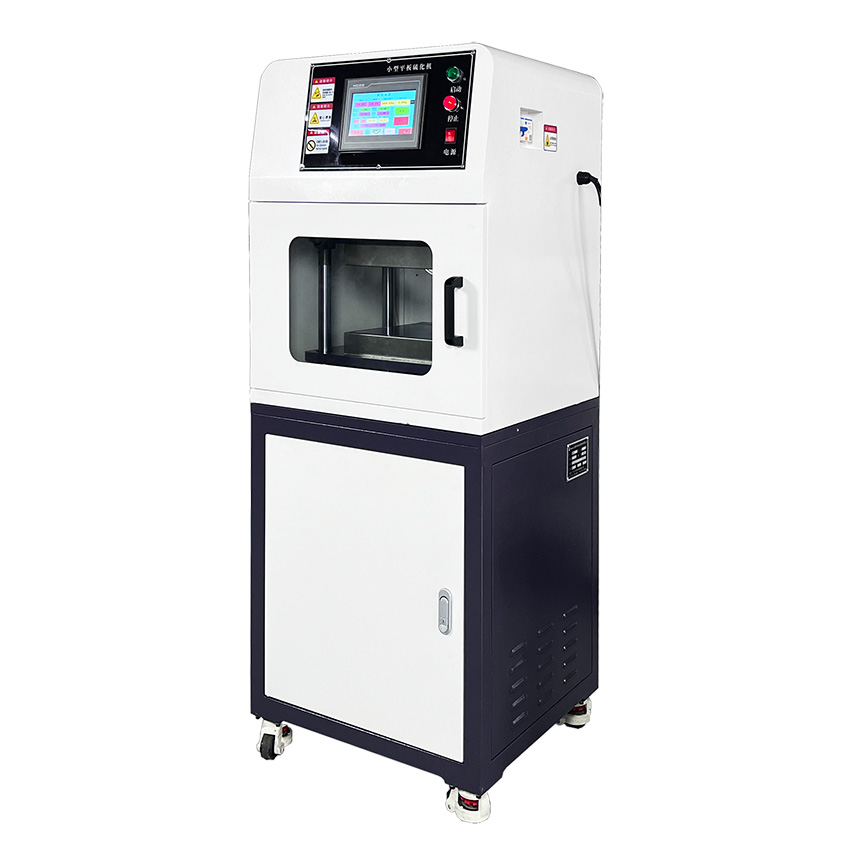

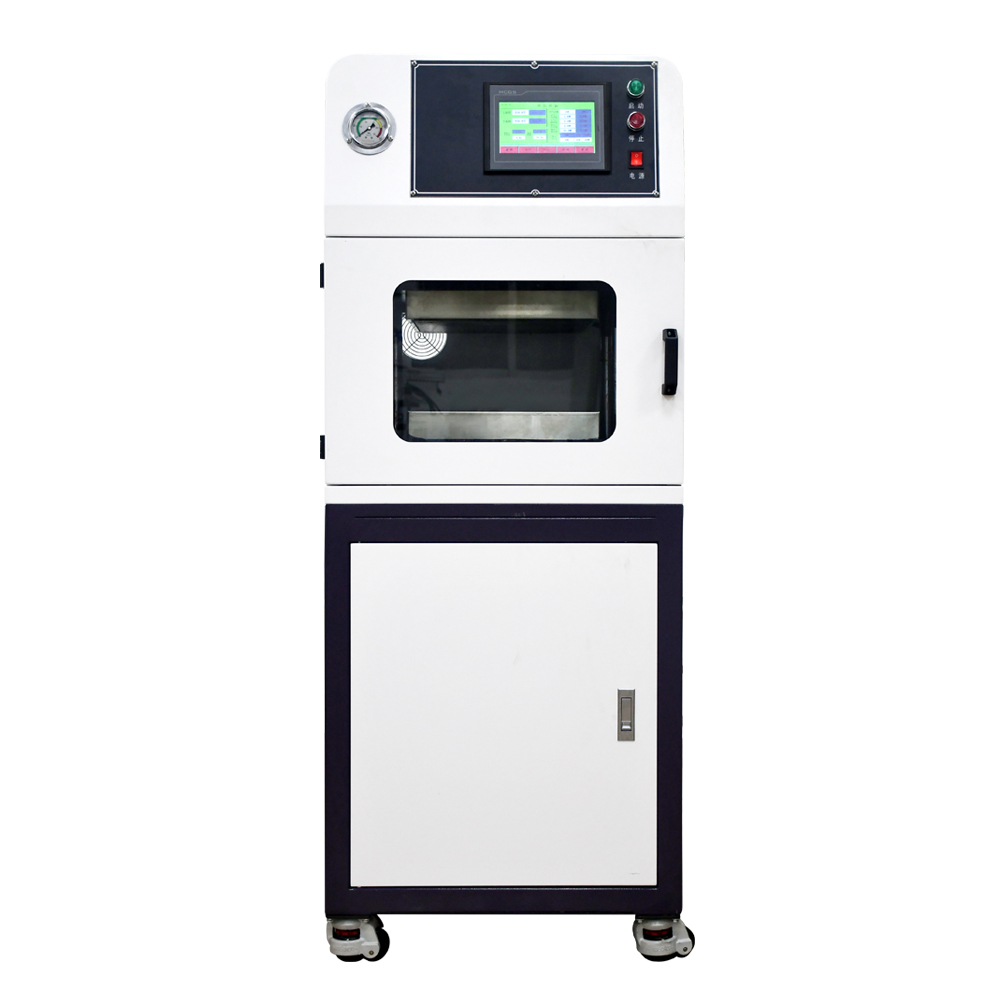

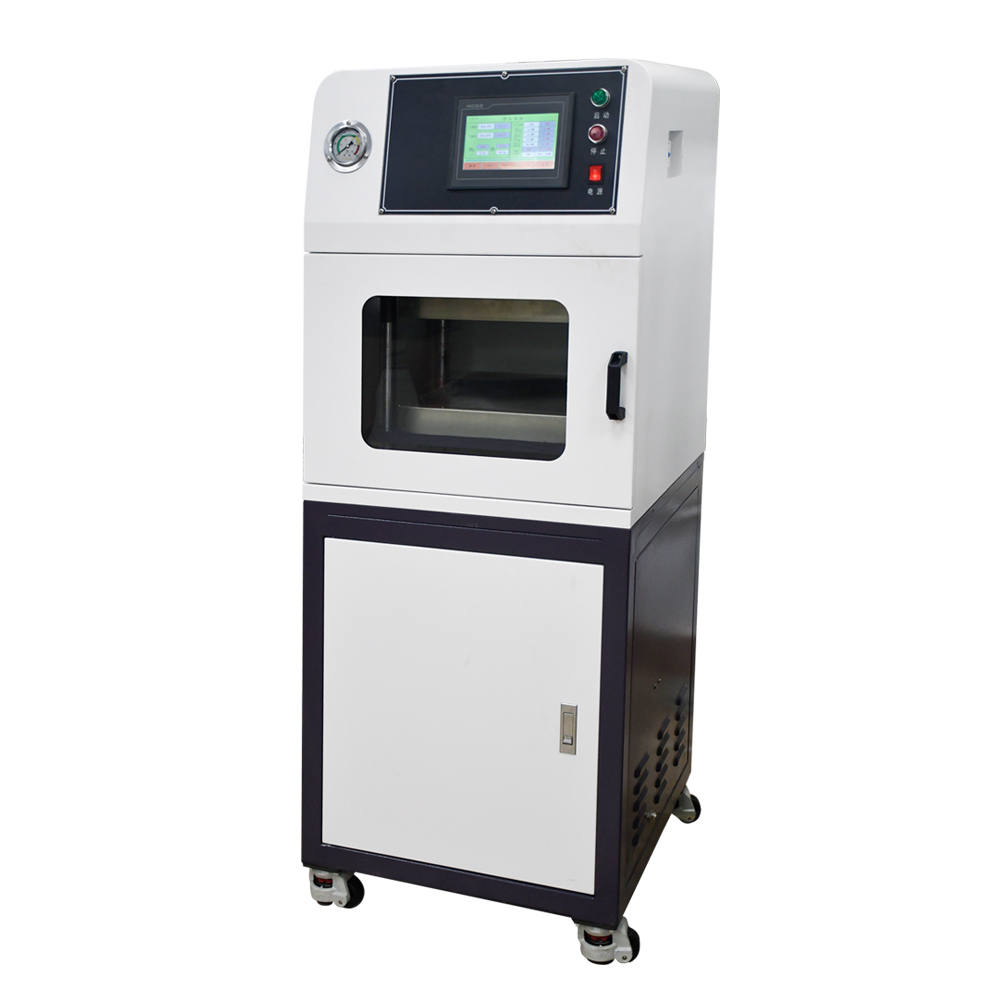

Penumatic Tablet Press Machine
Features:
It is suitable for the production and use of thermoforming, vulcanization sample preparation , and press-in products. For example: membrane switch, speaker film and other concave-convex hot stamping molding, thermal bonding and crimping of thin films, crimping and molding of electrical products, etc., especially suitable for plastic products, trademarks, epoxy products, electronics, packaging and printing, textile factories Special machinery for molding, press-fitting and assembling of various products.
Scope of application:
*Hot stamping of concave and convex surfaces such as membrane switch and horn film;
*Plastic granule pressure sheet test, thin film thermal bonding crimping;
*Suitable for the production and use of large-area thermoformed products.
Features:
* Four-column and three-plate steel structure is adopted, the movable plate is parallel to the working surface and the four-column is matched with precision guide bushing, so the precision is high;
*Pressure, stroke, speed, pressure holding time, etc. can be adjusted according to the requirements of the pressing process;
* The temperature of the upper and lower heating plates is controlled separately, using RKC intelligent temperature controller, the temperature control is accurate ± 1 ℃;
*Taiwan brand air pressure, electrical components and Japanese NOK seals are used, which are durable;
* Two-handed operation, with an emergency stop button, easy to install and adjust the mold, high safety;
*There are casters and foot cup holders under the workbench, which are easy to move, labor-saving and efficient;
* Optional safety photoelectric protection device, humanized, safer work;
*Special requirements such as non-standard table size and large pressure models can be customized.
Working method: electric heating. Heating method: electric heating.
Model | unit | |
Machine capacity | ton | 10 |
Cylinder pressure | kg/cm2 | Within 8KG |
Platen area | mm | 300*300 |
Platen flatness | mm | 0.03mm |
Maximum stroke | mm | 150 |
Opening height | mm | 150 |
Heating time | min | 0-30 |
Temperature range | ℃ | Room temperature -250±1 |
Uniform temperature | ℃ | ±1.5 |
Electric heating tube power | kw | 4.8 |
Motor Power | kw | 1.5 |
Using electric | V | 220 |
Weight (reference) | kg | 80 |
