Product Description

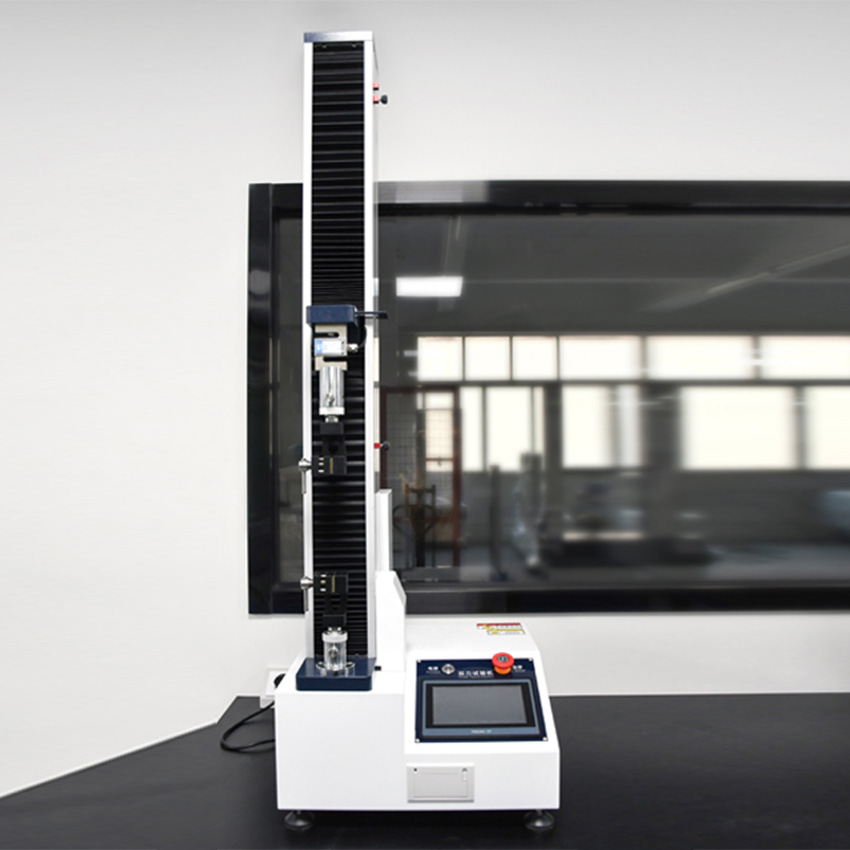

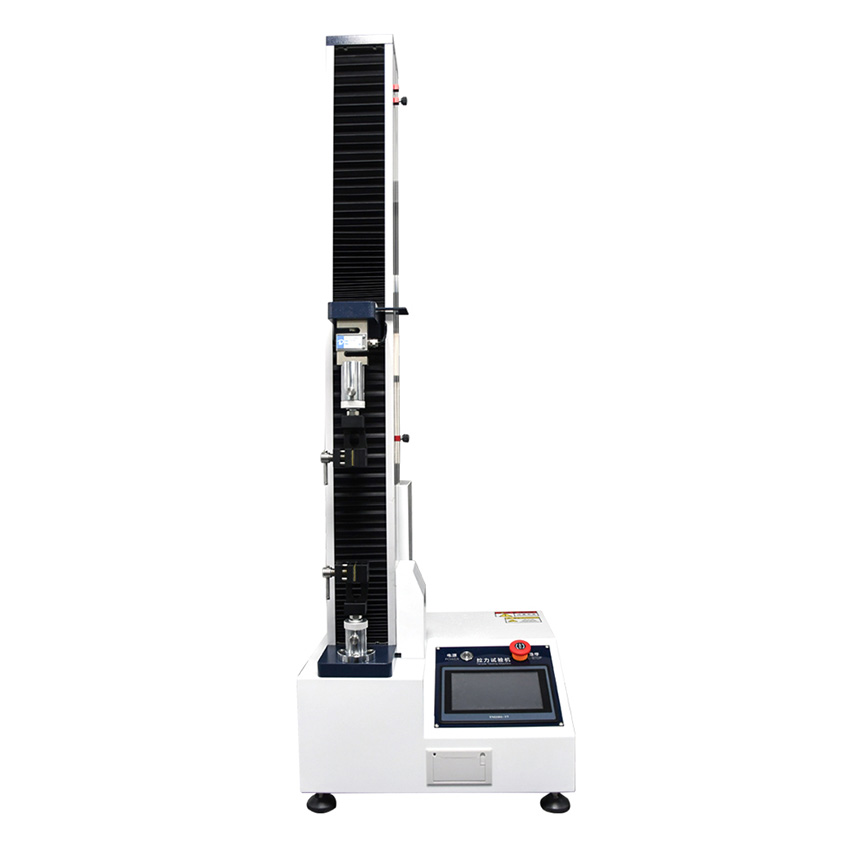

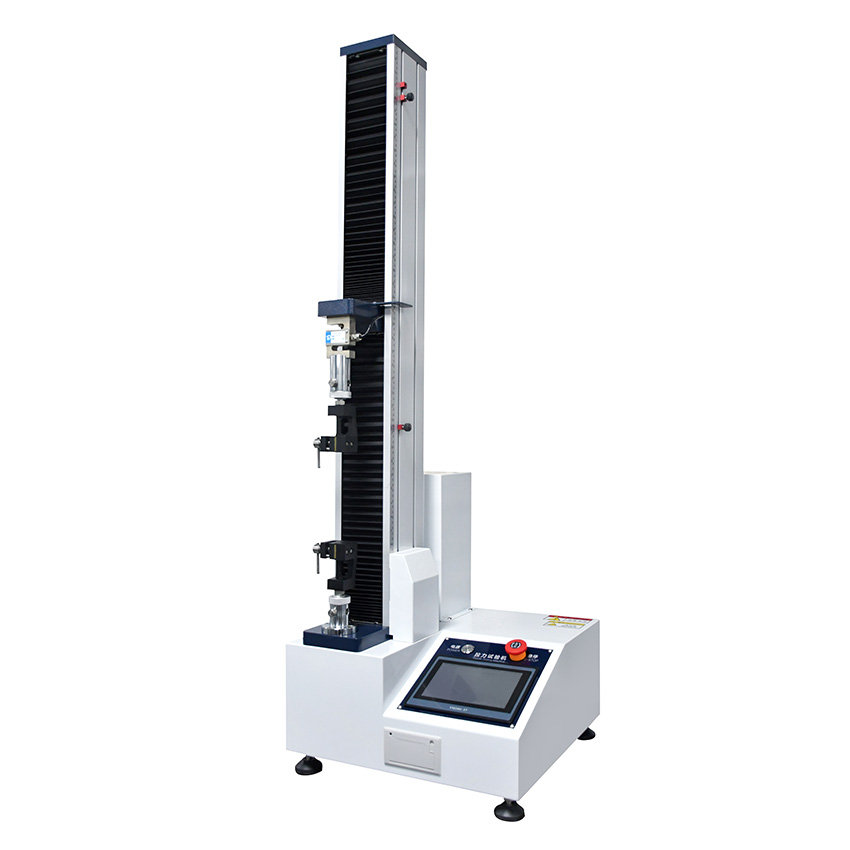

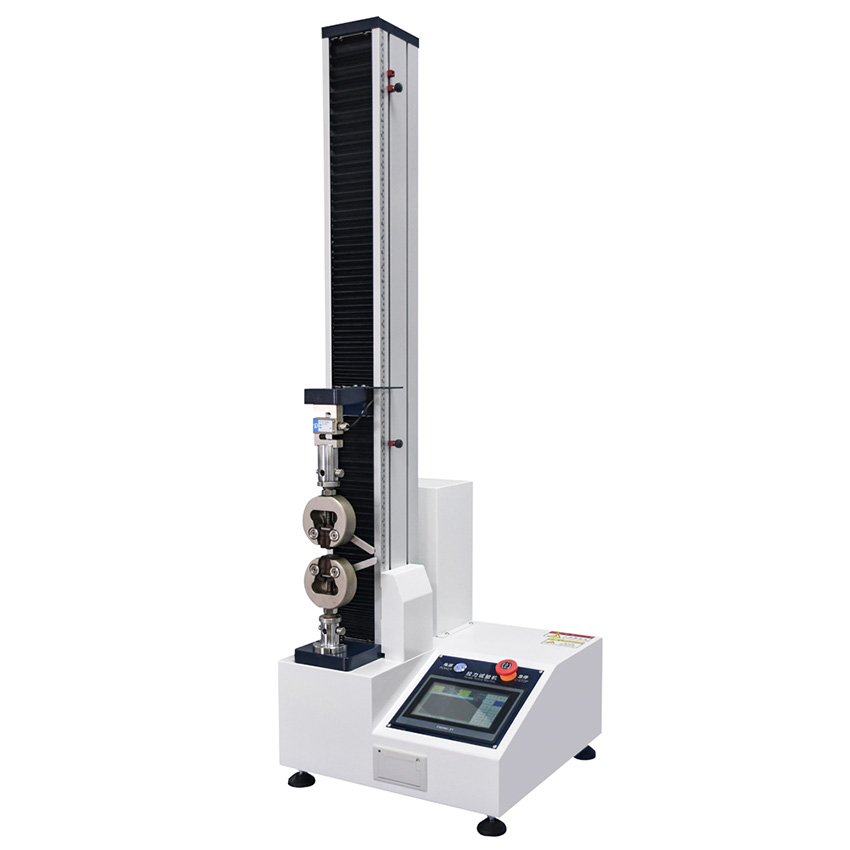

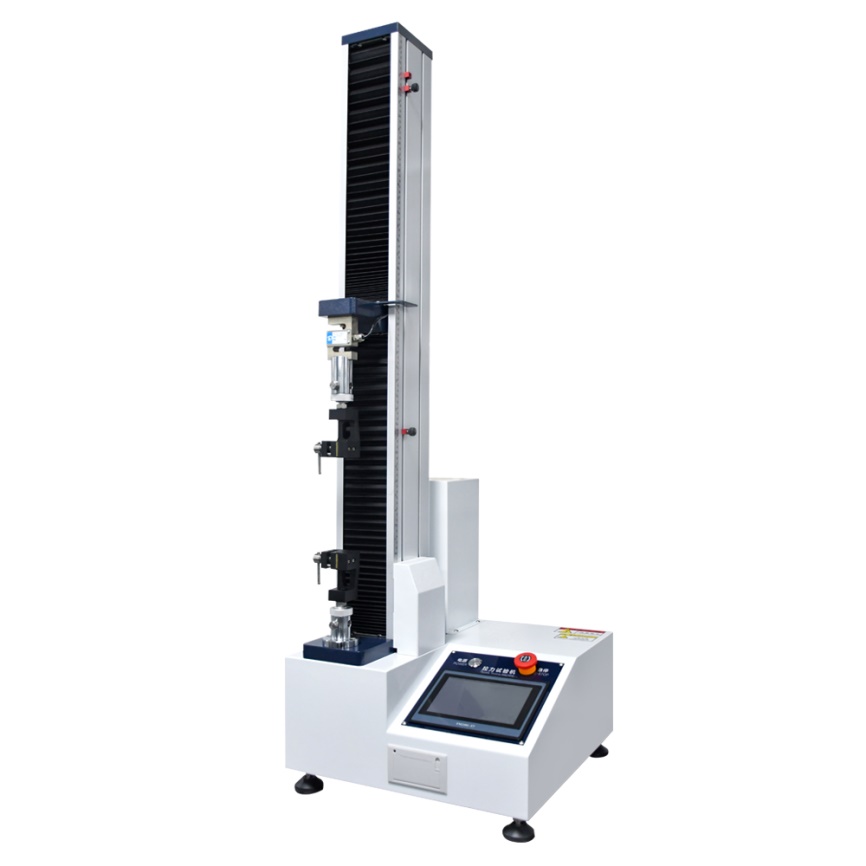

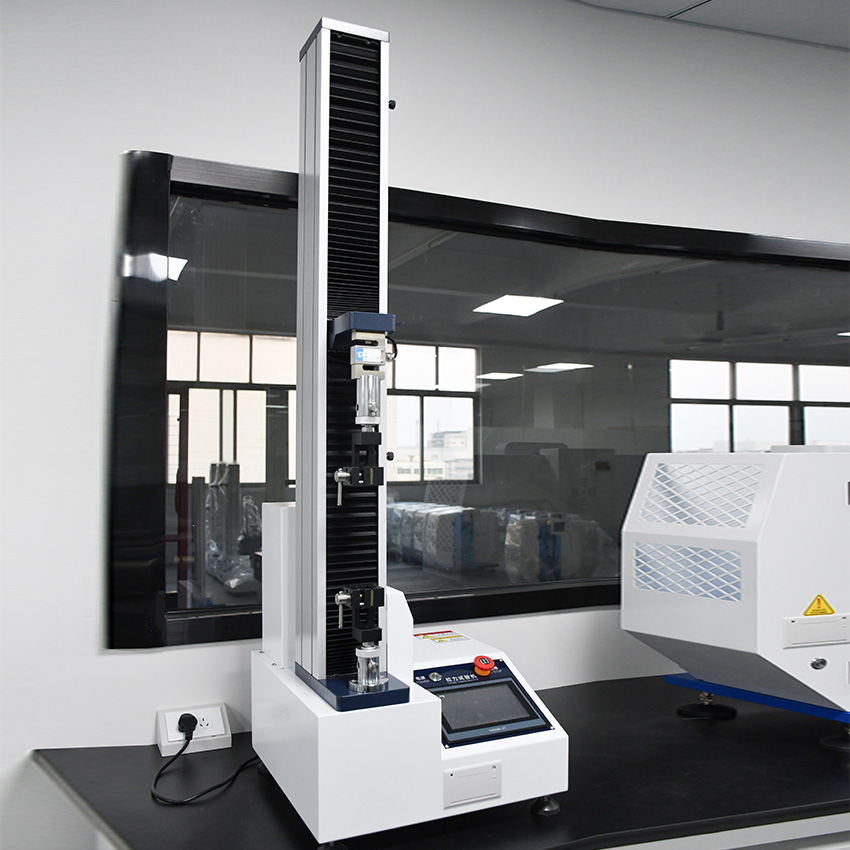

Touch Screen universal test machine
Model: GC-WD-200D
1. Product introduction
The 200N tensile testing machine is suitable for testing the mechanical properties of a variety of materials, including plastic film, rubber sheet, and paper. It features easy operation, high measurement accuracy, and excellent safety. It can perform mechanical property tests such as stretching, peeling, heat sealing, and tearing, and can conduct tests according to various domestic and international standards, including GB8808 and ASTM D882. The tensile machine is widely used in product quality control for companies producing plastic film and food, as well as in scientific research and teaching experiments in testing institutions and schools.
2. Product Advantage
Operating system: The touch screen type tensile machine does not need to be equipped with a computer, the operation is simple, and the floor space is small.
Motor reducer: The motor can be selected according to your needs, such as Japanese Panasonic servomotor/Taiwan Delta/Taiwan Shihlin and other brands, with low failure rate, low noise and more precise control.
Sensor : American Transcell sensor, brand high-precision force sensor, accurate measurement, stable performance
3. Test Standard:
GB/T 1040-2006 | Tensile Properties Test Methods |
GB/T 1041-2008 | Test method for compression properties of plastics |
GB/T 9341-2008 | Test method for flexural properties of plastics |
IS0 527-1993 | Determination of tensile properties of plastics |
GB/T 13022-91 | Plastic film tensile test method |
ISO 604-2002 | Plastics - Determination of Compression |
ISO 178-2004 | Plastic bending determination |
ASTM D 638-2008 | Standard Test Method for Tensile Properties of Plastics |
4. Technical Parameter:
• Load cell: 200kg (2KN)
• Strength Resolution: 1/300000
• Strength accuracy: ≤0.5%
• Power magnification: 7-segment automatic switching
• Displacement resolution: 1/1000MM
• Displacement accuracy: ≤1%
• Speed range: 50-500mm/min (special test speed can also be customized according to customer needs).
• Test stroke: 700mm (excluding gripper, special test space can also be customized according to customer needs)
• Power supply: ∮220V 50HZ.
• Power: about 1000W
• Machine size: about 460×450×1380 mm (length×width×height)
• Machine weight:about 80kg
5. Parameter configuration:
• High-precision force sensor:2000N. The force accuracy is within ±0.5%.
• Full strength maximum resolution 1/1000,000
• Capacity segmentation: seven gears in the whole process: ×1, ×2, ×5, ×10, ×20, ×50, ×100
• Adopt high precision 24 bits A/D
• Power system: servo motor + Japanese planetary reducer + Taiwan rolling stone ball screw + polished rod linear bearing + high precision sensor.
• The speed control system adopts AC servo speed control system and AC servo motor, with stable and reliable performance, and has protection devices such as overcurrent, overvoltage and overload.
• Control system: Pulse Command control method is adopted to make the control more precise. The speed control range is 0.01~500 mm/min.
• Data transmission mode: RS232 transmission
• Display mode:7-inch touch screen display
• Safety devices: overload emergency shutdown device, upper and lower travel limiting device, leakage automatic power-off system, automatic breakpoint shutdown
