Product Description
Melt Flow Index Tester
A. Product description：
It is used to determine the MFR value of the melt flow rate through the standard die every 10 minutes when various plastics and gums pass through a certain temperature and load in a viscous flow state. It is suitble for melting high temperature polycarbonate, polysulfoxide, fluorine plastics, nylon and other engineering plastics. Also, it is appropriate for the polyformaldehyde, polystrene, polypropylene, ABS resin polyformaldehyde, polycarbonate resin and other low temperature plastic melting test. The machine is widely used in plastic production, plastic products, petrochemical and other industries as well as related universities, scientific research units and commodity inspection departments.
B. Test standards
· GB-T3682-2018 Determination of melt flow rate and melt volume flow rate for thermoplastics
· ISO1133: 1997 Determination of melt mass flow rate MFR and melt volume flow rate MVR for thermoplastics
· ASTM D1238 Standard test method for determination of flow rate of thermoplastics melt by extruded plastimeters
C. Product advantages：
1. The heating cylinder is made up of 304 stainless steel or alloy, for the reason that in high temperature metal material is easily oxidation rust while the melting flow index tester usually performs long-time work at high temperature(up to 400~500 degrees).
2. The melting flow index rate instrument is equipped with dual sensor configuration to get precise temperature control and better temperature gradient so that the instrument can work longer.
3. According to the national standard, function that four minute countdown after feeding is added in the machine.
4. The RS232 interface is available to be connected to the computer to output data(optional).
5. The last test conditions can be directly displayed after boot-strap to avoid users resetting test parameters each time ,reducing the workload of the operators.
6. The maximum temperature can be up to 450~500℃。（optional, special instructions when ordering）.
7. After long time test of strong corrosive plastic such as full fluorine plastic, the accuracy of the instrument is non-destructive.
8. Meeting standards：ISO 1133, ASTM D1238, GB/T3682
D. Product advantage：
1、fast heating speed，minimal overshoot
2、high precision of constant temperature
3、A constant temperature can be quickly restored after packing .
4、Test parameter calibration and correction is convenient.
5、Manual and automatic cutting test methods are optional.

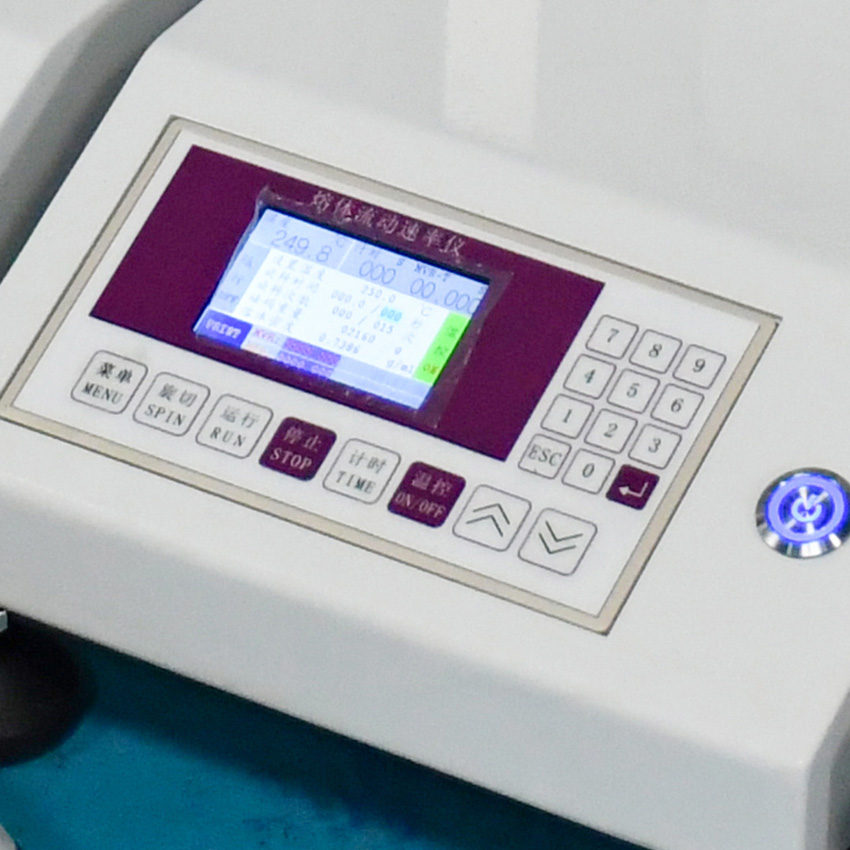

6、The instrument is equipped with LCD working platform.
7、The test results are automatically printed putout equipped with a printer.
E. Specifications :
Items | Melt flow index |
Temperature Range | RT-400℃ |
Temperature drift | 4hour， ≤0.5℃ |
Display Device | Keystroke controlled |
Temperature fluctuation | ± 0.2℃ |
Temperature uniformity of 10mm-70mm above the die | ± 1℃ |
Temperature display resolution | 0.1℃ |
Time display resolution | 0.1S |
Cutting timing range | 1-999S adjustable |
Mouth mold diameter | Φ2.095±0.005mm ( Mouth Radius : 1.05 mm + 0.005 ) |
Discharge hole length | 8.000 ± 0.025mm |
Piston rod diameter | 9.474 ± 0.007mm |
Piston rod length | 6.35 ± 0.13mm |
Loading container diameter | Φ9.550 ± 0.007mm |
Test range | 0.1-150g / 10min |
Farmar precision | ± 0.5% |
Displacement measuring encoder | Omron photoelectric rotary encoder |
Testing scope of mass method | 0.1-150g /10min |
Output way | Micro automatic printout |
Blanking way | Hand automatic cutting can be switched |
Test farmar ( weights) | total 8 grades, 8 sets of weights |
Power supply | AC220V±10% 50HZ |

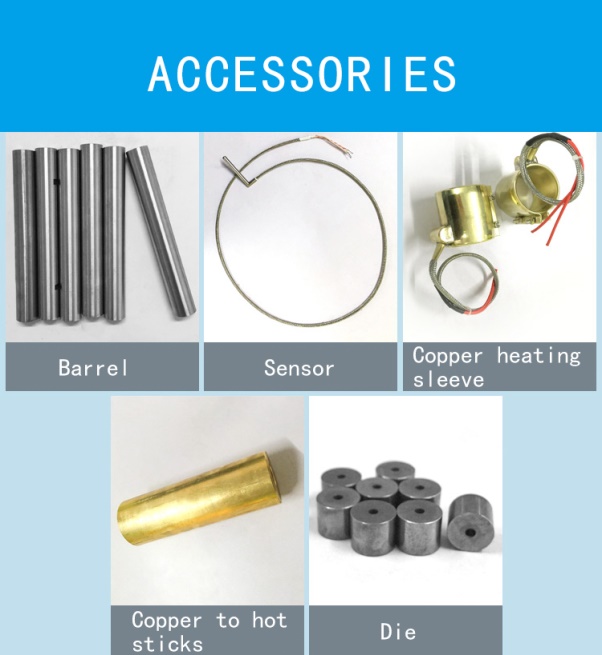

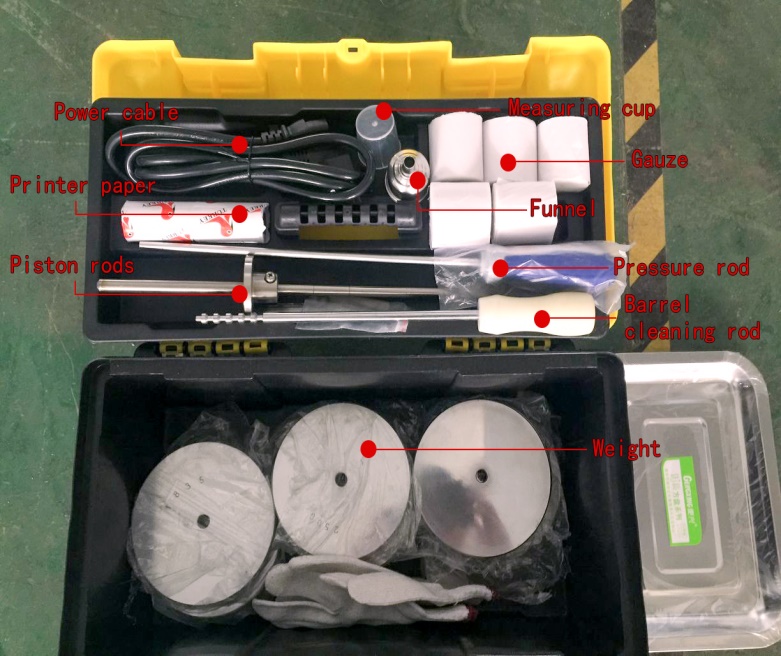

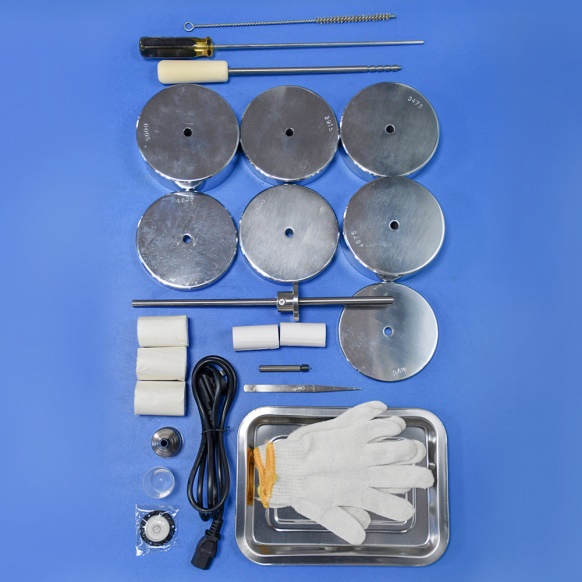

F. Accessory
No. | Name | Unit | Quantity | Remark |
1 | counterweight | Set | 1 | 0.325㎏、1.2㎏、2.16㎏、3.8㎏、5.0㎏、10.0㎏、12.5、21.6k g（in a load within） |
2 | counterweight tray | Set | 1 | in a load within |
3 | charging hopper | Set | 1 | |
4 | die cleaning load | Set | 1 | |
5 | loader bar | Set | 1 | |
6 | barrel cleaning load | Set | 1 | assemblies |
7 | rod | Set | 1 | （in a load within） |
8 | die | Set | 1 | |
9 | gauze | Roll | 2 | |
10 | printer paper | Roll | 2 |

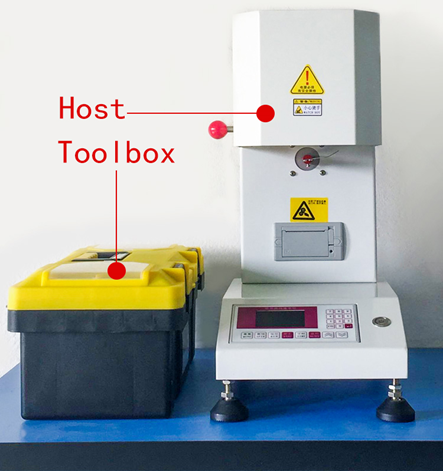

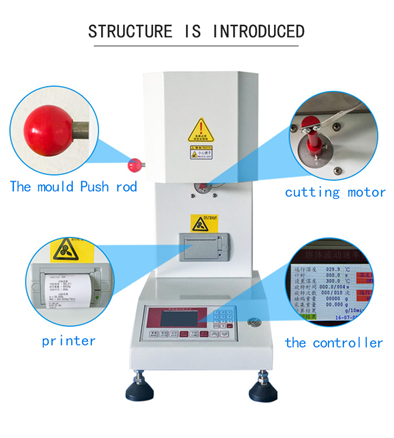

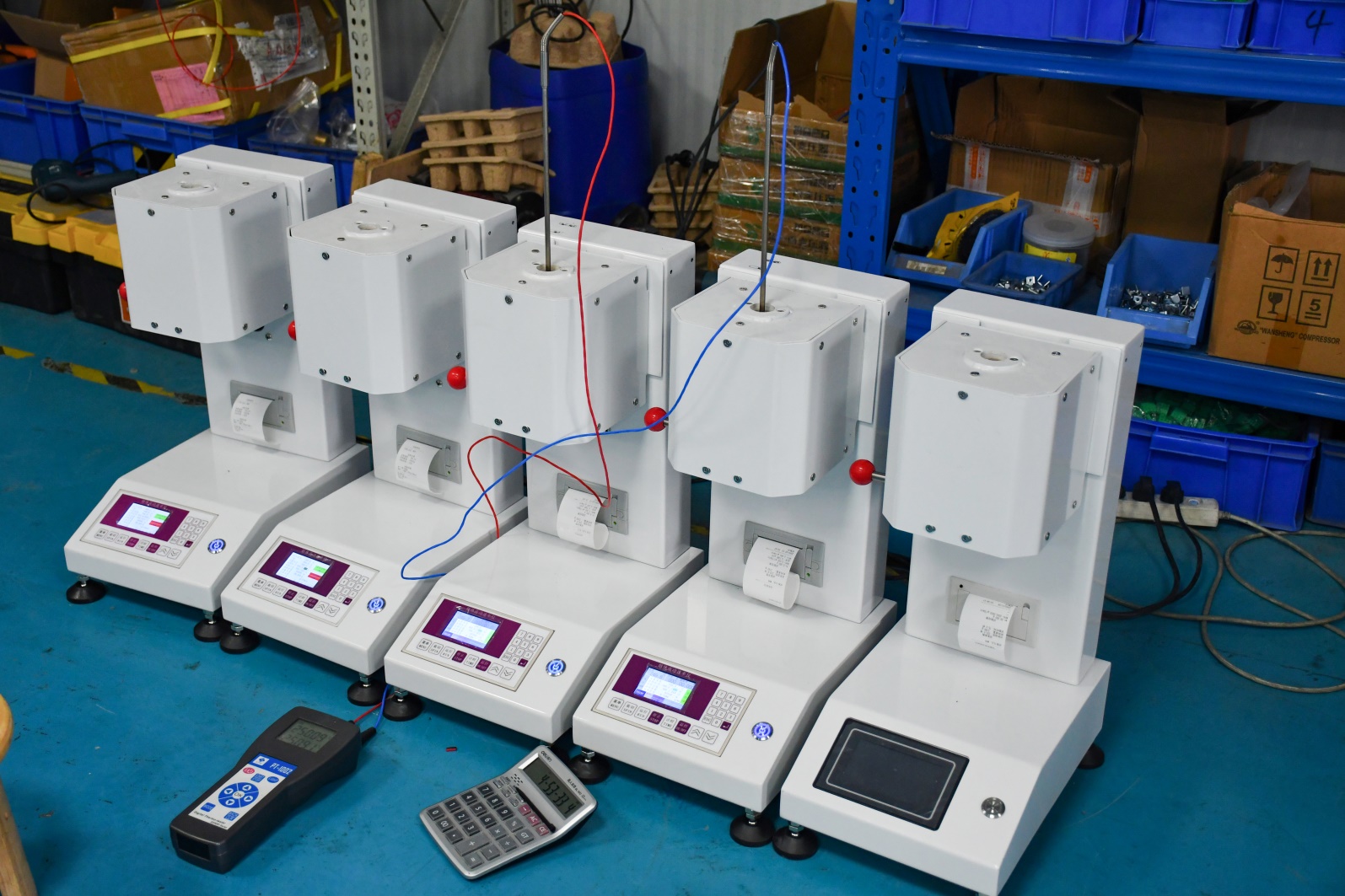

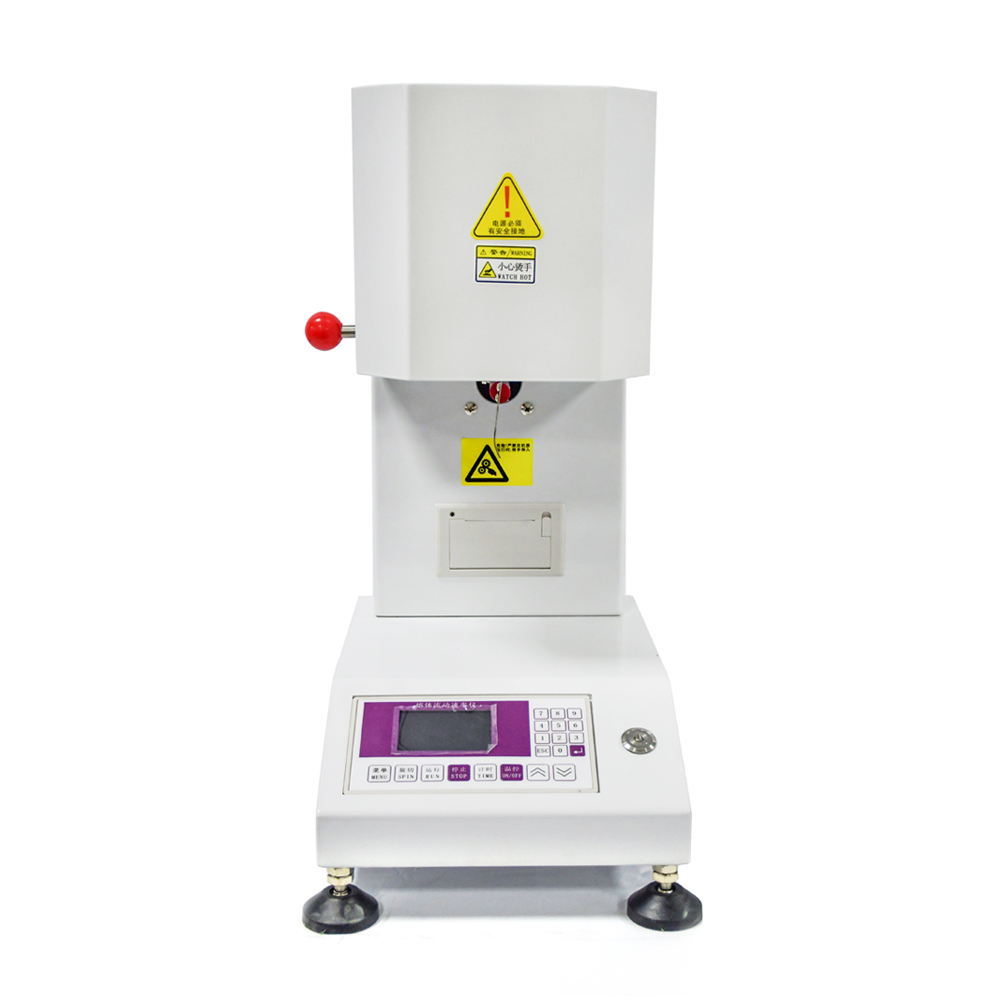

G. Illustration
