Product Description

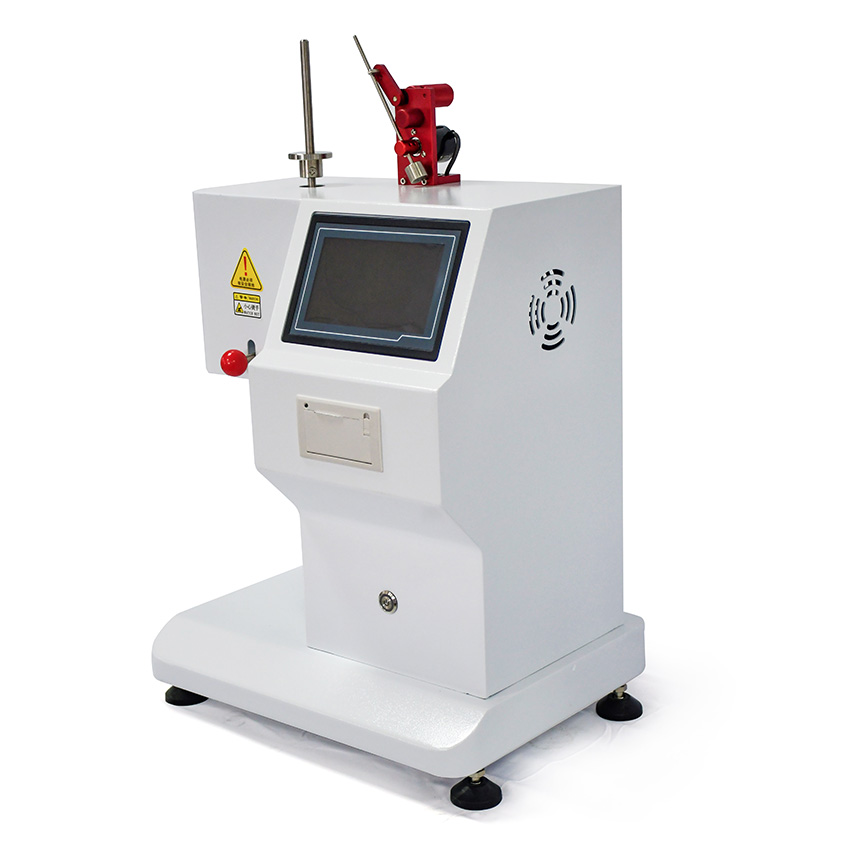

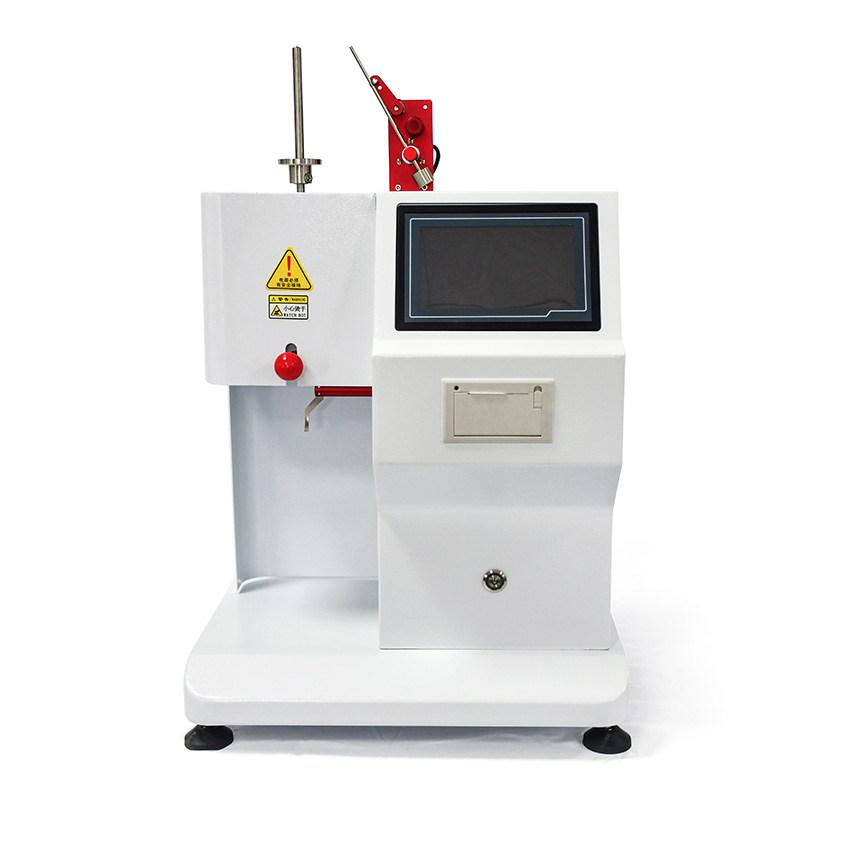

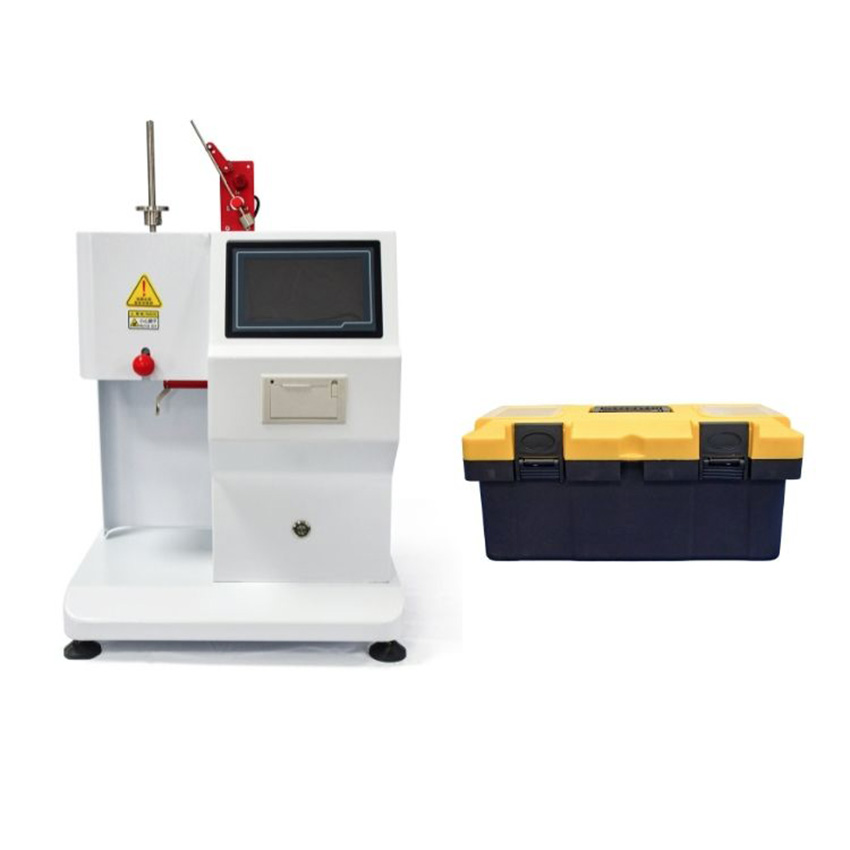

Touch Screen Melt Flow Index Tester
A. Product introduction
Melt flow testing equipment is used to measure the melt flow rate (MFR) of thermoplastics. It mainly reflects the fluidity of plastics in the molten state and is an important indicator for evaluating the processing performance of plastics. Its widely used in plastic production, scientific research, quality inspection and other fields. It can quickly evaluate the molecular weight and distribution of plastics, providing an important basis for plastic formulation design, processing technology optimization and product quality control.
B. Test standards
·GB-T3682-2018 Determination of melt flow rate and melt volume flow rate for thermoplastics
·ISO1133: 1997 Determination of melt mass flow rate MFR and melt volume flow rate MVR for thermoplastics
·ASTM D1238 Standard test method for determination of flow rate of thermoplastics melt by extruded plastimeters
C. Advantage:
Excellent material performance: Our plastic mfi tester barrel is imported Harborite nitriding treatment, the mouth mold is made of carbon tungsten steel material, material . The insulation bucket is made of whole SUS304 stainless steel, which will not rust at high temperature for a long time.
Friendly operation interface: Our digital display melt flow index equipped with high-precision touch screen controller, such as 7-inch touch screen, with Chinese and English multi-language operation interface, can store and print the latest test conditions and data, easy and intuitive operation.
Convenient data processing: Mfi machine built-in micro printer to print test data. Reserved RS232 interface or USB interface to connect to computer, set test conditions, print and store data through software.
Strong standard adaptability: MFI Tester are complies with the requirements of GB/T3682-2000 standard, and its main parameters also meet the standards of ISO1133-97, ASTM1238, JIS, etc. It can be widely used in plastic production, scientific research units and commodity inspection departments, etc.
D. Specifications
Items | Melt flow indexer |
Temperature Range | 40℃-450℃ |
Temperature drift | 4hour， ≤0.5℃ |
Display Device | Touch screen controlled |
Temperature fluctuation | ± 0.2℃ |
Temperature uniformity of 10mm-70mm above the die | ± 1℃ |
Temperature display resolution | 0.1℃ |
Time display resolution | 0.1S |
Cutting timing range | 1-999S adjustable |
Mouth mold diameter | Φ2.095±0.005mm ( Mouth Radius : 1.05 mm + 0.005 ) |
Discharge hole length | 8.000 ± 0.025mm |
Piston rod diameter | 9.474 ± 0.007mm |
Piston rod length | 6.35 ± 0.13mm |
Loading container diameter | Φ9.550 ± 0.007mm |
Test range | 0.1-150g / 10min |
Farmar precision | ± 0.5% |
Stroke precision | 0.01mm |
Volume method timing accuracy | 0.001S |
Displacement measuring encoder | Omron photoelectric rotary encoder |
Testing scope of mass method | 0.1-150g /10min |
Test range by volumetric method | 50-5000cm³/10min （ It can measure up to 5000 cm3/10min by using the plugging die ） |
Output way | Micro automatic printout |
Blanking way | Hand automatic cutting can be switched |
Test farmar ( weights) | total 8 grades, 8 sets of weights |
Power supply | AC220V±10% 50HZ |

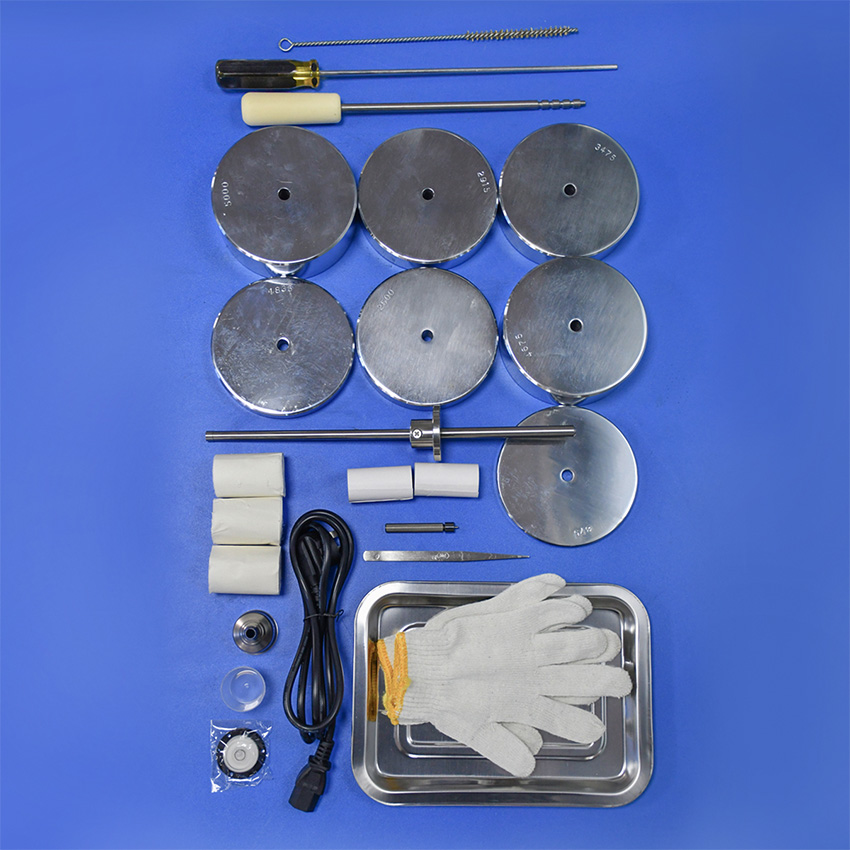

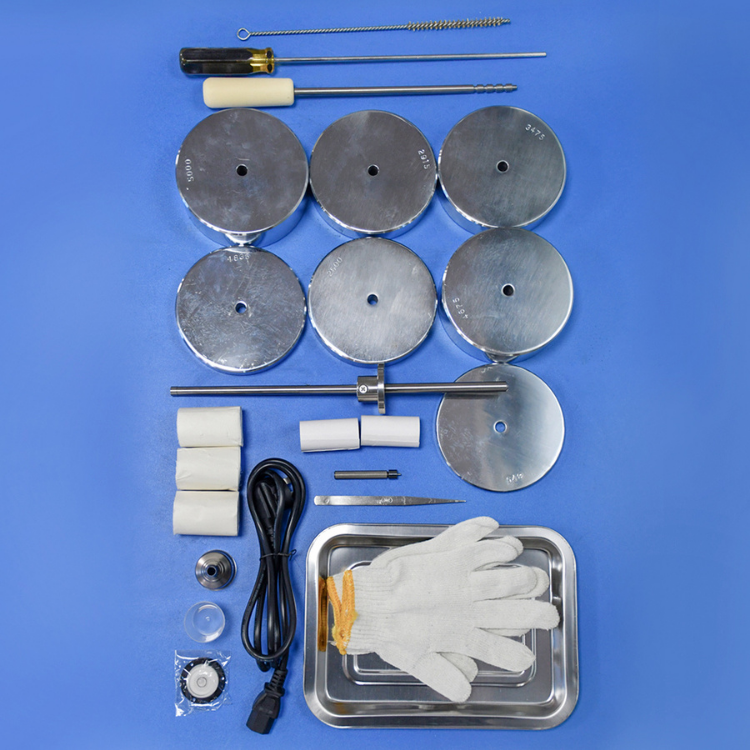

Mainly Accessories:
Farmars : 8grades
0.325 kg，1.200 kg，2.160 kg，3.800 kg
5.000 kg，10.000 kg，12.000 kg，21.6 kg
Farmar tray : 1pcs
Piston rod : 1pcs
Opening mould : 1pcs
Skip : 1pcs
Loading rod : 1pcs
Barrel cleaning rod : 1pcs
Die cleaning rod : 1pcs
White gauze : 2pcs
Printing paper : 2pcs
