UV Aging Test Chamber

Product Overview

The UV Aging Test Chamber (Model: GC-UV-A) is a reliable solution for evaluating material weatherability by accelerating UV-induced aging. It differs from basic aging chambers by integrating advanced temperature control (normal temperature +10~70℃, ±3℃ fluctuation) and high-humidity (≥90% RH) environments, simulating the combined effects of sunlight, moisture, and heat. Key features include a Taiwan Xuan Rong temperature sensor (0.1℃ resolution), non-contact SSR heater control (uniform heating), and a shallow water basin humidification system (anti-dry protection). It complies with Chinese standards (GB/T14552-2008, GB/T16422.3-1997) and international norms (ISO 11507, SAE J2020), making it suitable for both domestic and global markets. Whether for R&D or quality inspection, this chamber delivers accurate, repeatable results to validate material durability.

Core Features

Precise Temperature & Humidity Control: PID self-tuning temperature control ensures stable test conditions; high-humidity environment (≥90% RH) simulates tropical or coastal climates, accelerating moisture-related aging (e.g., mold growth on coatings).

Flexible Operation Modes: Offers both "fixed value mode" (continuous UV testing) and "program mode" (custom radiation/condensation/spray cycles). Touchscreen Chinese menu simplifies parameter input, even for non-technical users.

Low Maintenance Design: Stainless steel armored humidifier (resistant to corrosion) and easily replaceable UV lamps reduce downtime. Circulation fan (Taiwan SUNON) ensures uniform air distribution, preventing local overheating.

Application Scenarios

This chamber is widely used in:

Building & Construction: Testing exterior materials (e.g., vinyl siding, roof shingles) for UV and moisture resistance to avoid warping or discoloration.

Electronics & Electricals: Evaluating outdoor electronic enclosures (e.g., solar panels, street light housings) for protection against UV-induced material degradation.

Textile & Leather: Assessing outdoor textiles (e.g., boat covers, outdoor clothing) and leather goods (e.g., car seats) for fading and tensile strength loss.

Cosmetics & Packaging: Testing UV-protective packaging for cosmetics or pharmaceuticals to prevent product degradation under light exposure.

a) UVA-340: It can emit the wavelength of sunlight from 315nm to 400nm, and its radiation peak is at 340nm. UVA-340 is especially useful for controlled testing of different experiments, best simulating sunlight in the short-wave UV range.

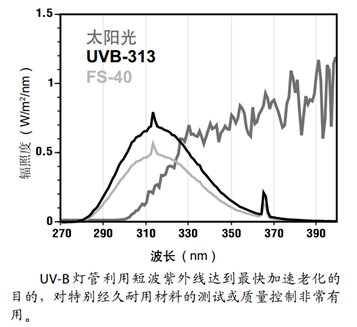

b) UVB-313: The wavelength range is between 280nm and 315nm. UVB-313 tubes cause faster material degradation than UVA-340 lamps, but their shorter wavelength than the solar cutoff can produce impractical results for many materials.

1. UV cycle temperature control:

The components of the UV circulation system include a blower, air heater, air distribution system, black panel temperature sensor.

a) Blower: Installed at the air duct opening of the lower box of the equipment, the blower works continuously during the whole UV cycle.

b) Air heater: installed in the air duct above the blower, used to heat the air blown by the blower when needed.

c) Air distribution system: the air blown by the blower enters the test room through the air duct in the center of the water tray, and then is guided by the air guide to fill the whole test room

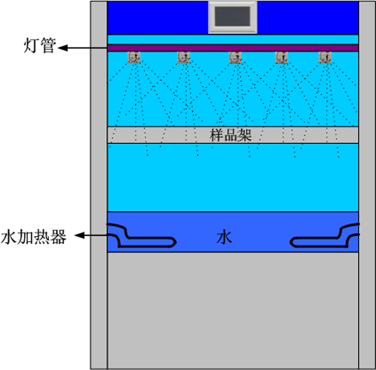

2. Condensation system (simulated dew):

The QUV condensing system is essentially where evaporated water vapor is confined within the chamber by the chamber's template. During the condensation cycle, the water is heated by the heating element in the water pan. The water vapor fills the test chamber and reaches equilibrium at 100% humidity. The water vapor continuously condenses on the sample and finally flows back into the water pan.

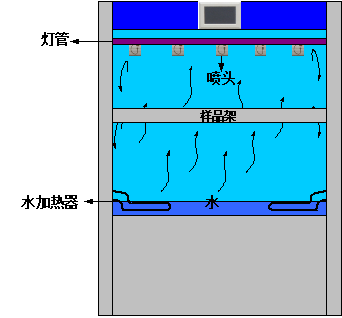

3. Sprinkler system (simulated rainwater):

The QUV sprinkler system consists of a high-power water pump, 5 nozzles, connecting pipes, control valves and drainage parts. Nozzles are installed between the lamps, and in the spray cycle, water is sprayed onto the sample to create a thermal shock or erosion effect.

4. Box structure features:

• The cabinet is made by full numerical control, with advanced technology, smooth lines and elegant appearance

• The whole box is made of SUS304 high-grade stainless steel plate

• Stainless steel dense hole sample holder

• Door-type opening devices are used for each opening of the test box shell, which is easy to open

• In order to facilitate movement, casters are installed at the bottom of the instrument, and the position of the testing machine is fixed with a U-shaped ring after the position is fixed.

5. Control panel: (The specific buttons and indicators depend on the actual configuration)

• QTEST-UV 7-inch programmable display

• RS232 communication port

• Operation button

• Alarm indicator light

• Irradiation timer

6. Operation laboratory:

• UV lamp, blackboard temperature sensor.

• Heating and humidifying device

• Inlet and drainage, spraying device

7. Mechanical room:

• Intake and drainage device

• Sprinkler system installation

• Condensing system installation

• Blower, air heater

• Alarm device

8. Power distribution control cabinet:

• Power distribution board, main power circuit breaker, cooling fan, etc.

9. Heater:

• Heater material: stainless steel 304 fin heat dissipation electric heating tube

• Heater control mode: non-contact equal-period pulse width modulation, SSR (solid state relay)

10. Humidifier:

• Humidification method: shallow water basin heating

• Humidifier material: stainless steel armored

• Humidifier control mode: non-contact equal-period pulse width modulation, SSR (solid state relay)

• Humidifier device: water level control device, heater anti-dry device

11. Electrical control system:

• Controller (model): Taiwan programmable touch screen controller (QTEST)

• Display: 7-inch true color touch screen

• Operation mode: program mode, fixed value mode

• Setting method: Chinese menu, touch screen input

• Program capacity: 30 groups of memory programs, each program group contains 30 program segments, all cycles, up to 999 times

• Black panel temperature monitoring: Standard Pt-100 black panel temperature sensor is used to precisely control the sample surface temperature during the test.

• Subsidiary functions: fault alarm and cause, processing prompt function, power-off protection function, timing function (automatic start and automatic stop operation), self-diagnosis function.

12. QTEST controller operation:

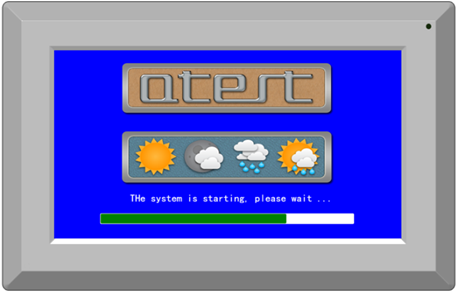

• Initial screen

Users can switch to other screens through the main menu screen, as shown in the figure below

• Fixed value operation function

Users can use this function to realize the continuous UV test function. In the customized running screen, the user can manually control the opening and closing of each function. In this screen, the temperature setting can be realized, and it has the function of automatic temperature calculation.

• Program test run function.

In the program control screen, the user can automatically run the device according to the edited program. When the program is running, the device has functions such as keeping the jump. And can visually observe the basic information such as the total running time of the program, the segment running time of the program segment, and the program number. At the same time, the running status of each system will also be intuitively displayed on the screen.

• Document management function

This device has powerful document recording, management and storage functions

List of main accessories

Safety protection device

• Fan duct over-temperature protection

• Shallow water pan heating tube anti-dry protection

• Water tank water shortage alarm protection

• Water tank water failure alarm protection

• Short circuit protection, over current protection

Conditions of use (the user guarantees the following conditions)

1. Venue:

• The ground is flat and well ventilated, free of flammable, explosive, corrosive gases and high-concentration dust

• There is no strong electromagnetic radiation source nearby

• No direct sunlight or direct radiation from other heat sources

• There is a water supply and drainage device near the equipment

• Ground area and load-bearing capacity of the venue: not less than 234×353cm and 500kg/m2

• Appropriate maintenance space is reserved around the equipment

2. Environmental conditions:

• Temperature: 5℃～32℃, preferably installed in an air-conditioned room. This keeps the room temperature at 21°C to 27°C.

• Relative humidity: ≤ 85%RH

• Air pressure: 86～106kpa

3. Power requirements:

• Power 3.5KW, voltage 2
