Product Description

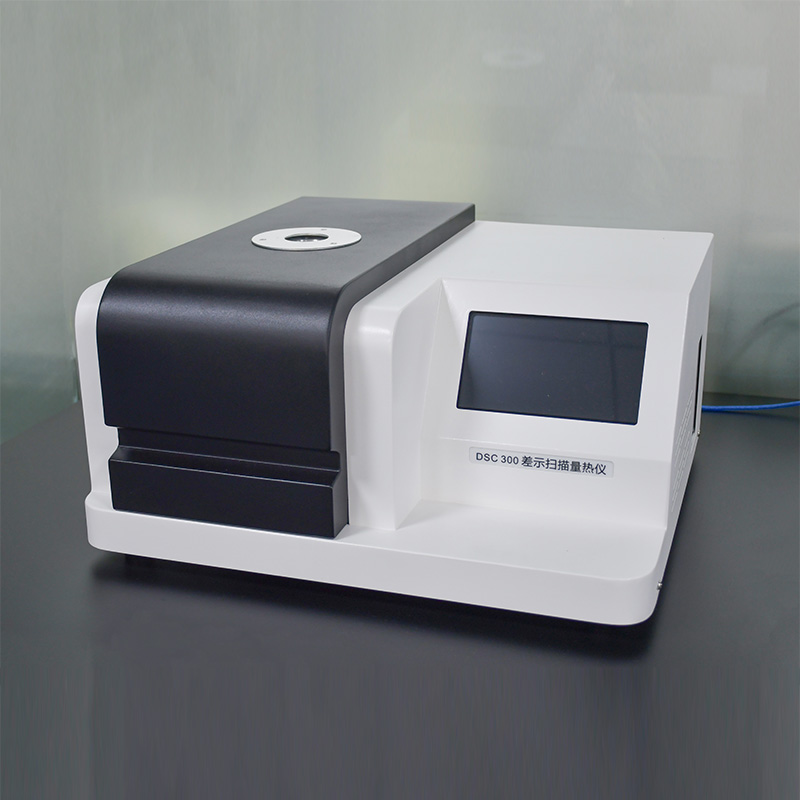

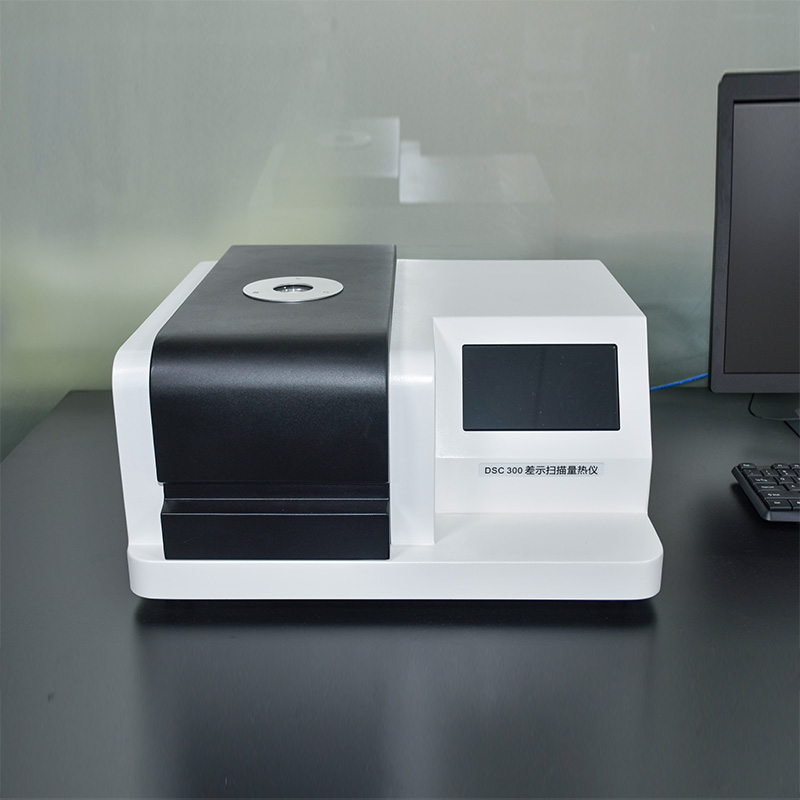

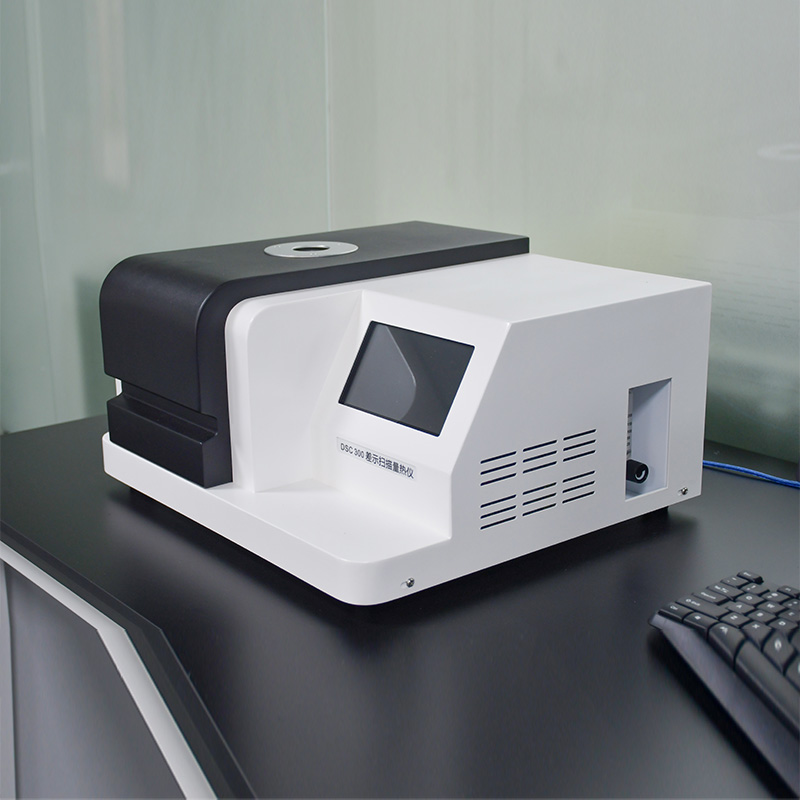

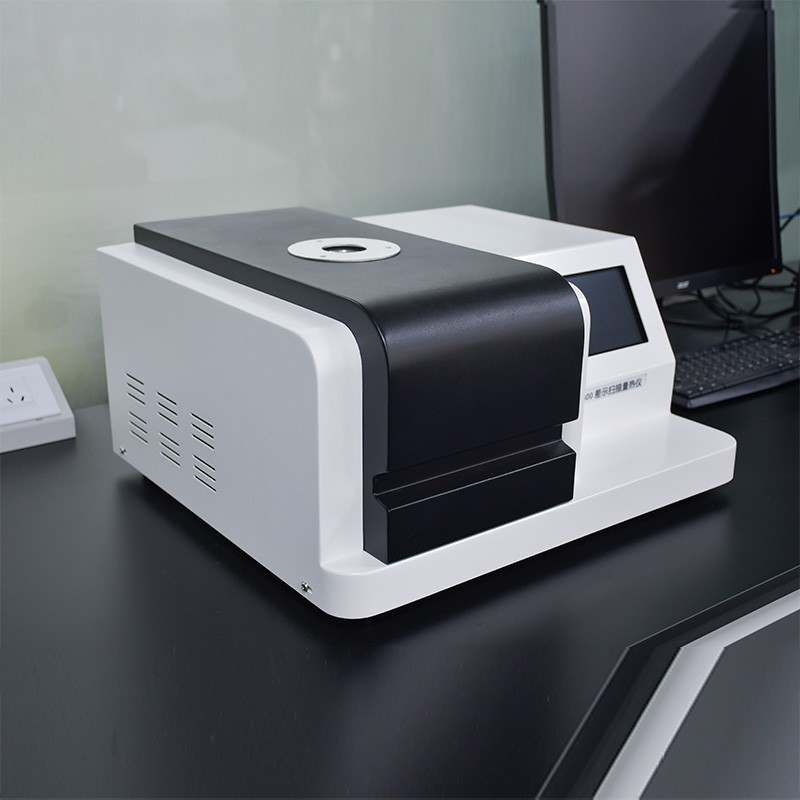

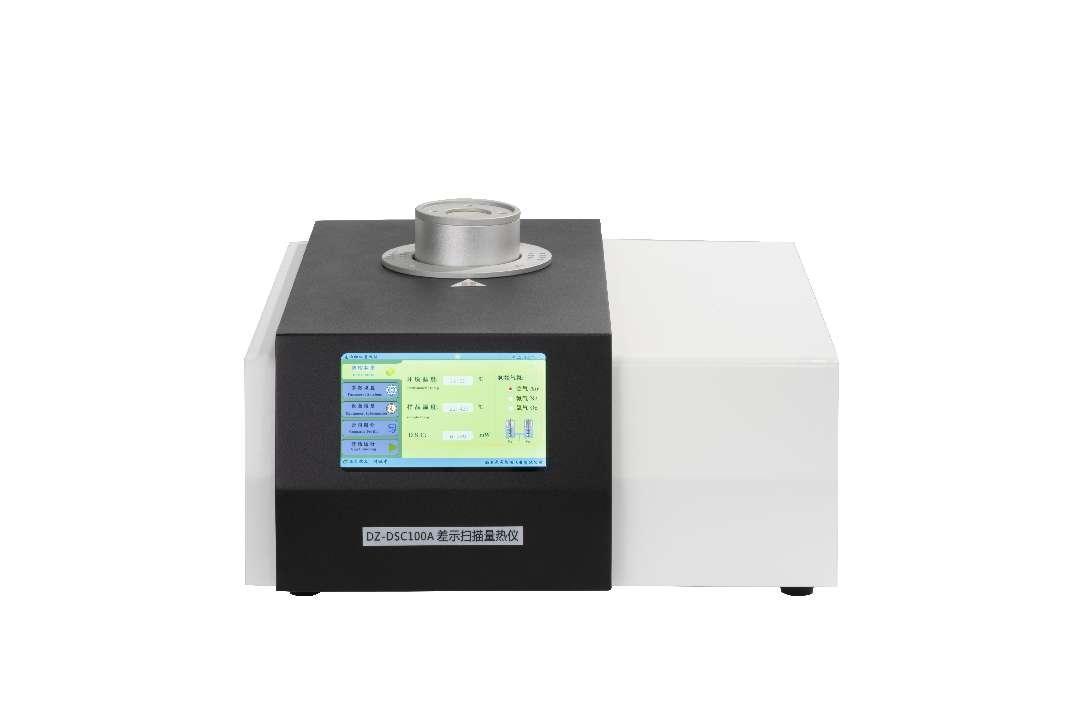

Differential scanning calorimeter
DSC100A
Product introduction:
DSC Instrument is the company's highest precision differential. The sensor is made of imported e-couple with high sensitivity.Signal acquisition circuit shielding protection, strong anti-interference, high baseline stability.
The DSC is a touch screen type, which can be used for glass transition temperature test, phase transition test, melting and enthalpy test, product stability and oxidation induction period test.Wide range of application
Technical parameters:
1. Temperature range: Room temperature ~ 600 ℃ air cooling
2. Temperature resolution: 0.01℃
3. Temperature fluctuation: ±0.01℃
4. Temperature repeatability: ±0.1℃
5. Heating rate: 0.1～80℃/min
6. Constant temperature time: program setting ≤ 24h
7. Temperature control mode: heating, constant temperature, cooling (full automatic program control)
8. DSC range: 0～±600mW
9. DSC resolution: 0.01uW
10. DSC accuracy: 0.001mW
11. Working power supply: Ac220vv50 Hz or customized
12. Atmosphere control gas: nitrogen, oxygen (instrument automatic switch)
13. Gas flow: 0-300mllmin
14. Gas pressure: 0.2MPa
15. Display mode: 24 bit color, 7 inch LCD touch screen display
16. Data interface: standard USB interface
17. Parameter standard: With reference materials (indium, tin), users can adjust the temperature by themselves
18. The upper computer is a three in one operation software, which is also suitable for thermogravimetry and synchronous instruments.
19. The instrument has several groups of thermocouples, one for sample temperature, one for furnace body temperature and one for internal environment temperature
20. Cooling device: air cooling device (optional with semiconductor, liquid nitrogen refrigeration).
Technical features:
1. Industrial level 7-inch touch screen, display information rich.
2. New metal furnace structure, better baseline and higher precision.Indirect conduction mode is adopted in heating, which has high uniformity and stability, and reduces pulse radiation, which is better than traditional heating mode.
3. USB communication interface, strong versatility, reliable communication, support self recovery connection function.
4. Automatic switching of two-way atmosphere flow, fast switching speed and short stable time.At the same time, a protective gas input is added.
5. The software is simple and easy to operate.

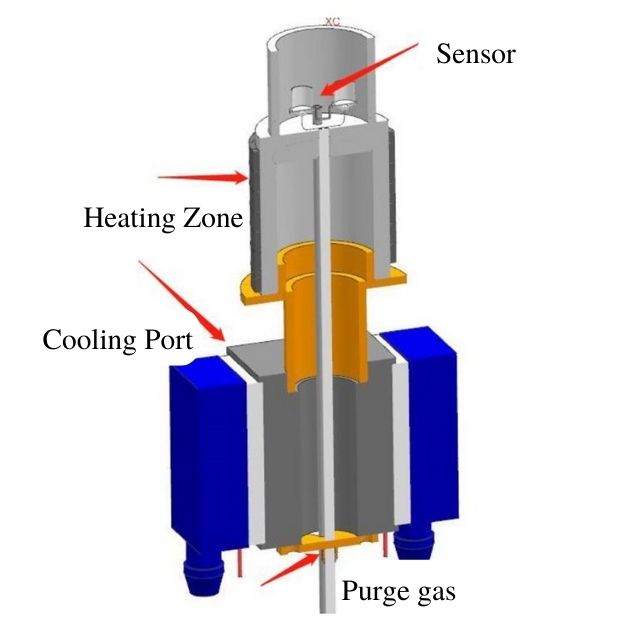

Furnace structure

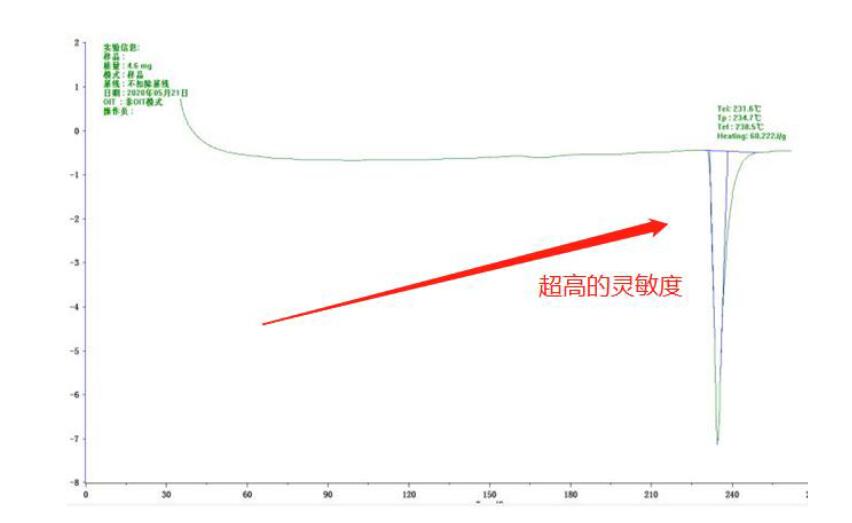

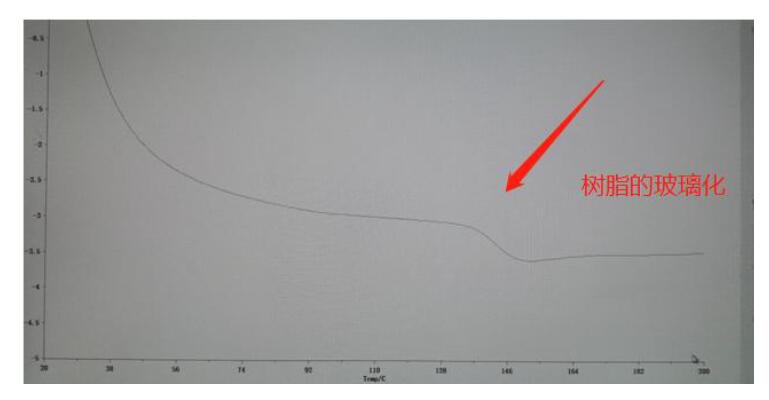

Test Atlas of some samples
 |  |  |
