GC-WDS-500S
Guangce
9024800000
Product Description

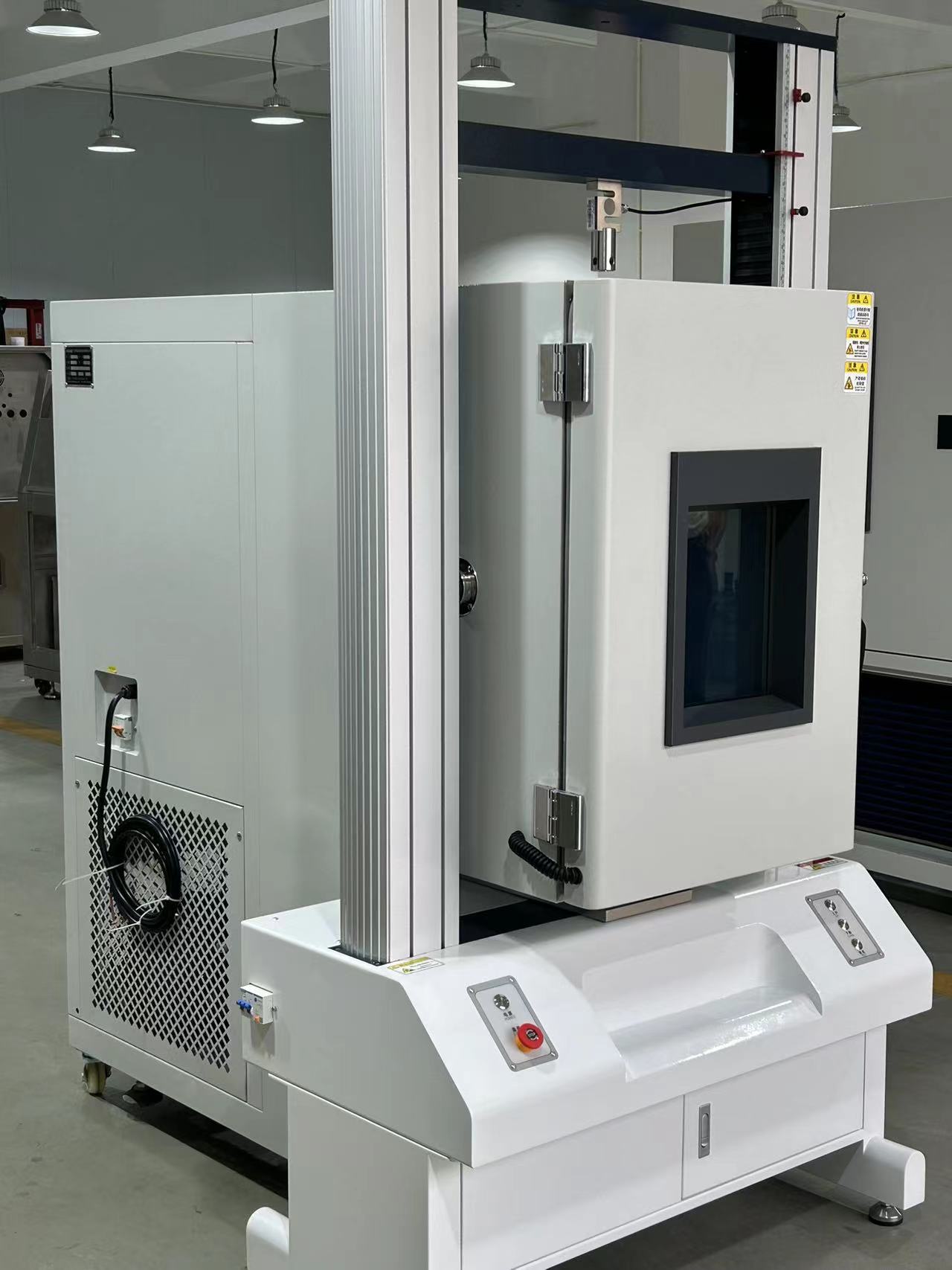

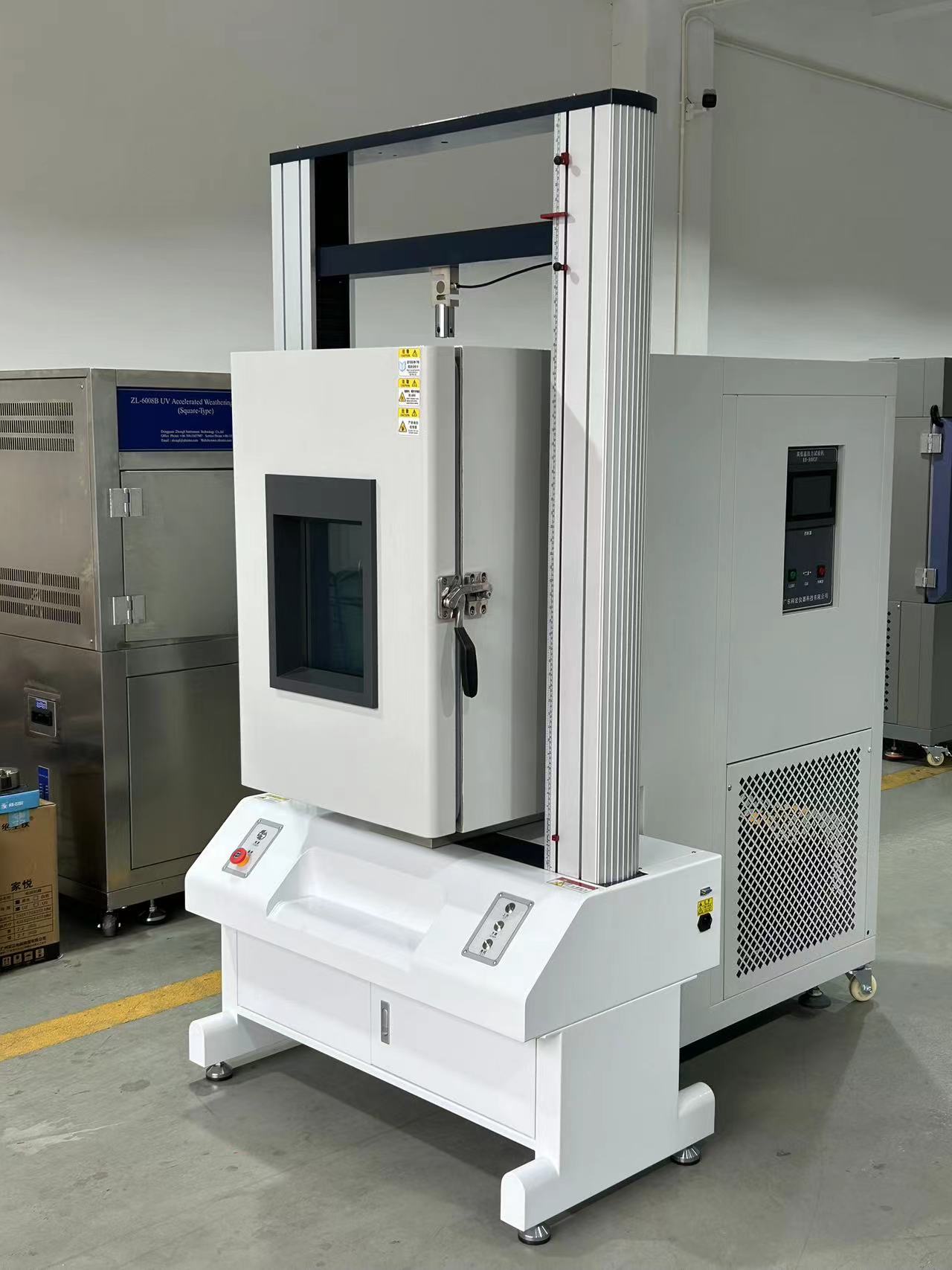

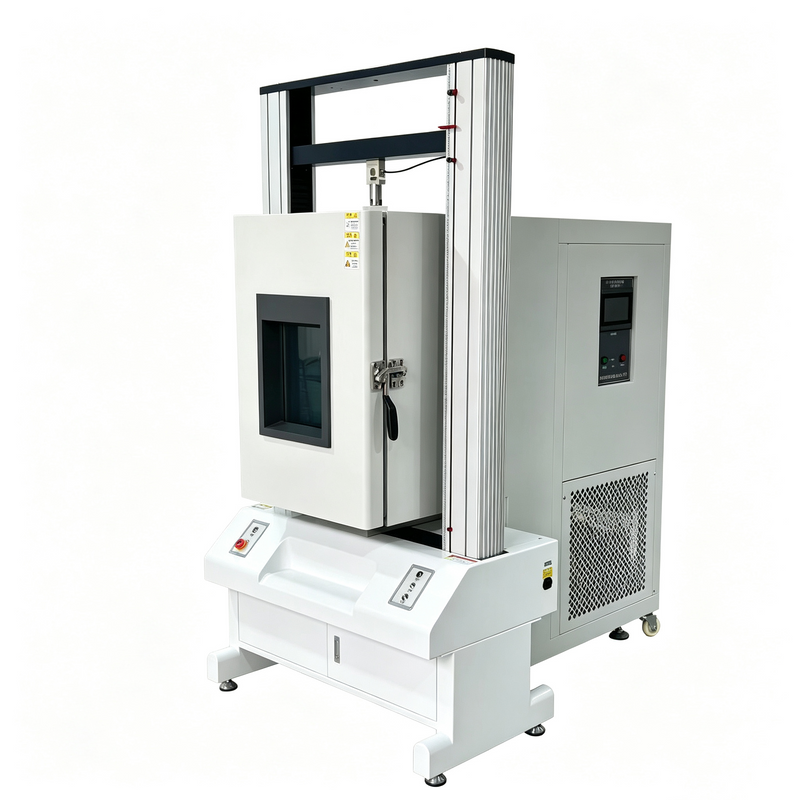

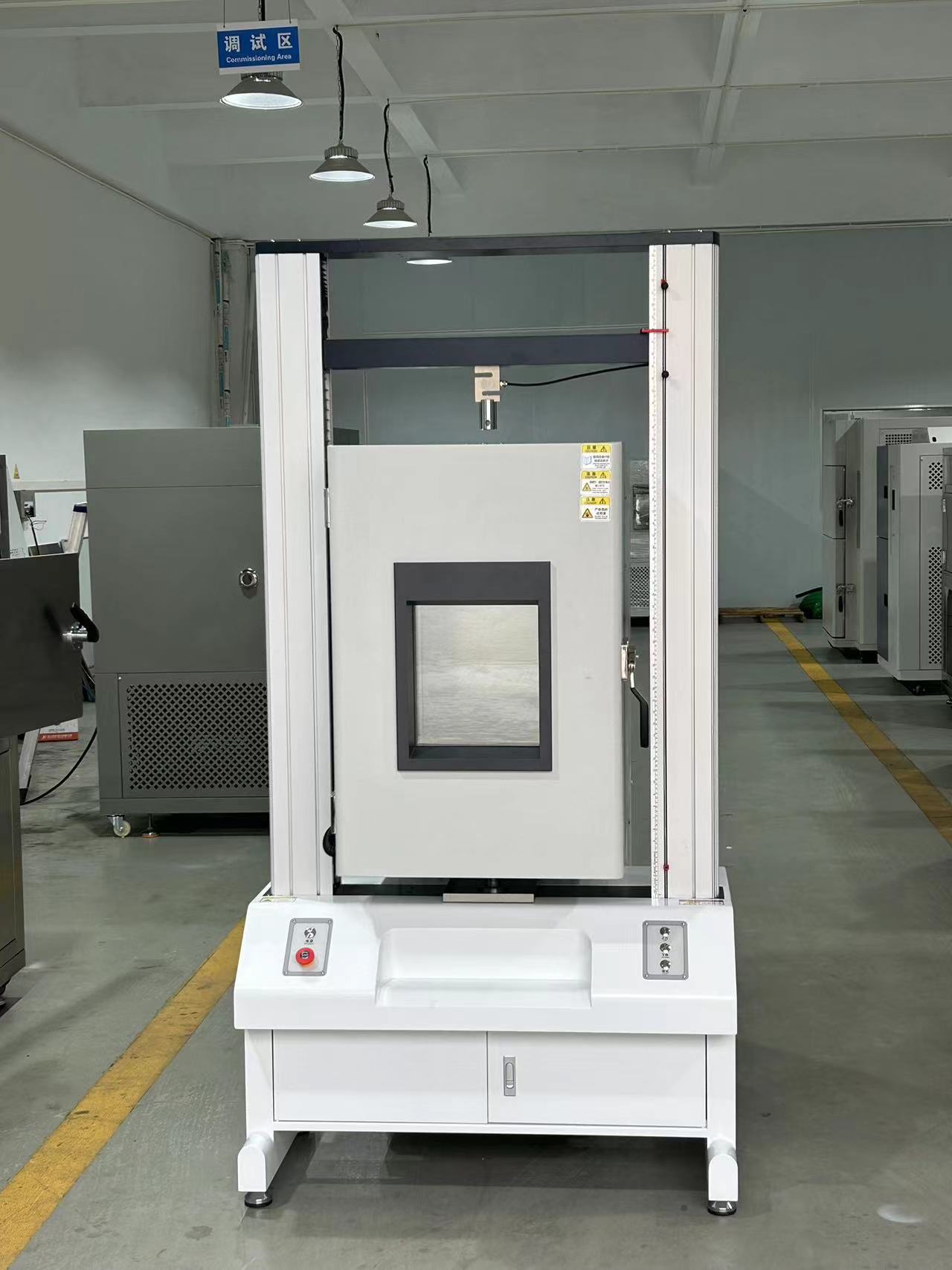

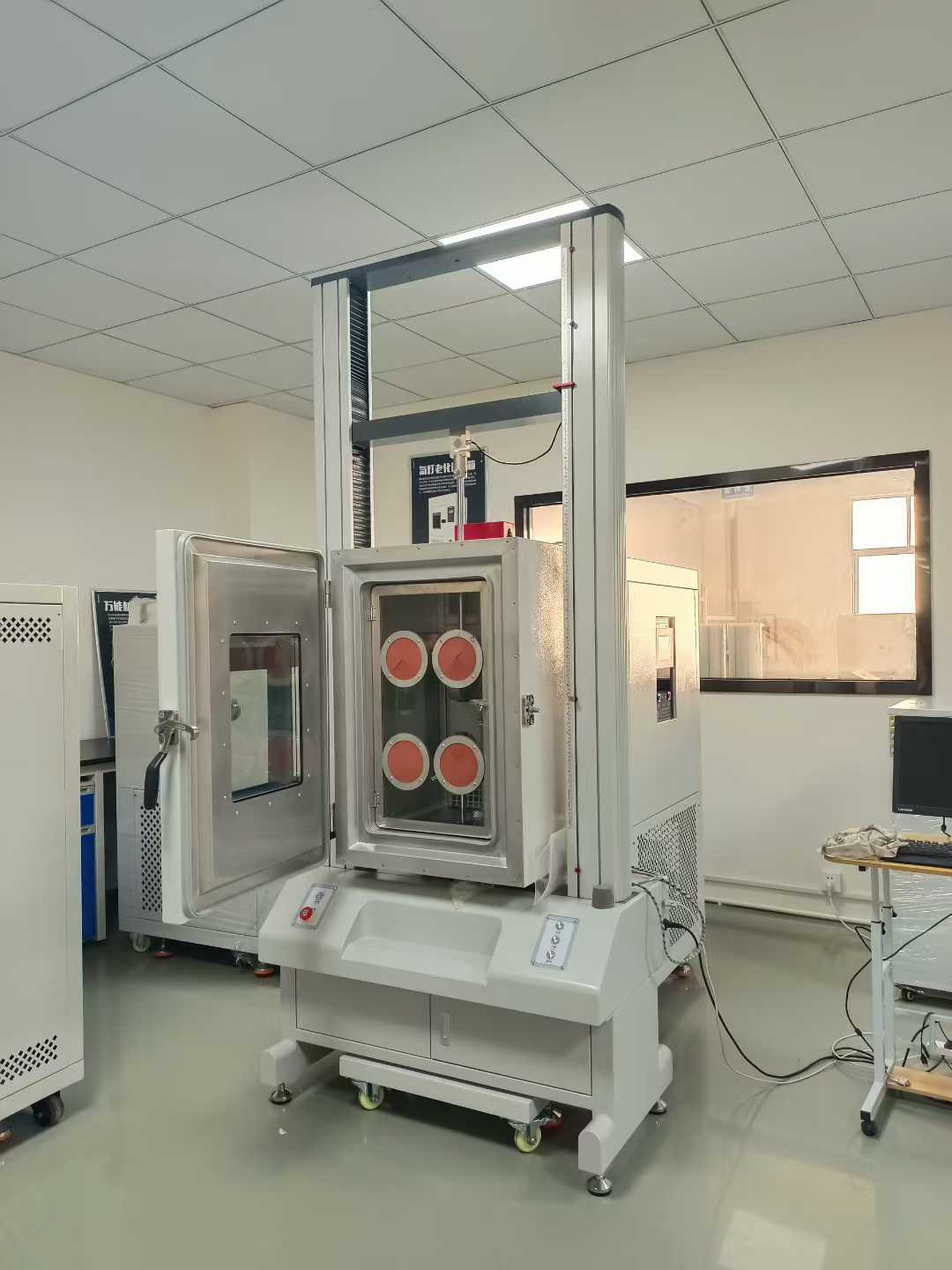

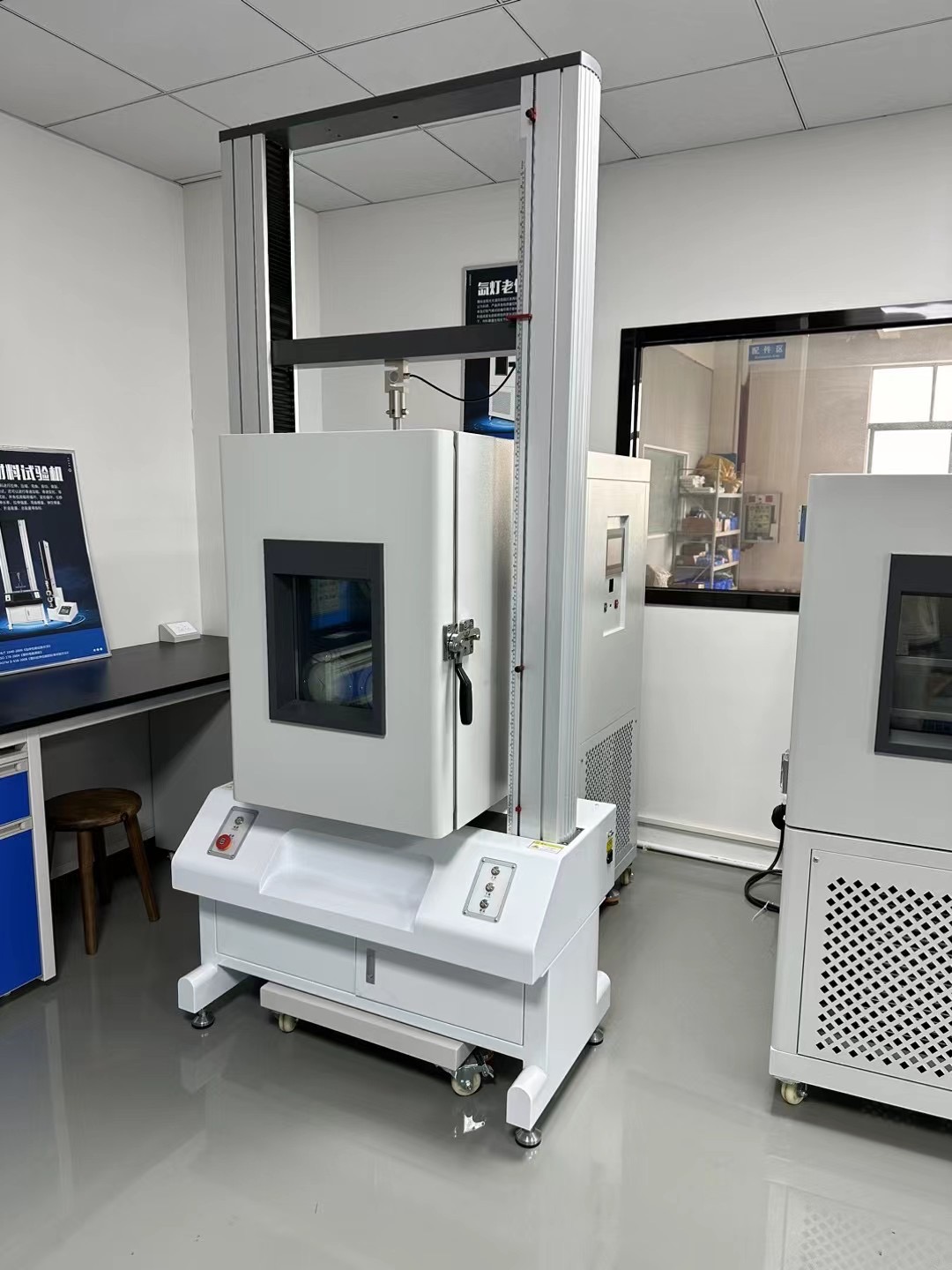

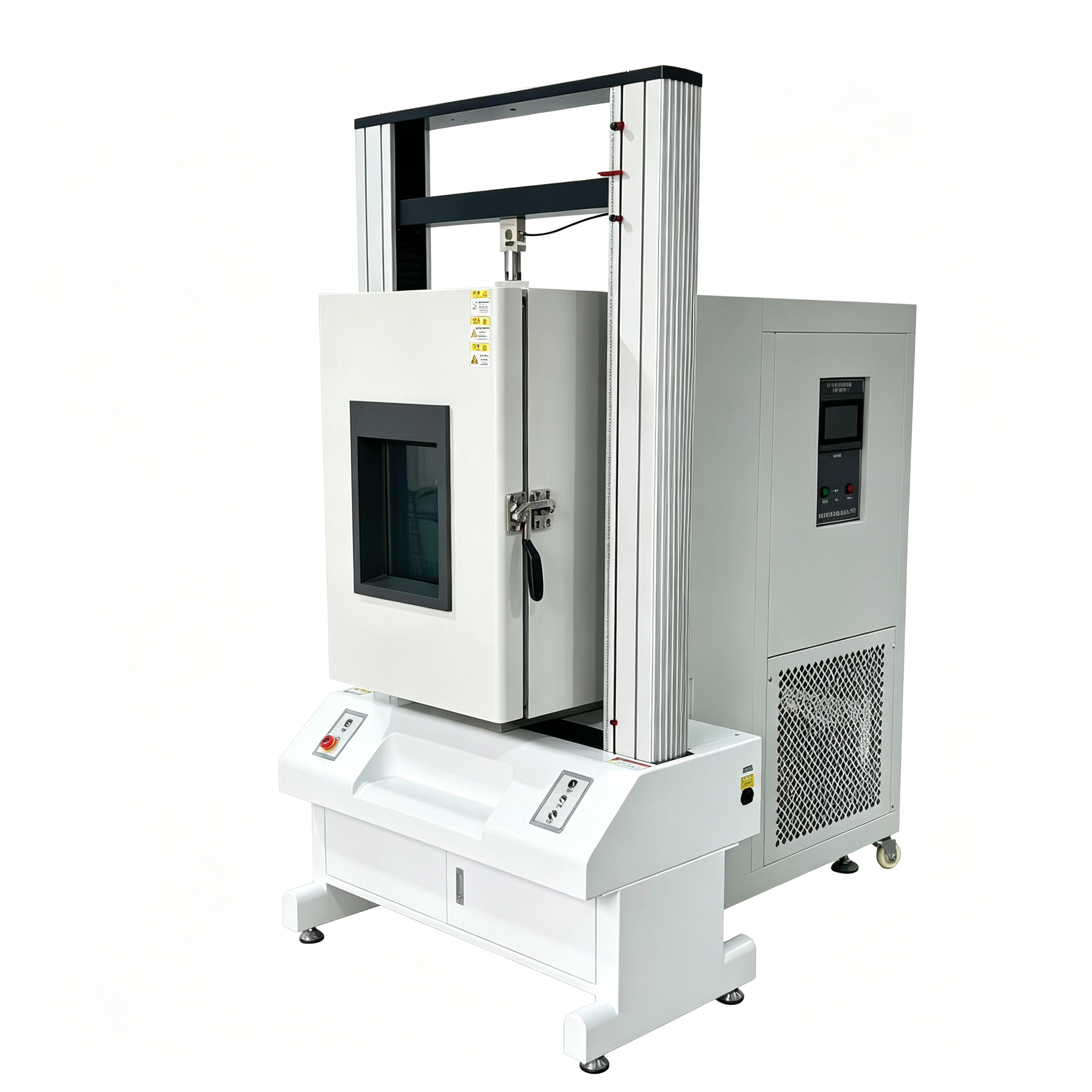

Our High-Low Temperature Tensile Testing Machine is a state-of-the-art electromechanical universal testing system engineered to accurately determine the mechanical behavior of materials when subjected to both tensile and compressive forces across an exceptionally wide thermal spectrum. Covering a standard temperature range from -70°C to +180°C (with customized broader ranges available), this equipment simulates real-world operational environments—from arctic cold to intense industrial heat—allowing manufacturers to predict product durability, safety, and service life before mass production.
This system seamlessly integrates a high-performance dual-column load frame with a precisely controlled environmental chamber, making it an indispensable tool for material scientists, quality assurance engineers, and production managers who demand repeatable, ISO/ASTM-compliant test data.
Model | GC-WDS-500S |
|---|---|
Max Load Capacity | 5kN (10kN/20kN/30kN/ 50kN / 100kN (Optional)) |
Temperature Range | -70℃ ~ +180℃ |
Temperature Uniformity | ±5.0℃ |
Load Accuracy | ±0.5% of indicated value |
Test Space (W×H×D) | Customizable |
Heating Rate | Average 3℃/min, non-linear heating |
Cooling Rate | Average 1℃/min, non-linear cooling |
Integrated Environmental Chamber: Equipped with a highly insulated thermal chamber and forced-air circulation system, ensuring exceptional temperature uniformity and rapid heating/cooling rates.
High-Precision Drive System: Powered by an AC servo motor and precision ball screw, delivering accurate load control and displacement measurement with a class 0.5 accuracy grade
Intelligent Control Interface: Features a user-friendly PLC touch screen and PC-connected software, allowing for programmable temperature profiles, real-time data acquisition, automatic curve plotting, and report export (ASTM/ISO compliant).
Versatile Fixtures: Supports a wide range of interchangeable grips and extensometers, suitable for testing plastics, rubber, composites, and electronic components.
