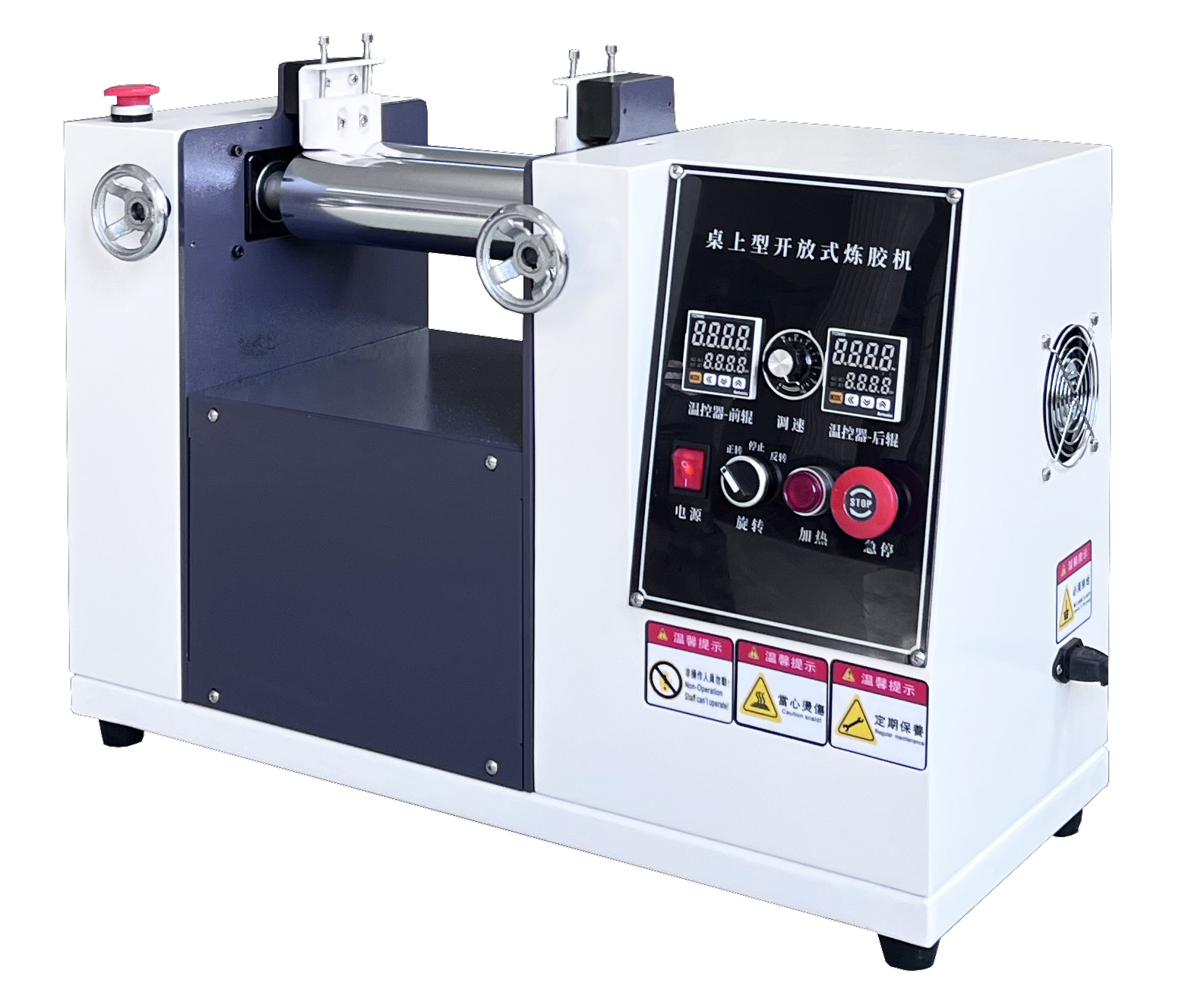

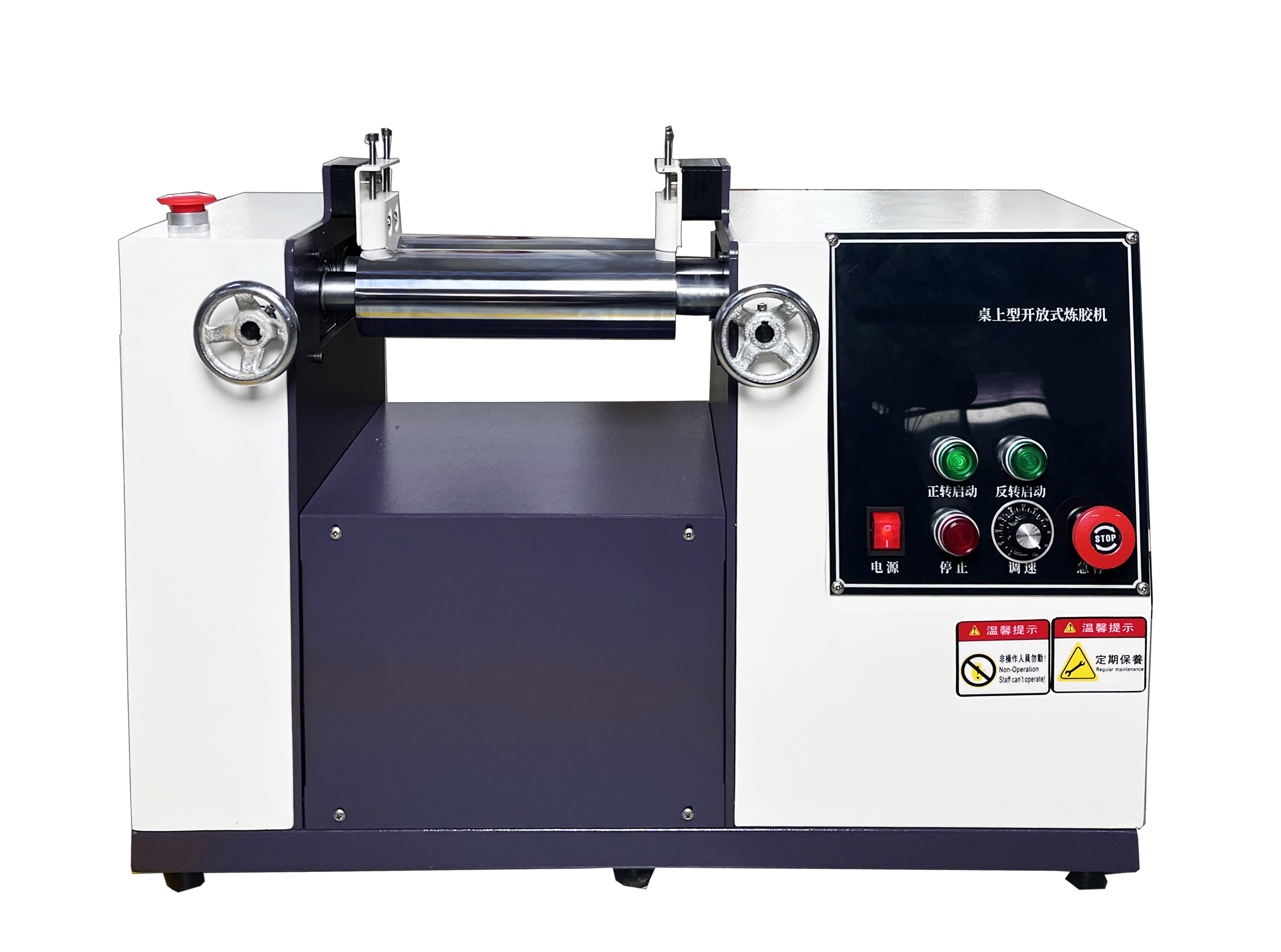

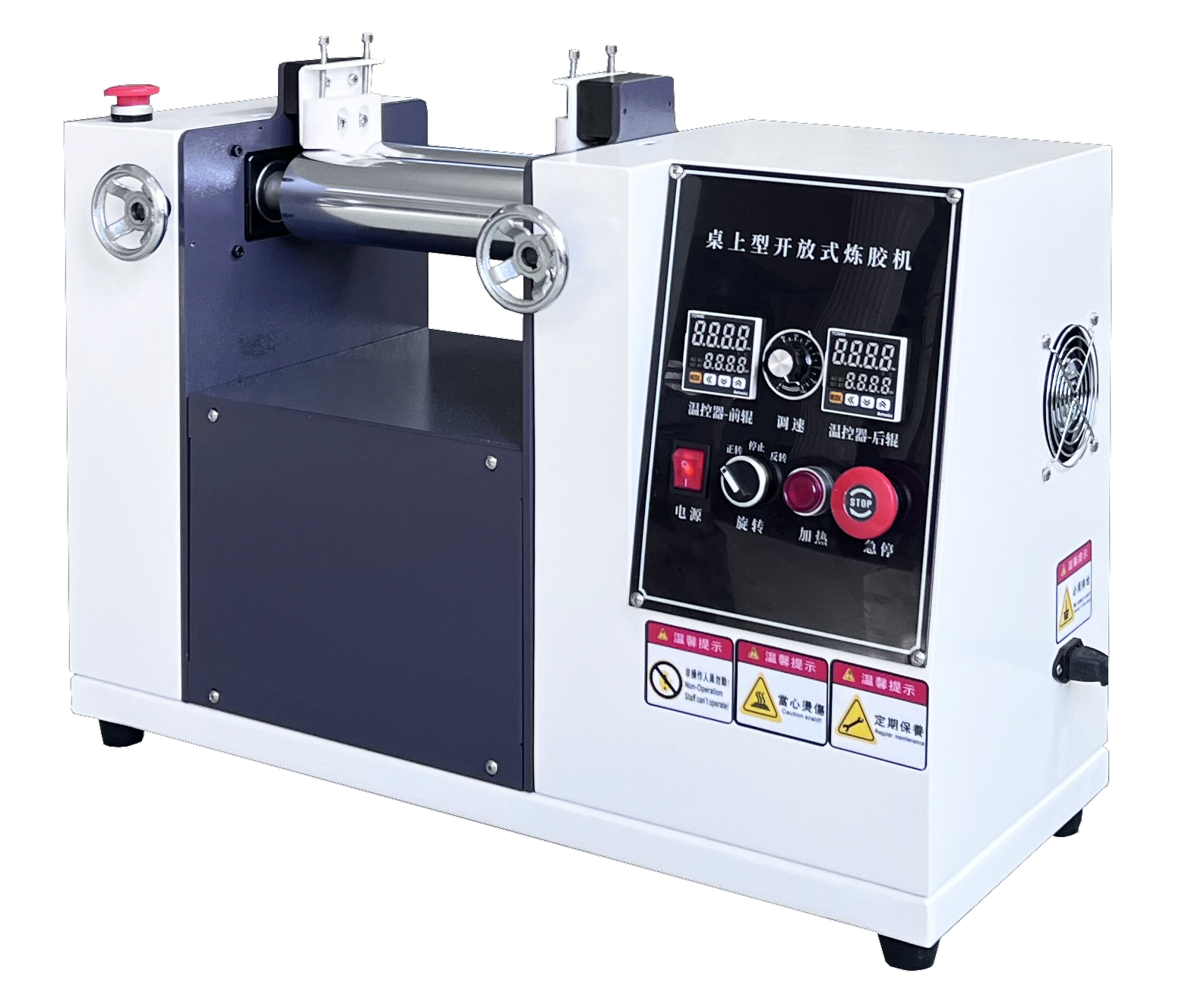

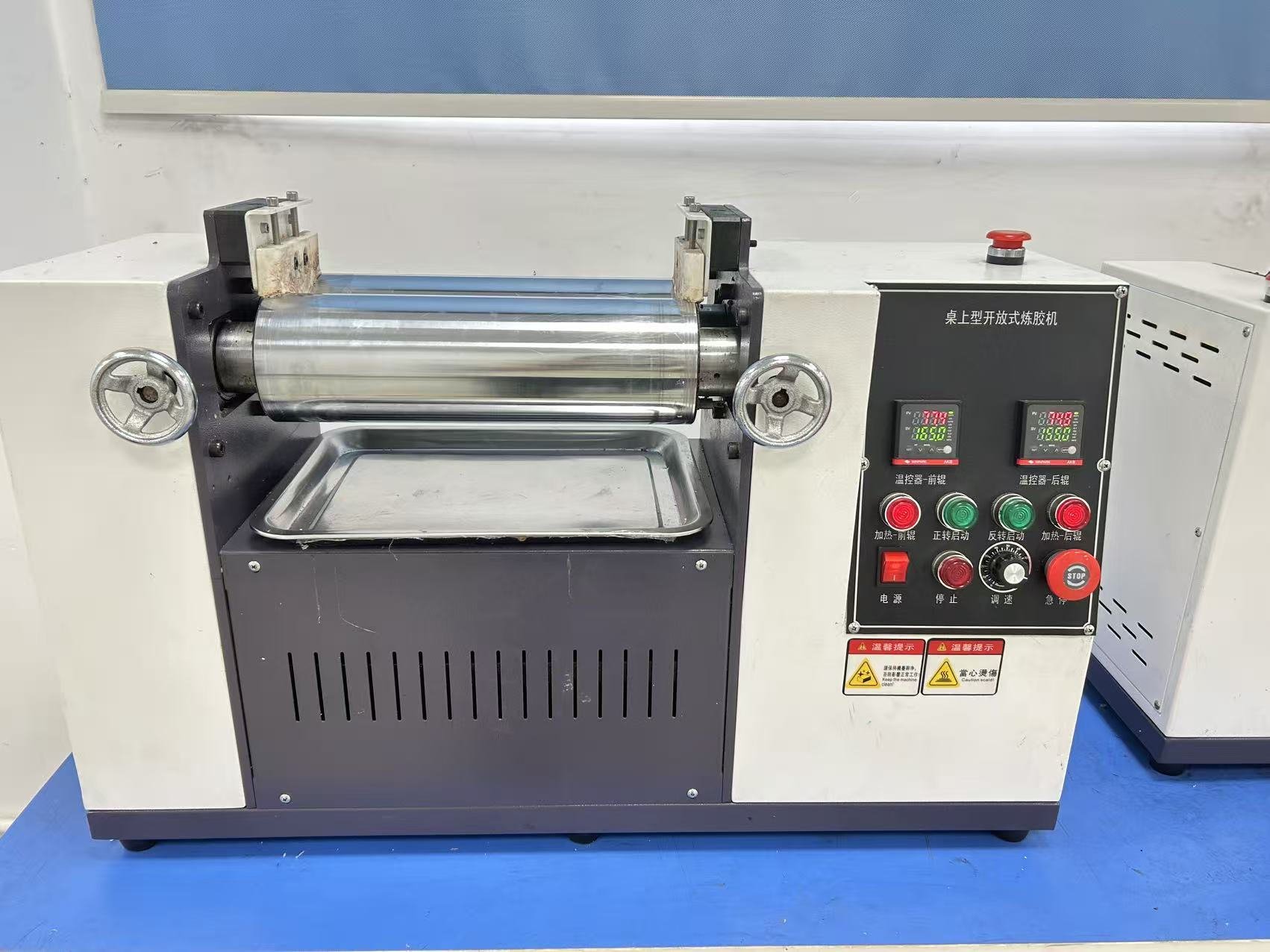

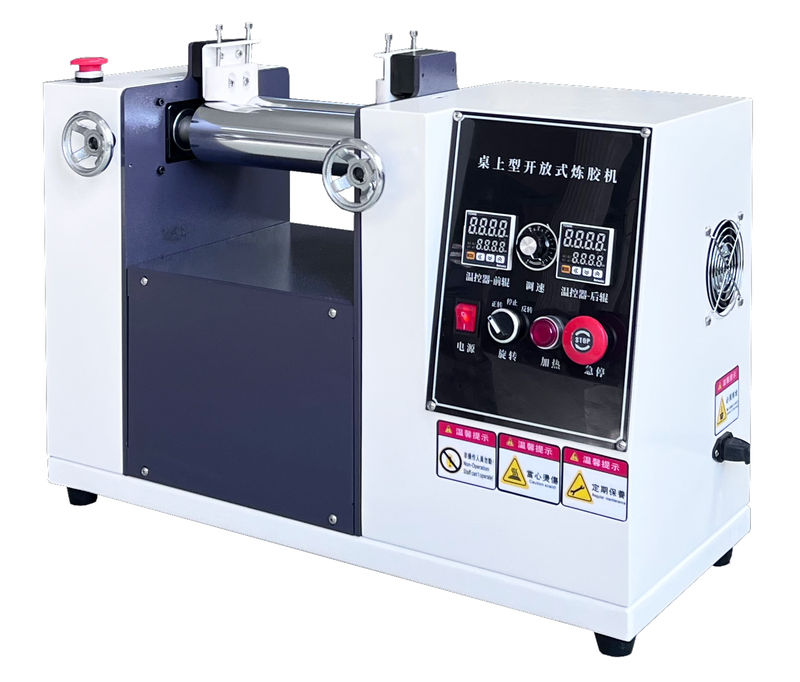

Open Two-Roll Rubber Mixing Mill Machine

Open two-roll mixing mill for rubber & plastic compounding. Features hard chrome-plated rollers, adjustable gap, and reversible safety protection. Ideal for plasticizing, mixing, and sheeting. GC series sizes available.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • GC-KL-3

  • Guangce

  • 8477800000

Product Description

Open Two-Roll Rubber Mixing Mill

A. Introduction

    A rubber mixing machine with exposed rollers used in rubber factories to prepare plasticized rubber, mixed rubber, or heat-cured and molded. The main working parts are two hollow rollers or drilling rollers that rotate inward in different directions. The one installed on the operator's side is called the front roller, which can be moved back and forth horizontally by manual or electric action to adjust the roller distance to meet the operating requirements; The rear roller is fixed and cannot move back and forth. The size of the two rollers is generally the same, and they rotate relative to each other at different speeds. The raw rubber or rubber material is drawn into the gap between the two rollers with the rotation of the rollers, and is subjected to strong shearing to achieve the purpose of mastication or mixing. Mills are also used in sectors such as plastics processing.

B. Parameters

Item

3-inch

Model

GC-KL-3

Roller diameter (metric/imperial)

65mm/3in

Roller surface width

230mm

Mixing capacity 【soft rubber】

0.1～0.6kg

Material receiving device

SUS304 stainless steel hopper

Roller temperature

[Choose one based on the quotation]

Room temperature/Room temperature ~250°C

Temperature Uniformity

2.5℃

Thermostat

Omron

Roller speed ratio [constant speed]

1:1.25

Roller hardness

50～60HRC

Roller treatment

Mirror polished chrome

Roller spacing

0.1 ~ 4mm adjustable

Speed

10-40r/min

Pitch display mode

Scale

Safety device Collision type

Emergency stop device

Number of safety devices

2

Special functions

Emergency stop reverse

Power

2.2KW

Power supply voltage

1∮, AC220V

Machine size

650L×350W×580H mm

Machine weight

≈120kg

C. Key Advantages of a 3-Inch Open Mill

  • High-shear mixing – Ensures uniform dispersion of additives and consistent material quality.

  • Precision R&D tool – Ideal for small-batch formulation development, process simulation, and quality control with minimal material waste.

  • Flexible operation – Adjustable roll gap, speed ratio, and temperature control (heating/cooling) to suit various materials.

  • Compact footprint – Benchtop design fits easily into space-limited laboratories.

  • Enhanced safety – Equipped with emergency stops and guards for operator protection.

Open Mill Two Roll Mixing Mill Rubber Compounding Mill Rubber Plasticizing Equipment Mixing Mill Lab Two Roll Mill
