ISO 4649 DIN 53516 Abrasion Resistance Tester Digital Display Rubber Friction Test Machine

This machine is designed for wear resistance testing of elastic materials, including rubber, tires, conveyor belts, shoe soles, soft synthetic leather, leather, and more. It features high efficiency, excellent reproducibility, and user-friendly operation.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • GC-DIN-A

  • Guangce

  • 9031809090

Product Description

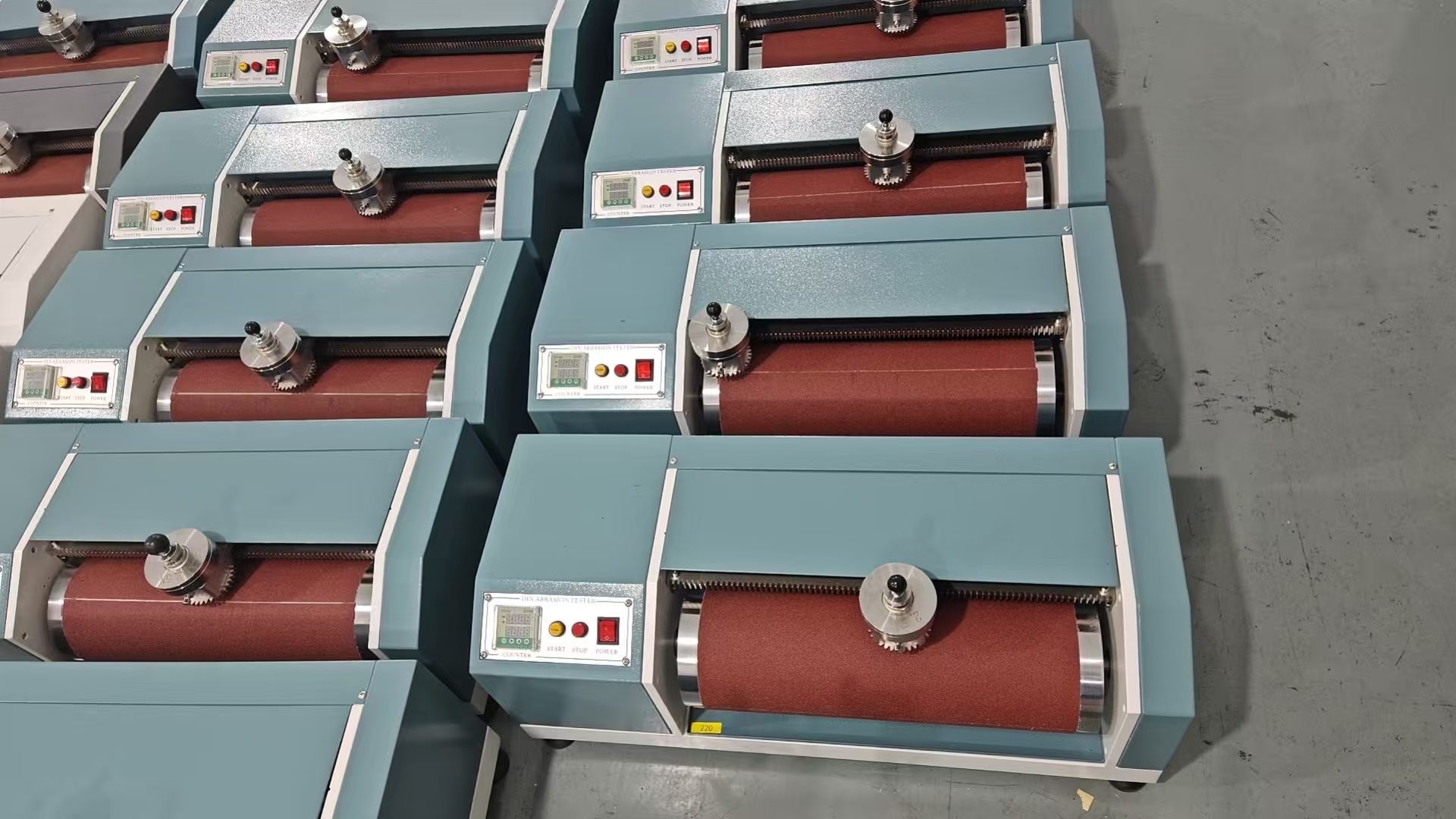

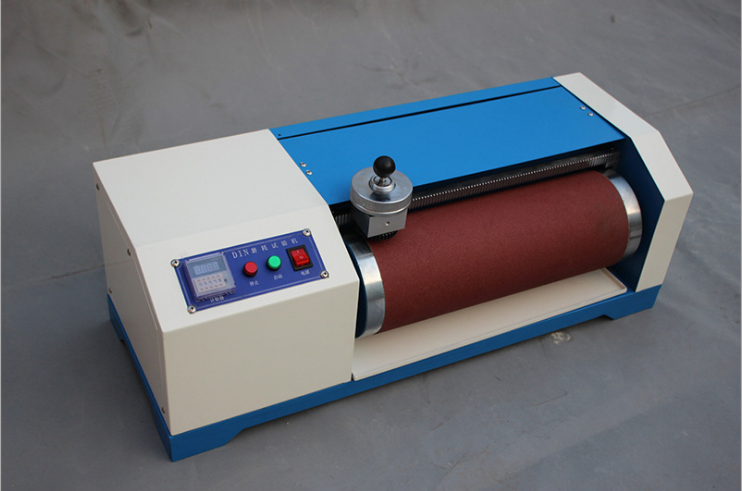

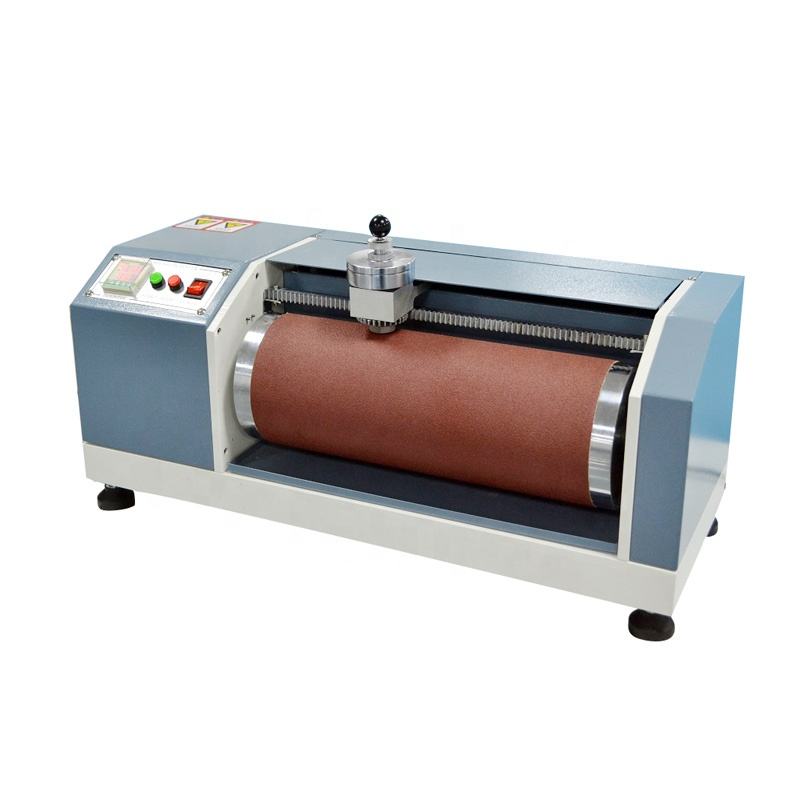

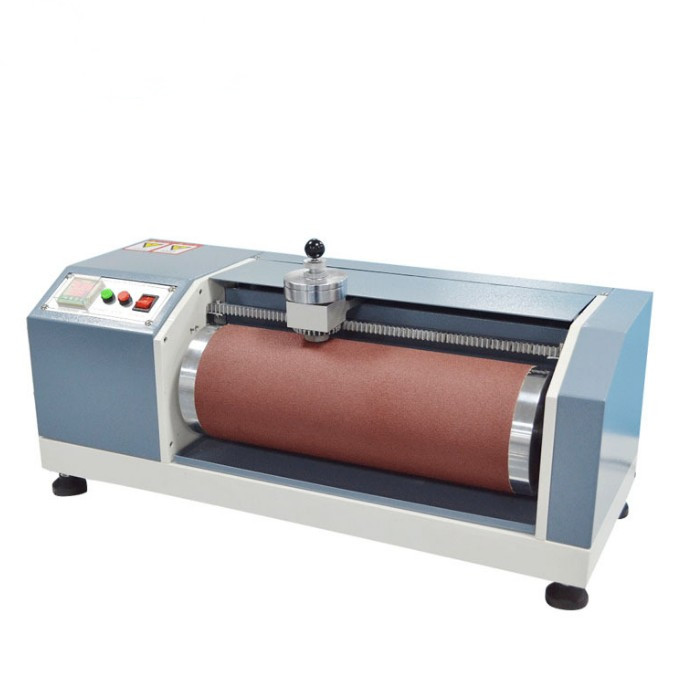

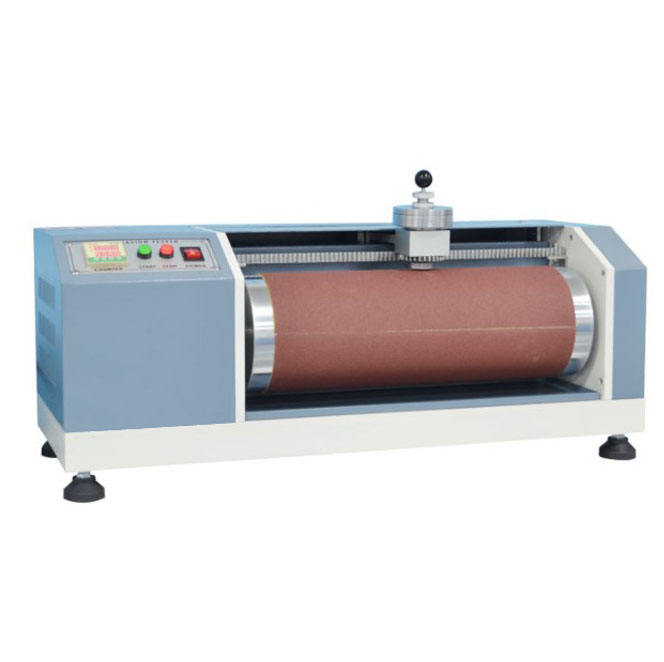

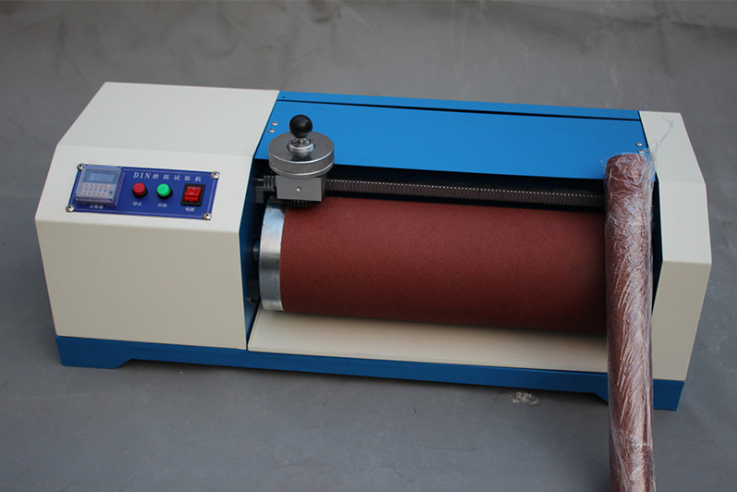

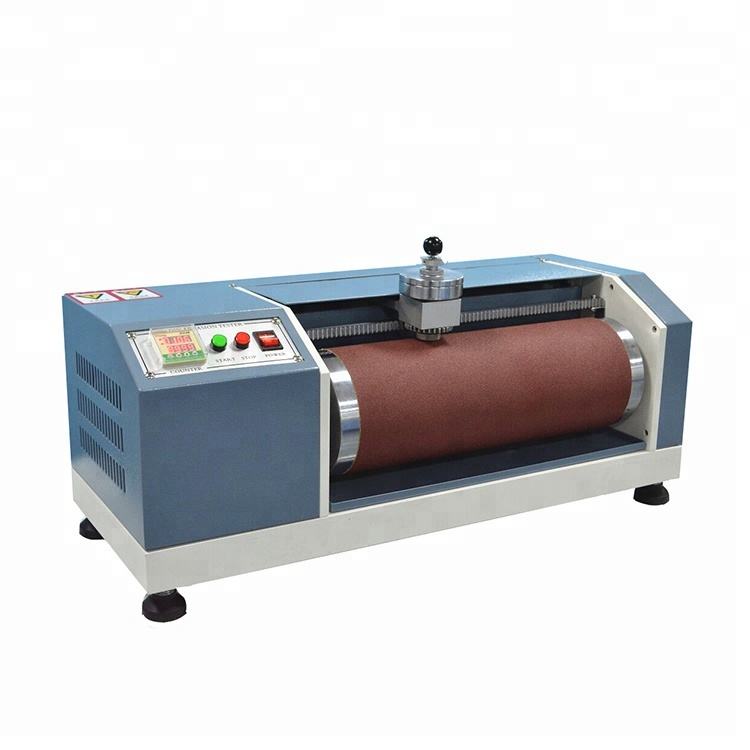

DIN Abrasion Wear Resistance Tester


Introduction

This machine is suitable for wear testing of elastic materials, rubber, tires, conveyor belts, conveyor belts, shoe soles, soft synthetic leather, leather and other materials. It has the characteristics of high efficiency, good reproducibility and easy operation.

Standards

DIN-53516, ISO/DIS-4649, GB-9867

Parameters

Roller diameter

φ150mm

Roller length

460 mm

Roller speed

40rpm

Wear stroke

40mm(20 mm)

Wear rate

0.32 m/S

Inclination

3°

Test piece diameter

φ16 mm

Thickness

6~15 mm

Test load

2.5N，5N

Fixture lateral displacement

4.2 mm/roller per turn

Volume

95*66*31cm

Weight

About 50kg

Power supply

220V 50HZ

DIN Abrasion Tester；DIN Abrasion Resistance Tester；Rubber Abrasion Tester；DIN Wear Testing Mac
