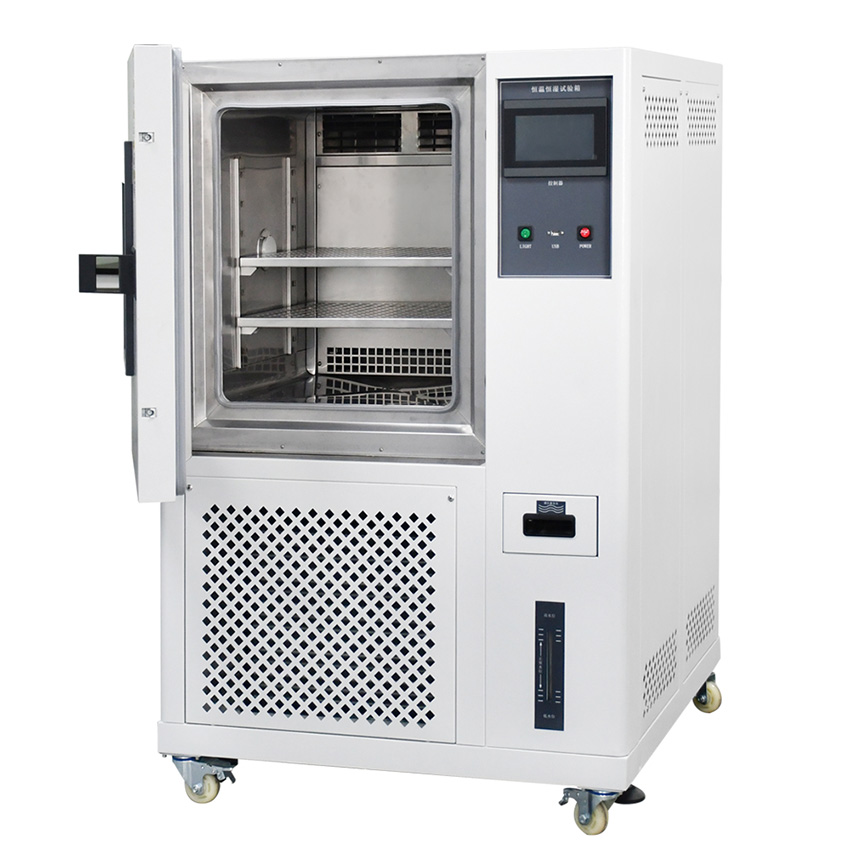

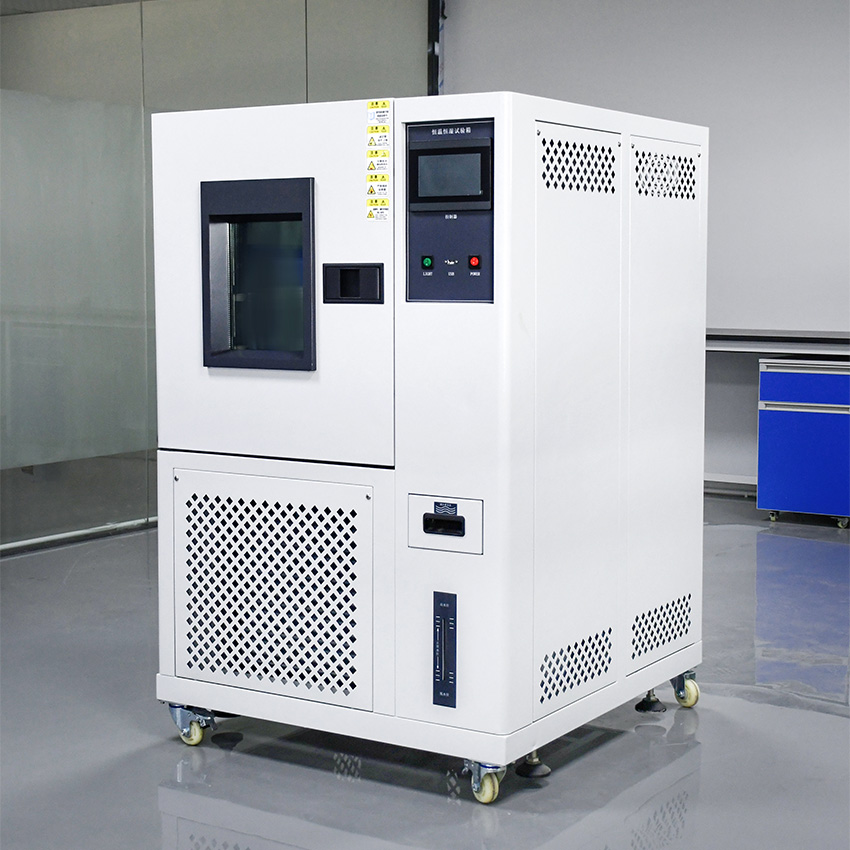

This constant temperature and humidity test chamber (GC-TH series) maintains stable humiture to evaluate material durability. With a Tecumseh refrigeration system, SUS#304 inner box, and double-layer insulated door, it prevents temperature leakage. It meets GB/T2423 and IEC 60068 standards, suitable for testing electronics, food, building materials, and auto parts. The self-developed LCD controller shows real-time data, and built-in universal wheels enable easy movement. Ideal for factories, inspection bureaus, and research labs.
| Quantity: | |
|---|---|
Product Description
The Constant Temperature And Humidity Test Chamber (Models: GC-TH-150, GC-TH-800, GC-TH-1000) is a large-capacity environmental testing solution tailored for bulk or oversized samples. With inner box volumes ranging from 150L to 1000L (e.g., 1000mm×1000mm×1000mm for GC-TH-1000), it maintains stable temperature (-40~150℃) and humidity (20~98% RH) to simulate real-world conditions, making it ideal for testing large components or multiple samples simultaneously. Key advantages include a split humidification cylinder (easy maintenance), Taiwan-imported stainless steel fin heaters (uniform heating), and a fin-type condenser with Taiwan cooling fan (efficient heat dissipation). It complies with 14 international standards (e.g., GB/T2423.1, IEC60068-2-1), ensuring test results are recognized globally.
Large-Capacity Design: Multiple volume options (150L/800L/1000L) accommodate oversized samples like auto dashboards, large electronic enclosures, or bulk building materials. Two adjustable stainless steel shelves maximize space utilization.
Energy-Efficient Refrigeration: Adopts environmentally friendly refrigerants (R404A/R23 from Honeywell) and multi-stage automatic load adjustment technology, reducing energy consumption while maintaining rapid cooling (1℃/min average).
User-Friendly Details: Three-layer vacuum glass viewing window (with LED lighting) allows clear observation of samples without temperature leakage. Removable built-in water tank (with automatic water supply pump) simplifies cleaning and refilling.
This chamber is essential for industries requiring large-scale testing:
Automotive & Aerospace: Testing full-size auto parts (e.g., seats, door panels) or aerospace components for resistance to extreme climates.
Building Materials: Evaluating moisture absorption and thermal stability of bulk materials like insulation boards or flooring.
Electronics Manufacturing: Conducting reliability tests on large electronic assemblies (e.g., server racks, industrial control panels) under constant humidity.
Inspection Bureaus: Performing compliance testing for large batches of products (e.g., household appliances, toys) to meet national or international standards.
Item | Illustrate | ||
Name | Constant temperature and humidity test chamber | ||
Quantity | 1 set | ||
Standard | ⒈ GB11158 Technical Conditions of High Temperature Test Chamber ⒉ GB10589-89 Technical Conditions of Low Temperature Test Chamber ⒊ GB10592-89 Technical conditions of high and low temperature test chamber ⒋ GB/T10586-89 Technical Conditions of Damp Heat Test Chamber ⒌ GB/T2423.1-2008 Low temperature test chamber test method ⒍ GB/T2423.2-2008 Test method for high temperature test chamber ⒎ GB/T2423.3-2006 Damp heat test chamber test method ⒏ GB/T2423.4-2008 Test method for alternating damp heat ⒐ GB/T2423.22-2002 Test method for temperature change ⒑ IEC60068-2-1.1990 Low temperature test chamber test method ⒒ IEC60068-2-2.1974 High temperature test chamber test method ⒓ GJB150.3 high temperature test ⒔ GJB150.4 low temperature test ⒕ GJB150.9 Damp heat test | ||
Features | Perfect shape design, high-quality appearance, low noise equipment, simple operation, safe and reliable | ||
Prohibited items for experimental equipment | 1. Test or store samples of flammable, explosive and volatile substances 2. Corrosive substance samples for testing or storage 3. Testing or storage of biological samples 4. Test or storage of samples of strong electromagnetic emission sources | ||
Model | GC-TH-150 | GC-TH-800 | GC-TH-1000 |
Inner box size | (W*H*D) 500mm*600mm*500mm | (W*H*D) 1000mm*1000mm*800mm | (W*H*D) 1000mm*1000mm*1000mm |
Box volume | 150L | 800L | 1000L |
Temperature range | -40~ 150° | ||
Humidity range | 20～98% | ||
Temperature and humidity control range |
| ||
Control stability | Temperature ±0.5℃; Humidity ±2% | ||
Uniformity of distribution | Temperature ±2.0℃; Humidity ±3.0% | ||
Resolution | Temperature: 0.01℃; Humidity: 0.1%R.H | ||
Heating time | Average 3°C/min, non-linear heating | ||
Cooling time | Average 1℃/min, non-linear cooling | ||
Temperature limit | Maximum temperature +150℃; Minimum temperature -40℃ | ||
Brief introduction of box structure | The whole is divided into three combinations: the laboratory, the electric control cabinet, and the machine room: the upper left side is the laboratory, which is composed of the thermal insulation layer laboratory tank, and the single door to the left is used to enter and exit; the electric control cabinet is located on the right side, and the panel It is mainly composed of a temperature controller, a switch button, and a fault protection indicator light; the engine room is placed below the laboratory and consists of filters, solenoid valves, circuit parts, compressors and other accessories. | ||
Shell material | Steel plate paint | ||
Inner box material | SUS#304 stainless steel plate | ||
Insulation material | Polyurethane rigid foam + glass wool | ||
Press | 1 Silicone foam pressing | ||

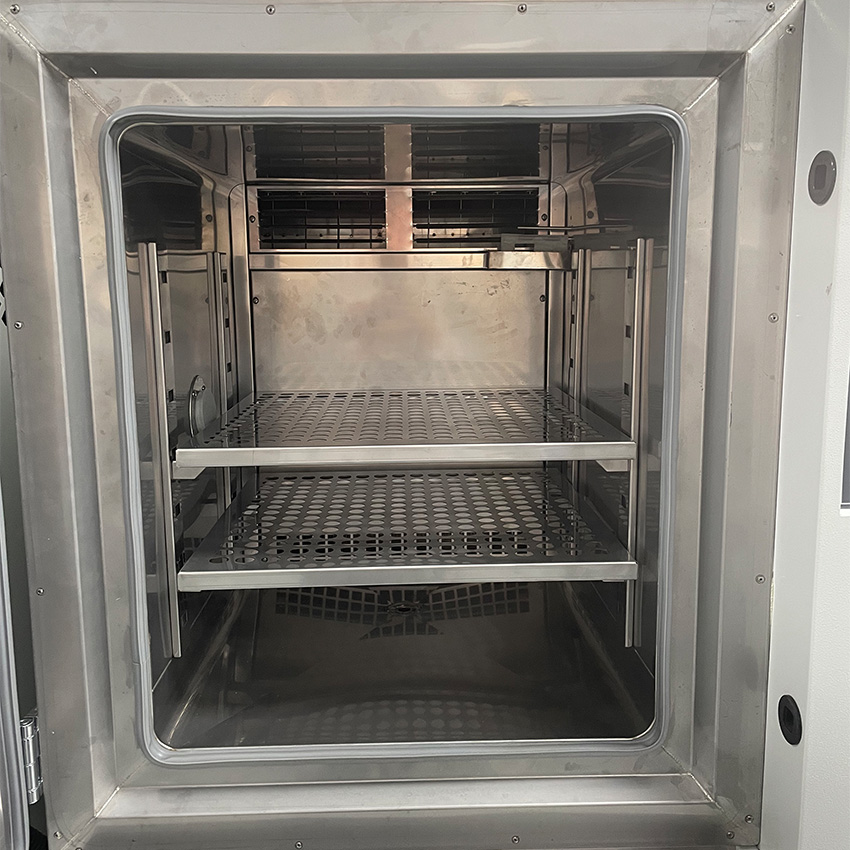

Rack | There are 2 stainless steel shelves with adjustable height in the box | ||
Heater | Adopt Taiwan imported stainless steel fin type radiator tube heating tube | ||
Humidifier | Split humidification cylinder design | ||
Fan | motor Stainless steel extension shaft Multi-wing fan blade aluminum alloy wind wheel Special adjustable louver air supply and circulation system | ||
Box door | Single door, Double door, recessed non-reaction flat handle Three-layer vacuum glass to enlarge the window Electric heating automatic defogging, LED lighting | ||

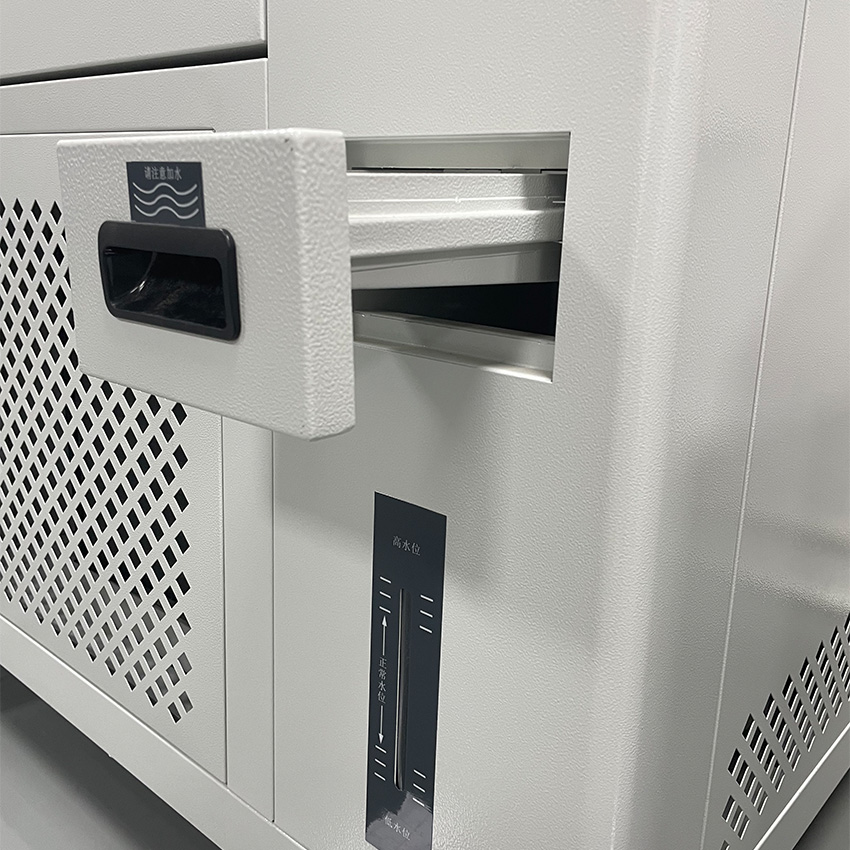

Water tank | 1 built-in removable water tank (easy to clean) 1 automatic water supply pump (automatically transport the water supply from the lower tank to the upper layer) Water shortage alarm device | ||
Tripod | The bottom of the fuselage is equipped with 4 polyurethane movable universal wheels | ||
Refrigeration system features | Multi-stage automatic load capacity adjustment technology Compressor ~ French "Tecumseh" brand hermetic compressor Condenser ~ fin type with Taiwan cooling fan Evaporator ~ Fin type multi-stage automatic load capacity adjustment Expansion valve ~ European and American imported components Refrigerant ~ Eco-friendly Frozen Refrigerant Accessories ~ Desiccant, Oil Separator, Refrigerant Window, etc... | ||
Controller picture |
| ||
Control method | The balance temperature and humidity control system (BTHC) controls the SSR in a P.I.D. way, so that the heating and humidifying amount of the system is equal to the heat and humidity loss, so it can be used stably for a long time. | ||
Controller Features | Independent research and development design Programmable Logic Controller LCD, color screen display Touch screen direct key type Temperature and humidity at the same time programmable controller Chinese and English display 7 inch true color large screen Large LCD controller with high contrast and adjustable backlight function. | ||
Controller Specifications | Accuracy: Temperature ±0.1℃, Humidity ±1%R.H Resolution: Temperature ±0.1, Humidity ±0.1% R.H. With upper and lower limit standby and alarm functions Temperature and humidity input signal selection PT 100Ω×2 (dry bulb and wet bulb) 9 groups of P.I.D control parameter settings, P.I.D automatic calculation Wet and dry bulb automatic correction | ||
Screen display function | Adopt screen dialogue type, no need to input keys, the screen directly touch the options Temperature and humidity setting (SV) and actual (PV) values are directly displayed Can display currently executing program number, segment, remaining time and cycle times ·Operation accumulated time function The temperature and humidity program setting value is displayed in a graph curve, with the real-time display program curve execution function With a separate program editing screen, each page can input at least 5 segments of temperature, humidity and time Chinese and English can be switched arbitrarily. The fault prompt screen is displayed. The screen can be adjusted for backlight The screen display protection function can be set as timer, TIMER or manual shutdown. | ||
Program capacity and control functions | Available program groups: max. 120 PATTENs Usable memory capacity: 1200 SEGMENTS in total Repeatable commands: each command can be executed up to 999 times The production of the program adopts the dialogue style, with functions such as editing, clearing, and inserting. SEGMENTS time setting 0～99Hour59Min With power-off program memory, it will automatically start and continue to execute program functions after power-on Graphical curves can be displayed in real time during program execution With scheduled start and shutdown functions With date and time adjustment function Key and screen lock (LOCK) function | ||
Compressor | French "Tecumseh" brand hermetic compressor | ||
Compressor pictures |
| ||
Condenser | Fin type with Taiwan cooling fan | ||
Evaporator | Fin-type multi-section automatic load capacity adjustment | ||
Expansion valve | European and American imported components | ||
Refrigerant | Environmentally friendly frozen refrigerants (United States Honeywell environmentally friendly refrigerants R404A and R23) | ||
Features | Adopt multi-stage automatic load capacity adjustment technology | ||
Refrigeration Auxiliary | Desiccant, Oil Separator, Refrigerant Window, etc... | ||
Water storage tank | 1 built-in water tank | ||
Water quality | Add purified water or distilled water (tap water will have dirt, which will easily block the pipeline and affect product testing) | ||
Protective device | 1. Zero-crossing thyristor power controller 2. Heating air-burning protection switch 3. Compressor overpressure protection switch 4. Compressor overload and overcurrent protection switch 5. Phase loss protection switch 6. No fuse overload protector 7. Water tank water shortage protection switch 8. Heating and humidifying fast insurance | ||
Use voltage | 220V±10% 50HZ | ||
Power | |||
Environment allowed | 0 ~30℃ | ||
Performance Guaranteed Environment | 5 ~ 25℃ | ||
Screw cap | Ø50mm test hole on the left side of the fuselage with screw cap 1 set | ||
Non-woven | Standard test non-woven fabric 3 pieces | ||
Specifications | Provide a copy when ordering | ||
Manual | A device manual | ||
