Our programmable temperature and humidity test chamber (GC-TH-80/100/225/400) simulates high/low temperature and humidity environments to test material performance—like heat/cold resistance of rubber, plastic, and electronics. It features a French Tecumseh compressor, SUS#304 inner box, and self-developed LCD controller for multi-segment programming. Compliant with GB, IEC, and GJB standards, it’s ideal for quality control in electronics, auto parts, universities, and research institutes. Perfect for detecting fading, shrinkage, and strength changes.
| Quantity: | |
|---|---|
Product Description

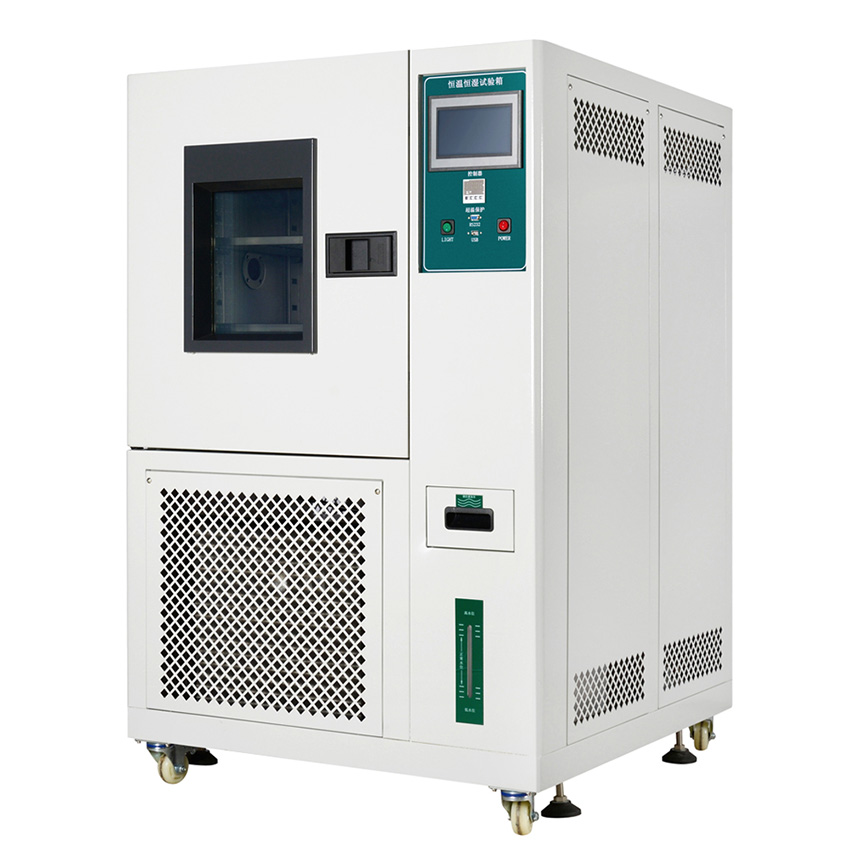

The Programmable Temperature And Humidity Test Chamber (Models: GC-TH-80, GC-TH-100, GC-TH-225, GC-TH-408) is a high-precision environmental simulation device designed to test material performance under extreme temperature and humidity conditions. It replicates high/low temperature (-40~150℃) and high/low humidity (20~98% RH) environments, enabling users to evaluate heat resistance, cold resistance, dry resistance, and humidity resistance of materials—critical for quality control in various industries. Key selling points include a French "Tecumseh" hermetic compressor (for efficient refrigeration), SUS#304 stainless steel inner box (corrosion-resistant and easy to clean), and an independently developed LCD controller (supports multi-segment programming). Unlike basic test chambers, this model offers fast (QUICK) or slope (SLOP) control for temperature and humidity, ensuring flexible adaptation to complex test scenarios.
Precise Environmental Control: Achieves temperature stability of ±0.5℃ and humidity stability of ±2% RH, with a resolution of 0.01℃ (temperature) and 0.1% RH (humidity). The balance temperature and humidity control system (BTHC) uses PID to match heating/humidifying output with energy loss, ensuring long-term stable operation.
Intelligent Operation: 7-inch color LCD touchscreen supports Chinese/English switching, real-time curve display of test parameters, and 120 program groups (1200 segments total) with 999 repeat cycles. Power-off memory function resumes tests automatically after reconnection.
Safety & Durability: Equipped with 8 protective devices, including compressor overpressure protection, water tank shortage alarm, and heating dry-burn protection. Double-layer insulated door with anti-sweat electric heater prevents condensation, while built-in universal wheels (with fixed screws) enable easy movement.
This chamber is widely used in quality control and R&D for:
Electronics & Electricals: Testing semiconductors, batteries, and household appliances to ensure performance under humid or extreme temperature conditions.
Automotive Industry: Evaluating auto parts (e.g., rubber seals, plastic components) for fading, shrinkage, or strength loss in high-temperature/humidity environments.
Academic & Research: Supporting experiments in universities and research institutes for materials science, chemistry, and building materials.
Food & Paper: Assessing shelf life of packaged food and moisture resistance of paper products to prevent degradation.
Item | Illustrate | ||||
Name | Constant temperature and humidity test chamber | ||||
Quantity | 1 set | ||||
Standard | ⒈ GB11158 Technical Conditions of High Temperature Test Chamber ⒉ GB10589-89 Technical Conditions of Low Temperature Test Chamber ⒊ GB10592-89 Technical conditions of high and low temperature test chamber ⒋ GB/T10586-89 Technical Conditions of Damp Heat Test Chamber ⒌ GB/T2423.1-2008 Low temperature test chamber test method ⒍ GB/T2423.2-2008 Test method for high temperature test chamber ⒎ GB/T2423.3-2006 Damp heat test chamber test method ⒏ GB/T2423.4-2008 Test method for alternating damp heat ⒐ GB/T2423.22-2002 Test method for temperature change ⒑ IEC60068-2-1.1990 Low temperature test chamber test method ⒒ IEC60068-2-2.1974 High temperature test chamber test method ⒓ GJB150.3 high temperature test ⒔ GJB150.4 low temperature test ⒕ GJB150.9 Damp heat test | ||||
Features | Perfect shape design, high-quality appearance, low noise equipment, simple operation, safe and reliable | ||||
Prohibited items for experimental equipment | 1. Test or store samples of flammable, explosive and volatile substances 2. Corrosive substance samples for testing or storage 3. Testing or storage of biological samples 4. Test or storage of samples of strong electromagnetic emission sources | ||||
Model | GC-TH-80 | GC-TH-100 | GC-TH-225 | GC-TH-408 | |
Inner box size | (W*H*D) 400mm*500mm*400mm | (W*H*D) 400mm*500mm*500mm | (W*H*D) 500mm*750mm*600mm | (W*H*D) 600mm*850mm*800mm | |
Box volume | 80L | 100L | 225L | 408L | |
Temperature range | -40~ 150° | ||||
Humidity range | 20～98% | ||||
Temperature and humidity control range |
| ||||
Control stability | Temperature ±0.5℃; Humidity ±2% | ||||
Uniformity of distribution | Temperature ±2.0℃; Humidity ±3.0% | ||||
Resolution | Temperature: 0.01℃; Humidity: 0.1%R.H | ||||
Heating time | Average 3°C/min, non-linear heating | ||||
Cooling time | Average 1℃/min, non-linear cooling | ||||
Temperature limit | Maximum temperature +150℃; Minimum temperature -40℃ | ||||
Brief introduction of box structure | The whole is divided into three combinations: the laboratory, the electric control cabinet, and the machine room: the upper left side is the laboratory, which is composed of the thermal insulation layer laboratory tank, and the single door to the left is used to enter and exit; the electric control cabinet is located on the right side, and the panel It is mainly composed of a temperature controller, a switch button, and a fault protection indicator light; the engine room is placed below the laboratory and consists of filters, solenoid valves, circuit parts, compressors and other accessories. | ||||
Shell material | Steel plate paint | ||||
Inner box material | SUS#304 stainless steel plate | ||||
Insulation material | Polyurethane rigid foam + glass wool | ||||
Press | 1 Silicone foam pressing | ||||
Rack | There are 2 stainless steel shelves with adjustable height in the box | ||||
Heater | Adopt Taiwan imported stainless steel fin type radiator tube heating tube | ||||
Humidifier | Split humidification cylinder design | ||||
Fan | motor Stainless steel extension shaft Multi-wing fan blade aluminum alloy wind wheel Special adjustable louver air supply and circulation system | ||||
Box door | Single door, Double door, recessed non-reaction flat handle Three-layer vacuum glass to enlarge the window Electric heating automatic defogging, LED lighting | ||||

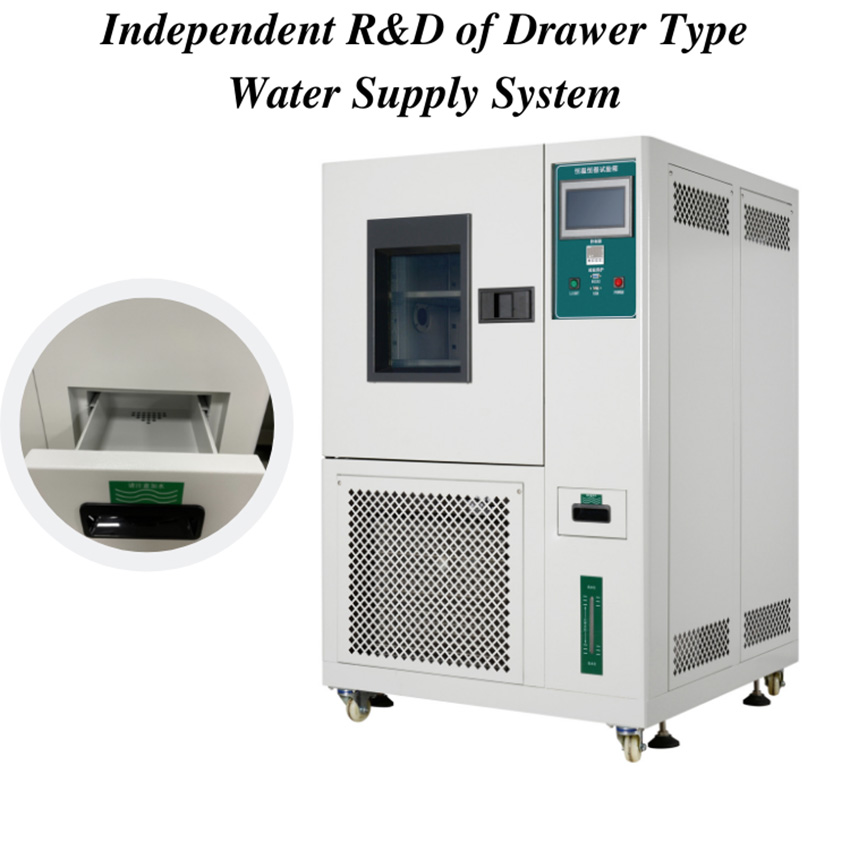

Water tank | 1 built-in removable water tank (easy to clean) 1 automatic water supply pump (automatically transport the water supply from the lower tank to the upper layer) Water shortage alarm device | ||||
Tripod | The bottom of the fuselage is equipped with 4 polyurethane movable universal wheels | ||||
Refrigeration system features | Multi-stage automatic load capacity adjustment technology Compressor ~ French "Tecumseh" brand hermetic compressor Condenser ~ fin type with Taiwan cooling fan Evaporator ~ Fin type multi-stage automatic load capacity adjustment Expansion valve ~ European and American imported components Refrigerant ~ Eco-friendly Frozen Refrigerant Accessories ~ Desiccant, Oil Separator, Refrigerant Window, etc... | ||||

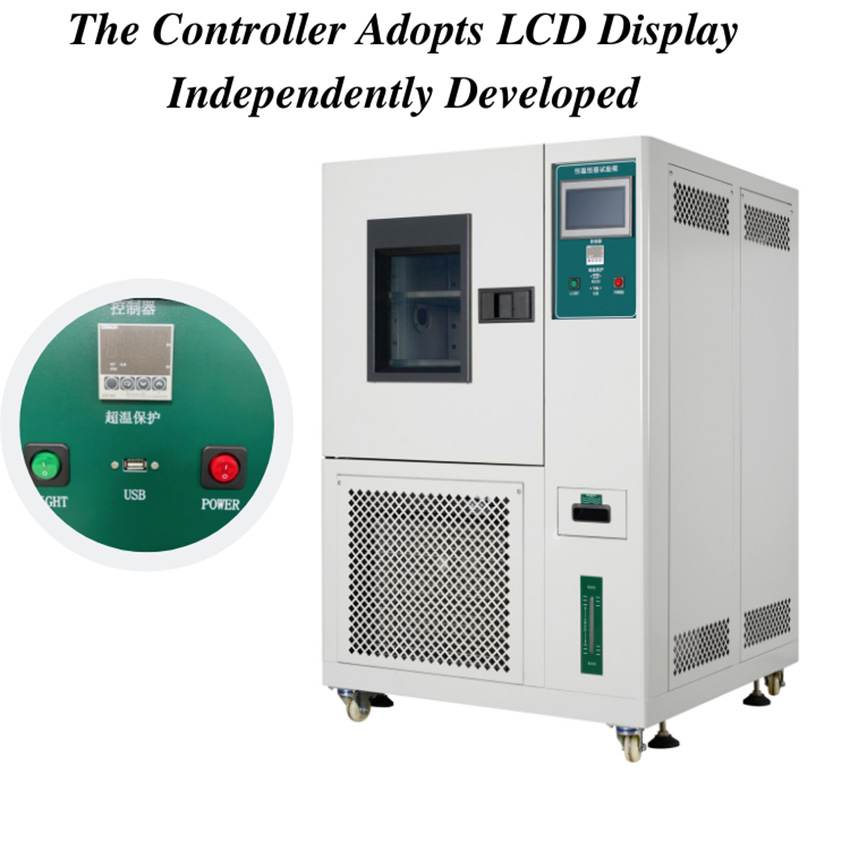

Controller picture |
| ||||
Control method | The balance temperature and humidity control system (BTHC) controls the SSR in a P.I.D. way, so that the heating and humidifying amount of the system is equal to the heat and humidity loss, so it can be used stably for a long time. | ||||

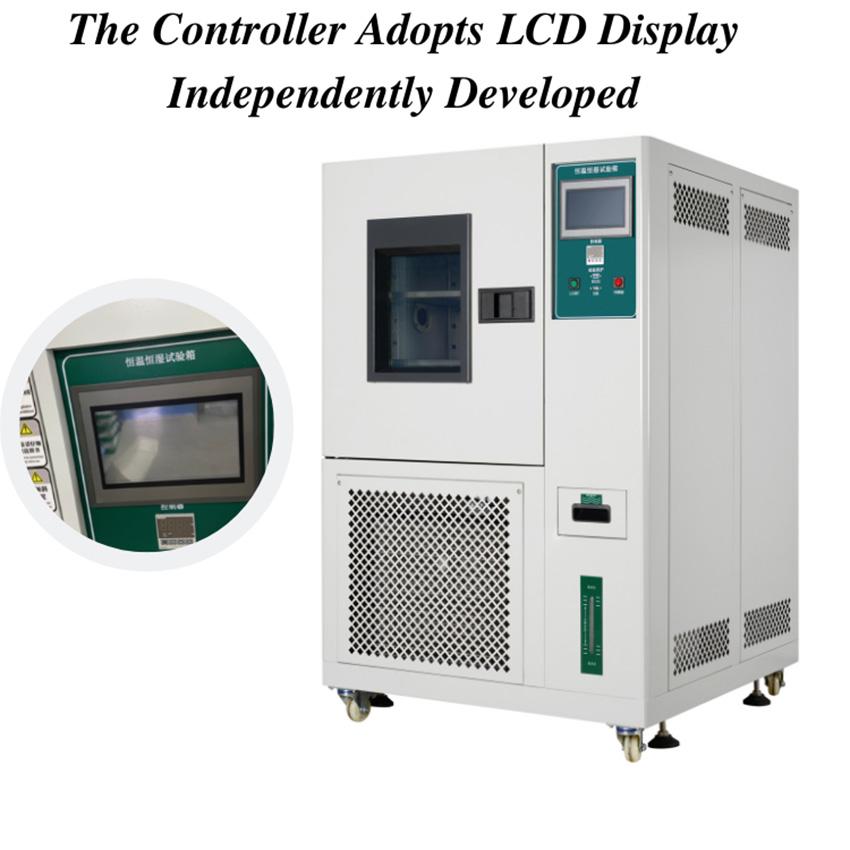

Controller Features | Independent research and development design Programmable Logic Controller LCD, color screen display Touch screen direct key type Temperature and humidity at the same time programmable controller Chinese and English display 7 inch true color large screen Large LCD controller with high contrast and adjustable backlight function. | ||||
Controller Specifications | Accuracy: Temperature ±0.1℃, Humidity ±1%R.H Resolution: Temperature ±0.1, Humidity ±0.1% R.H. With upper and lower limit standby and alarm functions Temperature and humidity input signal selection PT 100Ω×2 (dry bulb and wet bulb) 9 groups of P.I.D control parameter settings, P.I.D automatic calculation Wet and dry bulb automatic correction | ||||
Screen display function | Adopt screen dialogue type, no need to input keys, the screen directly touch the options Temperature and humidity setting (SV) and actual (PV) values are directly displayed Can display currently executing program number, segment, remaining time and cycle times ·Operation accumulated time function The temperature and humidity program setting value is displayed in a graph curve, with the real-time display program curve execution function With a separate program editing screen, each page can input at least 5 segments of temperature, humidity and time Chinese and English can be switched arbitrarily. The fault prompt screen is displayed. The screen can be adjusted for backlight The screen display protection function can be set as timer, TIMER or manual shutdown. | ||||
Program capacity and control functions | Available program groups: max. 120 PATTENs Usable memory capacity: 1200 SEGMENTS in total Repeatable commands: each command can be executed up to 999 times The production of the program adopts the dialogue style, with functions such as editing, clearing, and inserting. SEGMENTS time setting 0～99Hour59Min With power-off program memory, it will automatically start and continue to execute program functions after power-on Graphical curves can be displayed in real time during program execution With scheduled start and shutdown functions With date and time adjustment function Key and screen lock (LOCK) function | ||||

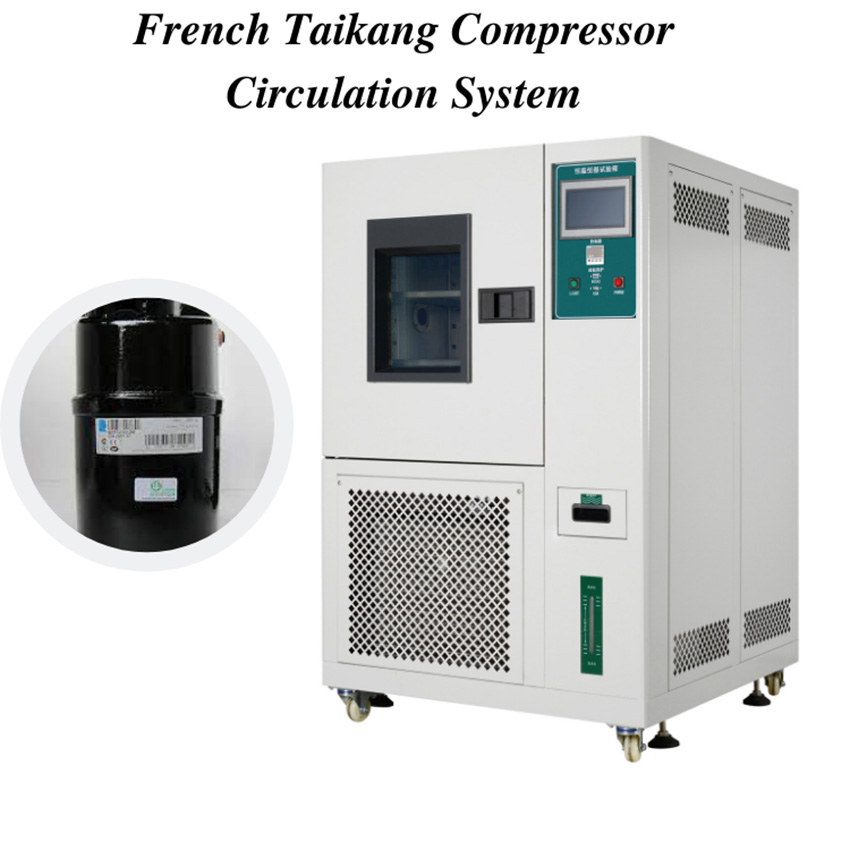

Compressor | French "Tecumseh" brand hermetic compressor | ||||
Compressor pictures |
| ||||
Condenser | Fin type with Taiwan cooling fan | ||||
Evaporator | Fin-type multi-section automatic load capacity adjustment | ||||
Expansion valve | European and American imported components | ||||
Refrigerant | Environmentally friendly frozen refrigerants (United States Honeywell environmentally friendly refrigerants R404A and R23) | ||||
Features | Adopt multi-stage automatic load capacity adjustment technology | ||||
Refrigeration Auxiliary | Desiccant, Oil Separator, Refrigerant Window, etc... | ||||
Water storage tank | 1 built-in water tank | ||||
Water quality | Add purified water or distilled water (tap water will have dirt, which will easily block the pipeline and affect product testing) | ||||
Protective device | 1. Zero-crossing thyristor power controller 2. Heating air-burning protection switch 3. Compressor overpressure protection switch 4. Compressor overload and overcurrent protection switch 5. Phase loss protection switch 6. No fuse overload protector 7. Water tank water shortage protection switch 8. Heating and humidifying fast insurance | ||||
Use voltage | 220V±10% 50HZ | ||||
Power | |||||
Environment allowed | 0 ~30℃ | ||||
Performance Guaranteed Environment | 5 ~ 25℃ | ||||
Screw cap | Ø50mm test hole on the left side of the fuselage with screw cap 1 set | ||||
Non-woven | Standard test non-woven fabric 3 pieces | ||||
Specifications | Provide a copy when ordering | ||||
Manual | A device manual | ||||
