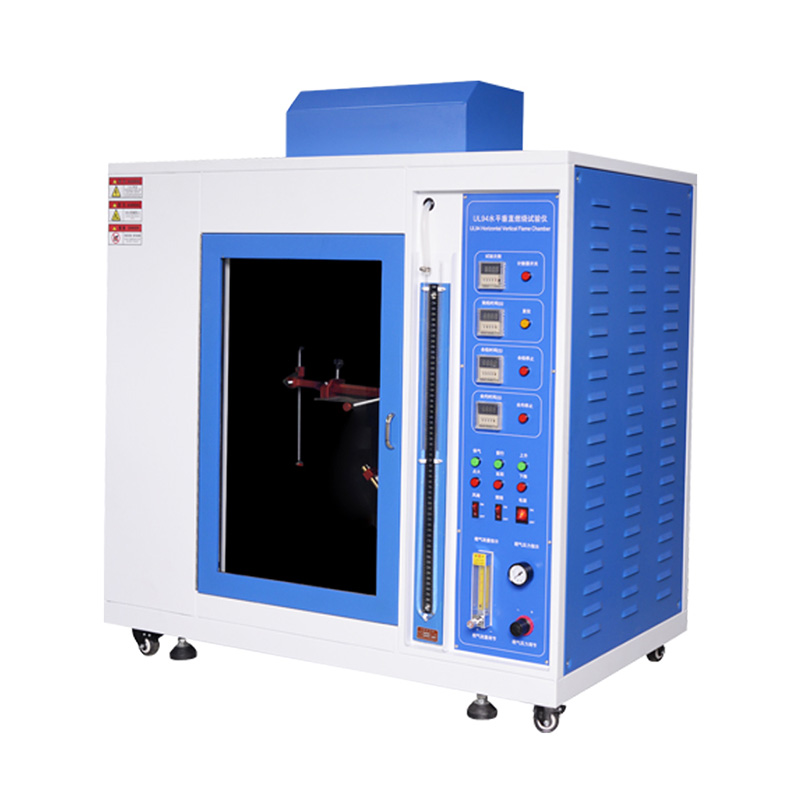

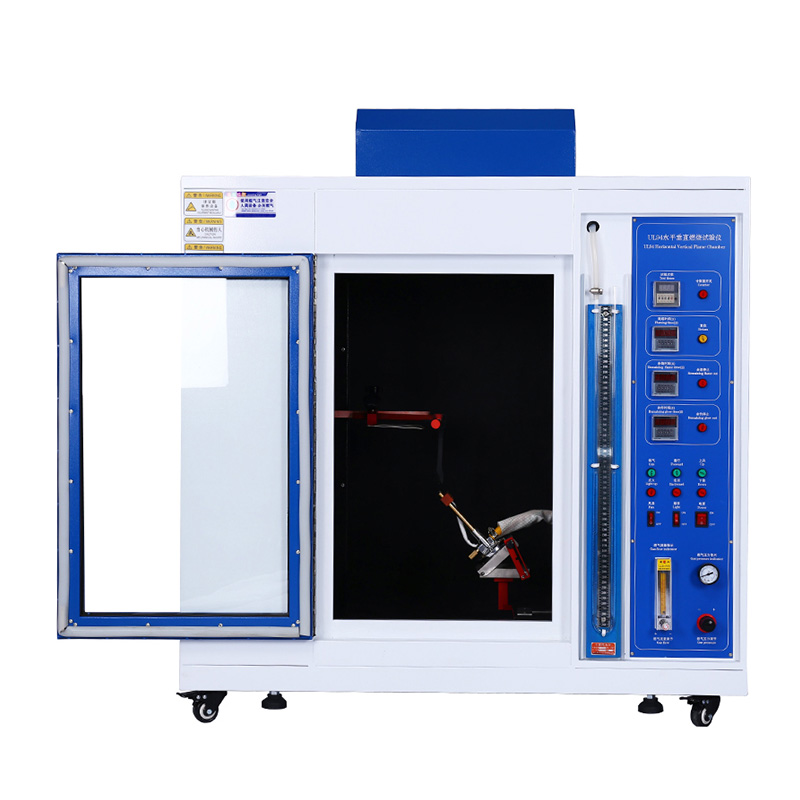

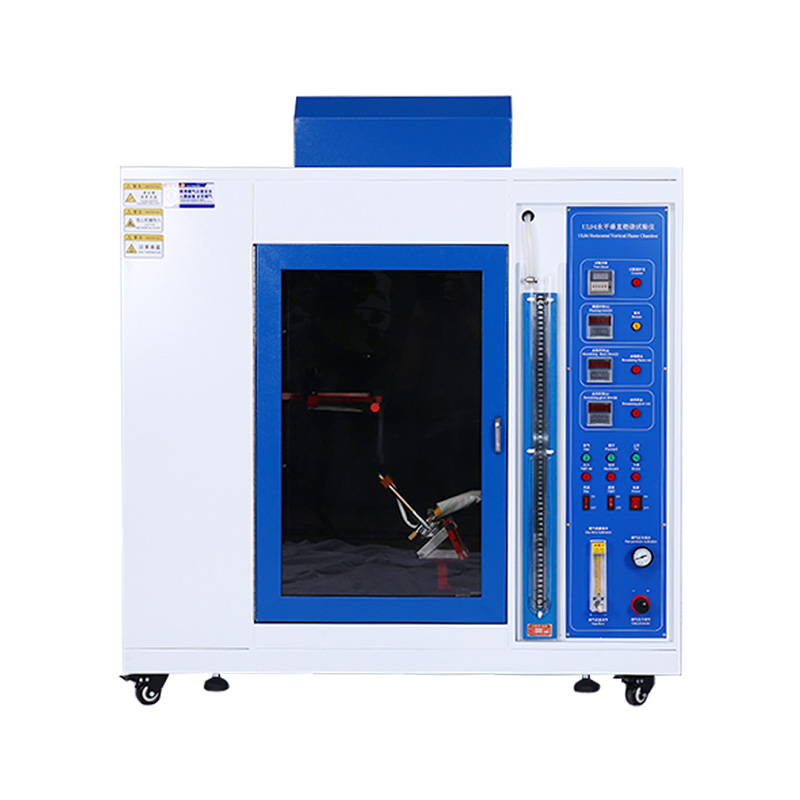

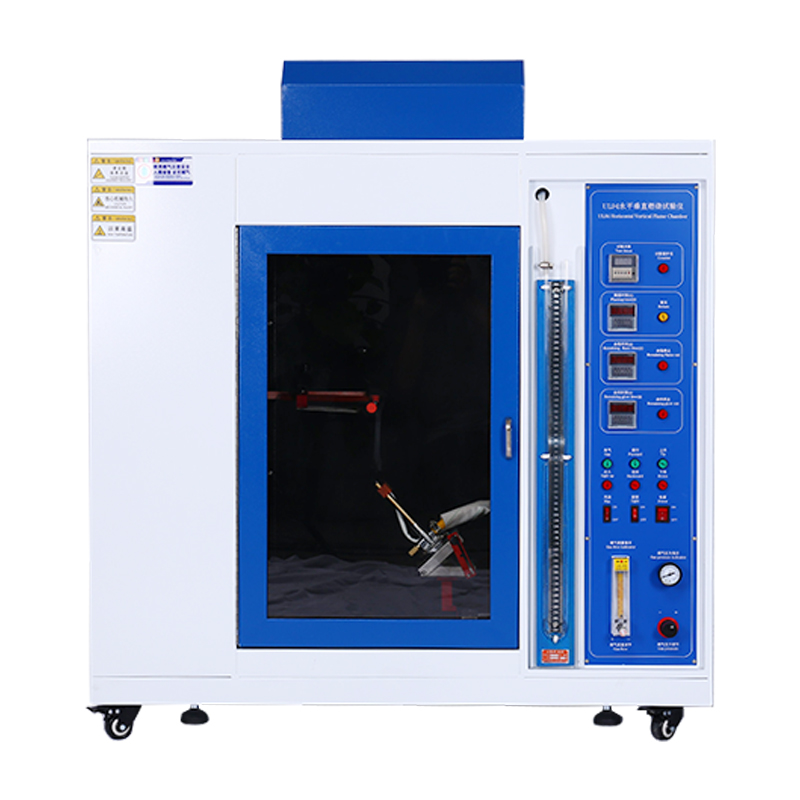

This key-stroke UL94 combustion testing equipment tests plastic flammability via horizontal/vertical burns. Compliant with UL94, GB/T2408, and IEC 60695-11-10, it rates materials (HF-1, HBF, 5V). The key-stroke control ensures easy operation, with auto-ignition, timing (0-99min59s), and burner auto-return. It has a ≥0.5m³ inner box, flame height adjustment (20-175mm), and safety alarms. Suitable for quality control in plastic processing, electronics, and appliance industries.
| Quantity: | |
|---|---|
Product Description
| Inner volume of the box | ≥0.5 cubic meters, with glass observation door |
| Appearance size | 110*650*125CM |
| Flame application time | 0 ~ 99 minutes and 99 seconds can be set |
| After flame time | 0 ~ 99 minutes 99 seconds can be set |
| After burn time | 0 ~ 99 minutes 99 seconds can be set |
| Burning angle | 20°, 45°, 90° (ie 0°) adjustable |
| Dimension parameters of the burner | the inner diameter of the nozzle is Ø9.5mm, the effective length of the nozzle is 100mm, and there is an air adjustment hole |
| Flame height | can be adjusted from 20mm to 175mm according to standard requirements |
| Alignment method | the spline is aligned front, rear, left, and right driven by the motor |
| Product features | It is also equipped with lighting device, air extraction device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-shaped pressure gauge and sample fixture |
| Power supply | AC 220V, 50Hz |
The Key Stroke UL94 Horizontal Vertical Combustion Testing Equipment is a user-friendly, cost-effective solution for testing plastic flammability, tailored for small-to-medium enterprises (SMEs) and laboratories. It uses a key stroke control system (instead of touchscreen) for simple, reliable operation—ideal for users who prefer tactile buttons over touch interfaces. Compliant with UL94, GB/T2408-2008, and IEC60695-11-10 standards, it performs horizontal (20°, 45° angles) and vertical (90° angle) combustion tests, automatically recording critical data (flame time, after-flame time) to determine material ratings (V-0 to HB). Key features include a ≥0.5m³ test chamber (adequate for most plastic samples), automatic ignition, and burner auto-return—balancing functionality with ease of use for daily quality checks.
• Reliable Key Stroke Operation: Tactile buttons (instead of touchscreen) reduce failure risks in dusty or high-humidity environments. Clear LED indicators show test status (e.g., "Flame Applied," "Test Complete"), simplifying operation for new users.
• Stable Combustion System: Burner with adjustable flame height (20~175mm) and fixed Ø9.5mm nozzle ensures consistent flame intensity. Gas pressure regulating valve and U-shaped pressure gauge prevent flame fluctuations.
• Durable & Compact Design: 110650125CM appearance size fits small laboratory spaces. Steel plate outer casing (anti-rust) and heat-resistant sample fixtures (supports various plastic shapes) ensure long-term use.
This equipment is perfect for:
• SMEs & Small Labs: Conducting in-house quality control for plastic parts (e.g., toy components, small electronic casings) without relying on external testing services.
• Educational Institutions: Teaching materials science and fire safety in universities, with simple operation suitable for student experiments.
• Plastic Fabricators: Testing raw plastic materials (e.g., pellets, sheets) before production to ensure compliance with customer flammability requirements.
• Local Inspection Offices: Performing on-site tests for small batches of plastic products (e.g., household goods) to verify safety compliance.
