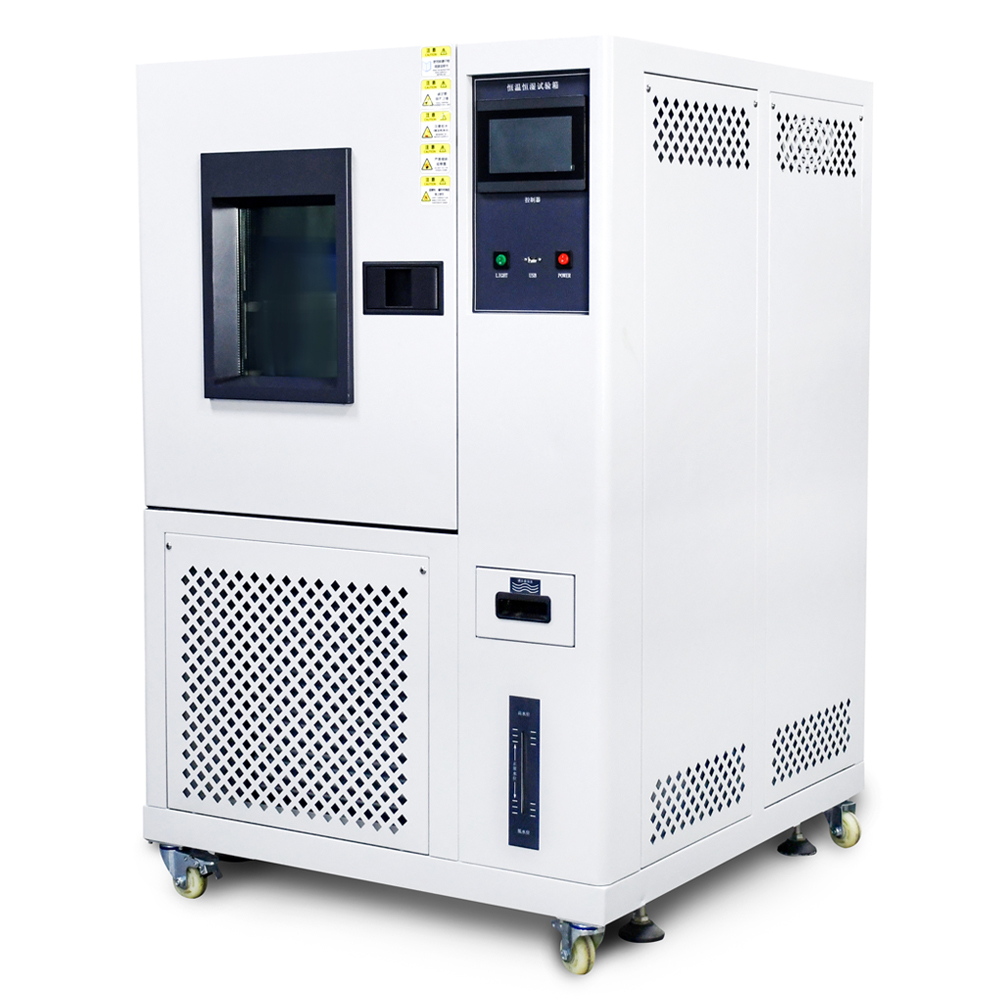

Thermal Shock Test Chamber For Electronics Reliability: How Rapid Temperature Cycling Reveals Latent Defects

Latent field failures in high-density electronics carry devastating financial and reputational costs. When issues like PCB delamination or solder joint fatigue escape the factory, they trigger expensive recalls. They also destroy long-term brand trust. Manufacturers often rely on standard burn-in testing to catch early defects. However, these traditional methods frequently miss critical thermo-mechanical vulnerabilities. These unseen flaws typically stem from Coefficient of Thermal Expansion (CTE) mismatches across complex circuit assemblies.

To uncover these hidden flaws, engineers require an aggressive forced-failure mechanism. Using a thermal shock test chamber effectively validates design margins. It forces extreme stress on physical components to ensure strict compliance with industry standards. Ultimately, this approach protects product reliability long before mass manufacturing begins. It reveals latent structural weaknesses you simply cannot afford to ignore.

Key Takeaways

• Rapid temperature transitions (often <10 seconds) expose structural weaknesses that standard thermal cycling misses.

• Selecting the right thermal shock testing equipment requires balancing thermal recovery time, payload mass, and test methodology (Air-to-Air vs. Liquid-to-Liquid).

• Compliance with stringent aerospace, automotive, and commercial standards (MIL-STD, JEDEC) dictates specific chamber zone configurations.

• Facility infrastructure (power draw, cooling water, floor loading) is a primary, often-overlooked implementation constraint.

The Mechanics of Failure: Why Electronics Require Rapid Temperature Cycling

Standard environmental testing evaluates operational limits. It confirms a device functions properly at stable, elevated temperatures. However, real-world conditions rarely transition smoothly. Extreme environments force accelerated thermo-mechanical stress onto hardware components. Thermal shock forces physical materials to expand and contract violently. This dynamic action reveals vulnerabilities hidden beneath regular operational thresholds.

We use this extreme stress to expose specific latent defects. Without it, modern electronics would fail unpredictably in the field. Rapid transitions uncover several hidden failure modes:

• Solder joint micro-cracking and fatigue: Modern assemblies often use brittle lead-free solders. Ball Grid Array (BGA) components suffer intense shearing forces during temperature shifts. Micro-cracks propagate quickly under shock conditions.

• PCB delamination and via failures: Substrates like FR4 expand at different rates than copper vias or silicon dies. This CTE mismatch tears internal traces apart. It frequently separates distinct material layers within complex circuit boards.

• Hermetic seal breaches: Integrated circuit packaging relies on absolute isolation. Sudden temperature shocks crack epoxy resins. They also compromise ceramic seals, allowing moisture ingress over time.

Engineers often confuse distinct testing methods. You must understand the physical difference. A rapid temperature cycling chamber focuses heavily on the rate-of-change. It controls linear ramping speeds, perhaps altering temperatures by 15°C per minute. Conversely, a temperature shock chamber focuses on near-instantaneous transfer. It physically moves the product between separate, pre-conditioned extreme environments in under ten seconds.

Solution Approaches: Evaluating Test Methodologies and Chamber Types

Choosing the correct testing methodology determines your defect detection rate. You must align the chamber type directly against your specific industry requirements. The primary division exists between air-based and fluid-based thermal transfer.

Air-to-Air testing is the most common approach for standard electronics. These systems use mechanical elevators or pneumatic dampers. They move the product or direct the airflow between distinct hot and cold zones. Air provides a gentler thermal transfer rate than liquids. It works perfectly for consumer electronics, automotive control modules, and standard telecommunications equipment.

Liquid-to-Liquid testing takes stress to the absolute extreme. This method utilizes inert dielectric fluids. These fluids offer exceptionally high heat transfer coefficients. When you plunge a component directly from boiling fluid into freezing fluid, the thermal shock is immediate. Defense contractors and aerospace engineers require this method. It uncovers flaws in mission-critical, high-stress military components.

Beyond the medium, you must evaluate zone configurations. A Two-Zone (Hot/Cold) configuration provides direct, immediate transfer. The elevator moves the basket straight from the hot zone into the cold zone. This configuration serves as the standard approach for MIL-STD-883 compliance.

Alternatively, a Three-Zone (Hot/Ambient/Cold) system incorporates a specific dwell time at room temperature. The product pauses briefly in the middle of the transition. This simulates specific operational environments. It helps engineers observe component relaxation before forcing the next extreme shock.

Key Evaluation Dimensions for Thermal Shock Testing Equipment

Procurement teams often look at raw temperature ranges. However, evaluating thermal shock testing equipment requires a deeper focus on performance outcomes. You must analyze specific dimensions to ensure test validity and repeatable results.

1. Thermal Recovery Time: This metric dictates compliance. Strict test standards usually require the product surface temperature to fully recover within 15 minutes of transfer. Recovery time depends heavily on the actual specimen mass. Heavy copper payloads drag down recovery speeds significantly.

2. Transfer Time: The system must physically move the product in under 10 seconds. You must assess the mechanical reliability of the transfer mechanism. Heavy-duty baskets or dampers face intense continuous stress. Weak pneumatics will eventually fail under repetitive cycling.

3. Control and Data Logging: Modern testing demands high-speed data acquisition. You need robust software to prove compliance to your end customers. Advanced controllers track the specimen's actual thermal profile using attached thermocouples. They do not merely log the chamber's internal air temperature.

4. Scalability and Footprint: Chamber volume directly impacts facility planning. You must accurately size the environmental test chamber. Consider current prototype batches alongside future production lot sampling. A well-sized system acts as a high-throughput electronics reliability tester within automated QA lines.

Balancing these dimensions prevents severe bottlenecks. A chamber might hit extreme temperatures perfectly when empty. Yet, it could fail standard recovery time limits when fully loaded. You must scrutinize performance metrics under realistic payload conditions.

Implementation Realities and Rollout Risks

Deploying extreme temperature equipment introduces complex facility challenges. Many organizations purchase a system without analyzing their physical building constraints. Infrastructure demands dictate where you can successfully install the equipment.

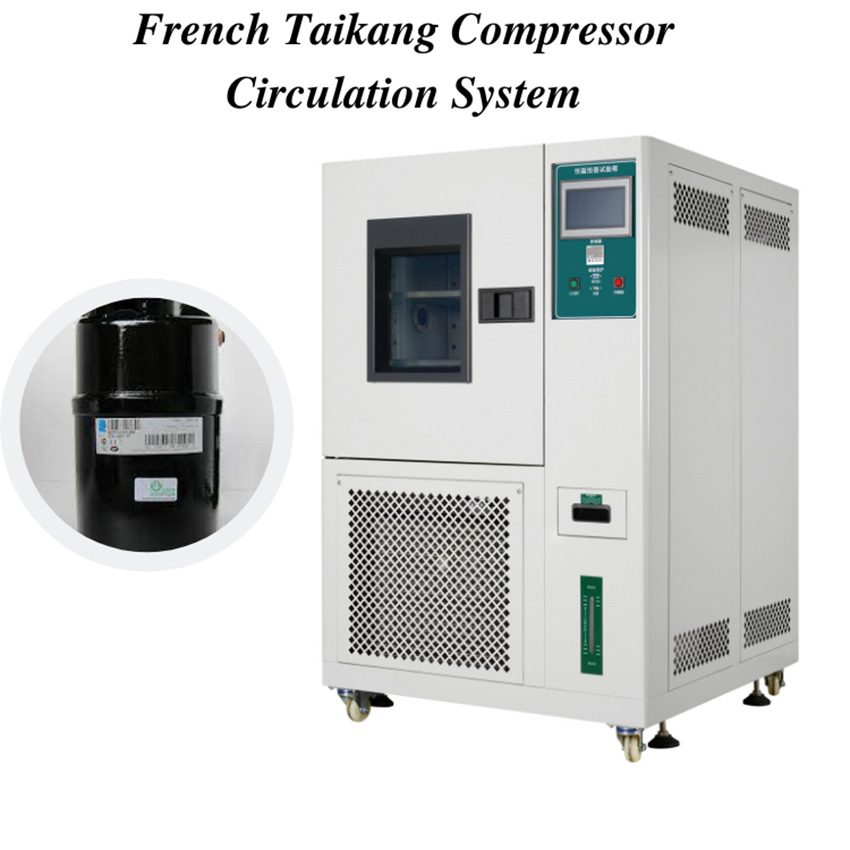

These units pull tremendous electrical power. High-amperage electrical requirements are standard. Cascade refrigeration systems use multiple large compressors running simultaneously. Furthermore, high-capacity systems rarely rely on ambient air cooling. They require dedicated chilled water systems. You must verify your facility possesses adequate plumbing and cooling tower capacity to handle the rejected heat.

Defrost cycles strongly impact overall testing uptime. Address the physical reality of moisture ingress. Every time you open the door, ambient humidity enters. Frost builds up rapidly in the cold zone. Thick ice insulates the cooling coils, destroying heat transfer efficiency. Evaluate chambers based strictly on their automated defrost capabilities. Smart defrost algorithms maintain continuous testing cycles without demanding manual intervention.

Maintain a highly skeptical perspective during vendor discussions. Avoid believing vendor claims of entirely "maintenance-free" systems. Acknowledge the extreme physics at play. Elevator mechanisms endure harsh temperature swings every few minutes. Cascade refrigeration systems operate under intense pressure differentials. These are undeniably high-wear components. They require strict, documented preventive maintenance schedules. Ignoring maintenance guarantees catastrophic downtime.

Shortlisting Logic: Aligning Specs with Testing Standards

You cannot buy a chamber based purely on arbitrary temperature limits. You must utilize a compliance-driven selection process. Different industries mandate distinct testing protocols. Cross-reference chamber capabilities directly against the exact standards your clients demand.

Consider these dominant industry standards:

• MIL-STD-202 / MIL-STD-883: These govern defense and aerospace sectors. They require extreme two-zone transfers and very strict thermal recovery times.

• JEDEC JESD22-A106: This standard targets solid-state devices. It focuses heavily on the exact placement of thermocouples and precise temperature soak times.

• IEC 60068-2-14: This covers general commercial electronics. It offers broader flexibility regarding transition times but still demands rigorous data logging.

These standards dictate your next-step actions. Guide your engineering team in building a precise procurement specification document. Do not accept quotes based on empty-chamber performance. Instead, advise your team to request vendor thermal modeling. Demand calculations based on the exact mass and material properties of your specific PCB assembly.

Providing real-world material data forces the vendor to prove their system works for you. Copper, FR4, and aluminum all absorb heat differently. A supplier must demonstrate their compressors can pull down the temperature of your specific payload within the 15-minute standard window.

Conclusion

Investing in advanced thermal shock equipment shifts defect discovery away from the end-user. It brings critical failure analysis safely back into your R&D and QA labs. This proactive strategy shields your brand reputation. It stops latent flaws from ever reaching the consumer market.

You must prioritize performance and durability over initial price tags. Emphasize that the cheapest chamber often costs more in failed tests, extended recovery times, and high utility bills. Substandard equipment constantly bottlenecks production and invalidates compliance data.

Audit your current testing standards today. Gather your engineering team to review customer compliance requirements. Consult directly with an application engineer to perform a realistic payload calculation. Accurate sizing ensures your new chamber performs reliably under maximum stress.

FAQ

Q: What is the difference between a thermal shock test chamber and a standard environmental test chamber?

A: A standard environmental chamber features a single zone where temperatures ramp up and down gradually. It tests broad operational limits. A thermal shock chamber features multiple pre-conditioned zones (hot and cold). It uses an automated transfer mechanism to move products instantly between these extreme zones, creating violent, sudden stress to expose structural weaknesses.

Q: How do you determine the required thermal recovery time?

A: Required thermal recovery time is governed directly by your specific testing standard, such as MIL-STD or JEDEC. These protocols typically mandate that the product's actual surface temperature must fully stabilize at the new extreme within 15 minutes of the physical transfer. Payload mass heavily influences this capability.

Q: Is there a direct correlation between thermal shock cycles and real-world product lifespan?

A: No, it is not a direct 1:1 predictor of chronological field lifespan. It is an accelerated stress test designed specifically to find structural limits and validate engineering margins. The violent transitions force immediate mechanical failures, confirming whether the design can survive worst-case scenarios without CTE mismatch issues.
