Quality control in plastic manufacturing demands precise mechanical property validation. You cannot afford inaccurate yield strength or elongation data. Errors lead directly to material waste, unexpected product failure, and serious compliance breaches. Selecting a universal tensile testing machine requires more than basic pulling capabilities today. You must carefully match specific polymer characteristics—like rigid plastics versus highly ductile elastomers—with exact load cell ranges. You also need precise grip mechanics and robust software traceability.
This article provides a vendor-neutral, technical framework for evaluating testing systems. We will help you shortlist equipment based on verifiable performance criteria. You will learn how to align operational realities with strict standard compliance. This ensures your lab achieves lasting, audit-proof quality assurance.
Force Range Sizing: Load cells must be sized so that the plastic's expected failure point falls within the 20% to 80% range of the cell’s total capacity for maximum accuracy.
Fixture Dependency: Up to 70% of plastic testing errors (e.g., jaw breaks, slippage) stem from incorrect grip selection rather than machine inaccuracy.
Standardization: Validating a machine requires verifying its out-of-the-box compliance with exact standards like ASTM D638 (plastics) and ISO 527.
Scalability: A viable system must allow for modular upgrades (e.g., adding video extensometers or environmental chambers) without requiring a complete frame replacement.
Frame your equipment search around exact industry standards. Your lab likely adheres to specific testing protocols for batch release. Common plastic standards include ASTM D638, ASTM D790, ISO 527, and ASTM D5458. Always anchor your technical requirements to these defining documents. Building a specification sheet without standard alignment invites workflow failures later.
Verify your chosen universal testing equipment handles necessary static applications natively. Standard requirements usually span tensile, flexural (3-point or 4-point bending), and compression tests. Ensure the machine seamlessly transitions between these modes. Changing out platens and grips should feel intuitive for your technicians.
Understand your specific elongation realities. Rigid plastics require high force capacity but minimal crosshead travel. They break quickly under tension. Conversely, highly ductile polymers and elastomers demand extended frame heights. They need high-travel crossheads to capture complete deformation cycles. A standard-height frame will crash before a highly elastic rubber specimen breaks.
Do not accept vague claims of standard compliance. You must verify actual software performance during the evaluation phase. Demand documentation showing how default templates map directly to your ASTM or ISO requirements. Ask vendors to prove their system correctly calculates the secant modulus specifically defined by your standard.
Identify strict ASTM or ISO protocols for your specific material category.
Verify multi-test capability across tensile, compression, and flexural profiles.
Match physical frame height to polymer ductility and maximum elongation limits.
Request detailed software template documentation before purchasing.
Accurate testing begins by calculating precise load cell requirements. Over-sizing your load cell severely reduces resolution at lower forces. Under-sizing it risks frequent mechanical damage from unexpected load spikes. Establish a solid rule of thumb for your lab. Always target the 20% to 80% mid-range of your load cell capacity for expected failure points. This ensures maximum signal accuracy.
Frame architecture dictates both footprint and capability. You must consider these two primary configurations for your facility:
Single-Column Frames: Typically rated up to 5 kN. They work beautifully for thin films, threads, and flexible plastics. They also suit footprint-constrained laboratories perfectly.

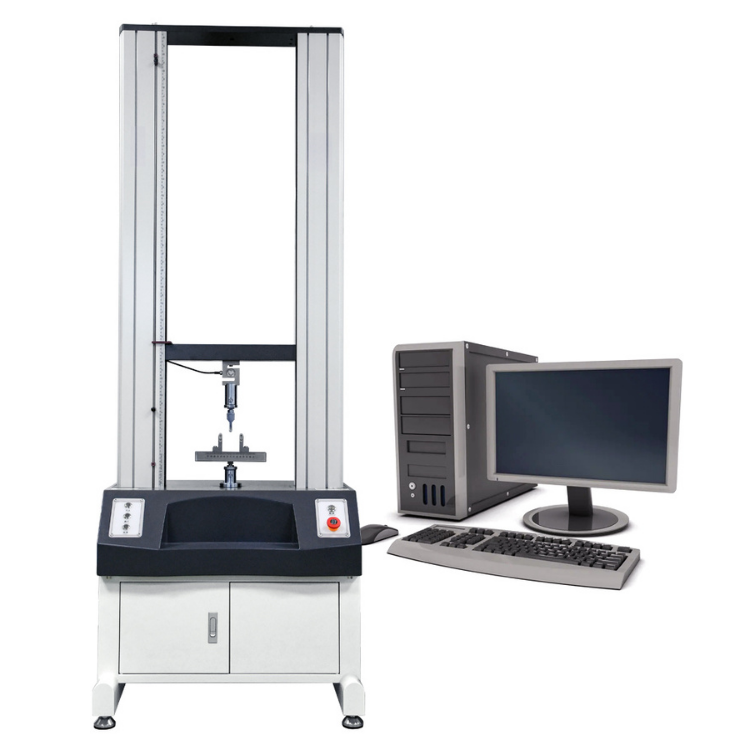

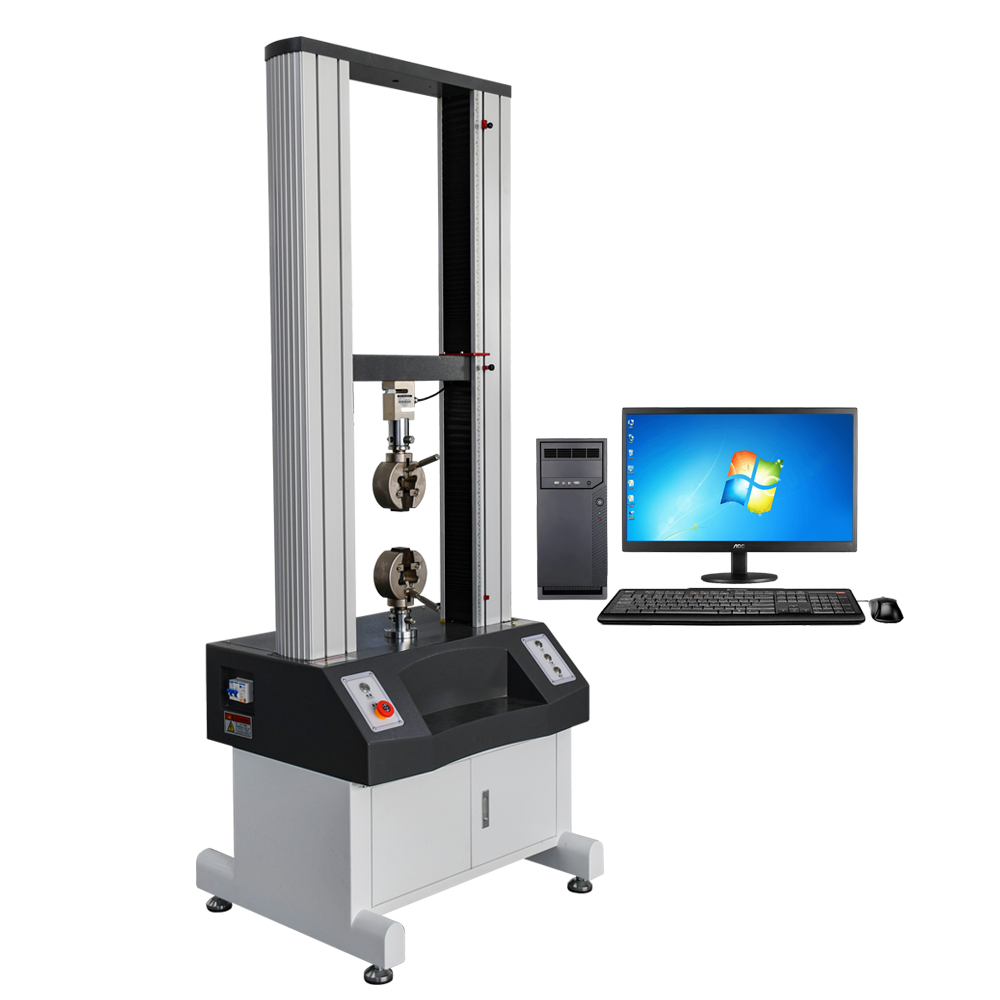

Dual-Column Frames: Typically range from 10 kN to 50+ kN. You need these robust frames for rigid plastics and reinforced composites. They are also mandatory when tests require installing large environmental chambers.
Evaluate drive system accuracy carefully. Closed-loop electromechanical drives maintain strict, constant testing speeds. This variable proves critical in polymer testing. Strain rate directly impacts your yield strength results. Minor speed variations compromise standard compliance. Superior drive motors guarantee your results remain reproducible across different shifts.
A properly sized material strength testing machine prevents long-term workflow bottlenecks. It ensures your QA team processes batches efficiently without sacrificing vital data resolution.
Frame Architecture | Typical Force Range | Ideal Polymer Applications | Lab Footprint |
|---|---|---|---|
Single-Column | Up to 5 kN | Thin films, elastomers, flexible plastics | Compact / Benchtop |
Dual-Column | 10 kN - 50+ kN | Rigid plastics, composites, bulky samples | Moderate to Large |
Improper fixturing ruins perfect load cell data. The slippage versus jaw break dilemma represents a massive implementation risk. Too little grip pressure causes sample slipping, producing artificially high strain readings. Too much pressure causes premature specimen failure directly at the grip face. Both scenarios invalidate your test data immediately.
Select the right grips based on your specific plastic types. Mechanical wedge grips work best for rigid plastics. Their internal tightening force increases naturally as the applied load increases. Pneumatic grips are essential for soft plastics and delicate films. They provide consistent, adjustable clamping pressure. This prevents specimen damage and speeds up high-volume laboratory workflows.
Consider grip face materials closely. Use serrated faces for hard plastics to ensure maximum bite. Use rubber-coated or smooth faces for thin films. These softer faces prevent tearing delicate specimens during initial tension. Swapping faces should take seconds, not minutes.
Crosshead displacement data cannot produce accurate plastic modulus calculations. It includes the physical compliance of your frame and grips. You must use dedicated extensometers for true strain measurement. Clip-on extensometers offer cost-effective precision for rigid samples. Non-contact video extensometers are mandatory for high-elongation polymers. They are also vital for plastics that break violently and might damage physical clip-on devices.
Positioning the right fixtures transforms a basic frame into a high-precision plastic tensile tester. Never treat grips as an afterthought in your procurement process.
Hardware generates raw data. Software gives it meaning. A reliable polymer testing machine relies heavily on its analytical software. It must quickly interpret complex plastic behaviors. The system needs to identify correct yield points automatically. It should calculate secant modulus flawlessly and detect break limits reliably without constant manual overrides.
Data integrity matters immensely for quality audits. Evaluate software for 21 CFR Part 11 compliance if you test medical or pharmaceutical packaging. General ISO 9001 environments also demand strict audit trails. Look for secure user roles. Ensure the system generates unalterable test logs to maintain absolute trustworthiness.
Watch out for usability risks. Complex, legacy software architectures increase operator training time drastically. Clunky interfaces lead to frequent manual input errors. Always demand a live demonstration before making a decision. Ask the vendor to perform a test setup from scratch to gauge actual usability. If your technicians struggle to build a method, they will avoid using the machine.
Consider export and integration capabilities. Assess API availability. Look for native integrations with existing Laboratory Information Management Systems (LIMS). Direct connections to your ERP prevent manual data transcription errors. This automated data flow speeds up batch release times and removes human error from the reporting chain.
Evaluate vendors based on long-term hardware flexibility. Warn your procurement team against restrictive proprietary ecosystems. Some vendors lock users into proprietary load cells. Others use grips featuring non-standard connection pins. These closed systems severely limit your future upgrade options. Choose open-architecture systems that accept standard industry adapters. This allows you to integrate specialized third-party fixtures later.
Analyze maintenance agreements and Support Service Level Agreements (SLAs). Assess the vendor's regional service footprint thoroughly. A broken machine completely stops your production line. You must verify guaranteed response times. Ensure local spare part availability to prevent extended downtimes. A reliable partner offers remote diagnostic support to resolve software glitches instantly.
Rely heavily on a proof-of-concept during shortlisting. This final step guarantees equipment suitability. Send the vendor your actual plastic specimens. Ask them to test the samples using the exact proposed tensile strength tester. Evaluate the returned test report. Check it for calculation accuracy, graph clarity, and strict standard adherence. If they cannot test your material perfectly in their application lab, they will not do it better in yours.
Follow these best practices during vendor evaluation:
Request a live demo of the exact proposed configuration.
Verify standard pin sizes for all future grips and fixtures.
Demand written SLAs detailing local technician response times.
Conduct a blind proof-of-concept test using your hardest-to-measure material.
Selecting the perfect universal testing machine for plastic QC demands careful balance. You must weigh your maximum anticipated force against your low-end resolution needs. You must also match grip mechanics and face materials to specific polymer hardness levels. Proper extensometry ensures your data reflects actual material strain, not structural frame flex.
Take immediate action before requesting a formal quote. Compile a comprehensive technical specification sheet. Detail your required ASTM or ISO standards explicitly. List your maximum expected load and exact specimen dimensions. Use this unified document to force vendors to provide tailored, exact-match configurations. This rigorous approach guarantees reliable, audit-proof quality control for your entire plastic manufacturing line.
A: Yes, but it requires interchangeable load cells to maintain resolution across vastly different force requirements. You must swap mechanical wedge grips for pneumatic grips. The frame height must also accommodate the high elongation typical of rubber materials.
A: Most plastic testing standards require a minimum accuracy of ±0.5% of the indicated reading down to 1/100th or 1/200th of the load cell capacity. This aligns with Class 0.5 specifications per ISO 7500-1 or ASTM E4 standards.
A: Yes. Crosshead travel includes the compliance or physical flex of the machine frame and grips. For accurate Young's Modulus and true strain calculations in plastics, a direct-on-specimen extensometer is strictly required by ASTM D638.
