Stop treating Rubber Testing Equipment as a mere capital expense. You must reframe this procurement as a direct intervention against high product rejection rates, compliance failures, and material waste. Industrial manufacturers face incredibly strict performance requirements today. Sectors like automotive, aerospace, and medical manufacturing leave no room for error. A lack of precise, standardized testing leads directly to premature material aging or catastrophic field defects. When a critical rubber seal fails inside an engine, the fallout extends far beyond a scrapped batch.
This guide provides a comprehensive framework to evaluate, specify, and select the right testing infrastructure. We will base these decisions on material properties, compliance standards, and long-term operational returns. You will learn how to match machine architecture to your specific production demands. We will help you secure testing reliability while mitigating implementation risks across your manufacturing lines.
Proper equipment selection aligns directly with ASTM/ISO standards (e.g., ASTM E4, ASTM D76), safeguarding against compliance risks.
The core UTM (Universal Testing Machine) must be carefully matched with appropriate force capacities, slip-resistant grips, and extensometers for valid results.
Evaluating raw compound behavior requires specialized indexers, while cured products demand precise mechanical and environmental stress simulators.
Total Cost of Ownership (TCO) extends beyond the initial purchase to include calibration frequency, software integration, and operator training.
Many plant managers view quality control labs as unavoidable overhead. This mindset limits manufacturing potential. Modern testing equipment acts as a dedicated profit center. It catches flaws before they compound into massive financial losses.
Identifying compound flaws before full-scale vulcanization prevents costly batch scrapping. Uncured rubber exhibits specific flow behaviors. If a mix contains improper curing agent ratios, you want to know immediately. Detecting this anomaly at the mixing stage saves thousands of dollars. You avoid molding defective parts entirely. It prevents wasting valuable press time on doomed product batches.
Precise baseline testing reduces material overuse. It ensures uniform lot-to-lot performance across production runs. Manufacturers often over-engineer products to compensate for unknown variables. They add extra raw material to guarantee minimum strength requirements. Accurate testing removes this guesswork. You can optimize compound formulations safely. This optimization slashes raw material consumption while maintaining critical performance thresholds.
Adhering to verifiable international safety standards provides deep financial and legal protection. Frameworks like ASTM, ISO, EN, and DIN establish strict baseline requirements. Failing to meet them opens your company to severe liability. If a custom automotive gasket fails, investigators will request your testing records. Demonstrating rigorous, standards-compliant testing protocols shields your business from negligence claims.
Automated, tamper-proof reporting software builds immediate client confidence. Tier-1 automotive suppliers demand irrefutable proof of product durability. Modern testing machines generate secure PDF certificates directly from the test frame. You can hand clients verifiable data proving your batches meet every specification. This transparency strengthens vendor relationships and helps win lucrative supply contracts.
You cannot buy a testing machine based on specs alone. You must map your specific material behaviors to the corresponding machine architecture. Raw compounds behave differently than fully cured finished goods. Each state requires distinct testing methodologies.
Testing uncured rubber and thermoplastic elastomers (TPE) is non-negotiable. These raw materials must flow smoothly into complex mold cavities. If viscosity fluctuates, you face short shots, air traps, or flash defects.
You must specify the use of a Melt Flow Indexer for Plastic And Rubber. This equipment accurately determines flow rates and molecular structure consistency. It pushes heated raw material through a standardized die under a specific weight. The resulting extrudate weight gives you the Melt Mass-Flow Rate (MFR).

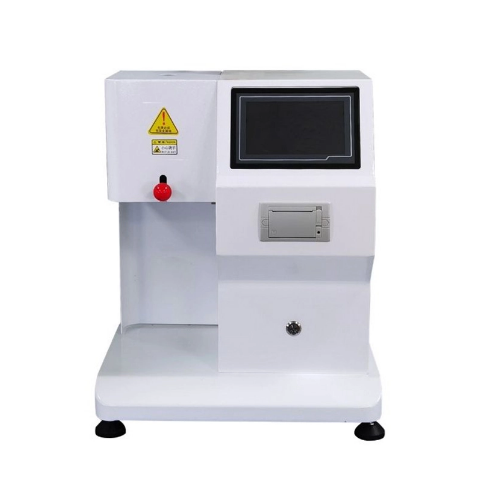

Always look for modern workflow enhancements. A Touch Screen Melt Flow Rate Tester drastically reduces operator error. It simplifies parameter setup for different compound batches. Operators can save testing profiles directly to the device. They simply tap the screen to load the exact temperature and timing parameters for a specific TPE formulation.
Fully cured products require rigorous mechanical stress testing. A Universal Testing Machine (UTM) serves as the core workhorse for these evaluations.
Tensile & Elongation: This measures the force required to break a sample. It assesses elasticity and ultimate tensile strength. Rubber samples often stretch significantly before breaking. You need a tall testing frame to accommodate high elongation without bottoming out.
Compression & Flexural: This quantifies load-bearing capacity and bend resistance. It proves essential for bridge bearing pads, engine mounts, and heavy-duty seals.
Tear & Peel: This evaluates stress limits for gaskets, seals, and adhesives. It measures how easily a small nick in the rubber propagates into a complete tear under tension.
Hardness directly correlates to a rubber product's flexibility and sealing ability. You must differentiate between scales based on material rigidity.
Chart: Rubber Hardness & Impact Testing Classifications | |||
Test Category | Primary Application | Typical Materials Tested | Mechanism of Action |
|---|---|---|---|
Shore A Hardness | Softer, flexible rubbers | Silicone, tire treads, soft O-rings | Measures resistance to a blunt indenter under a specific spring force. |
Shore D Hardness | Harder rubbers and plastics | Hard cast polyurethanes, rigid TPEs | Measures resistance to a sharp, pointed indenter under higher spring force. |
Charpy Impact | Sudden force absorption | Rigid plastic and hard rubber components | Strikes a horizontally supported beam opposite a machined notch. |
Izod Impact | Sudden force absorption | Notched rigid polymers | Strikes a vertically clamped cantilevered beam near the free end. |
Rubber degrades rapidly under harsh environmental conditions. Mechanical testing alone cannot predict long-term field performance. You must assess equipment needs for environmental simulation.

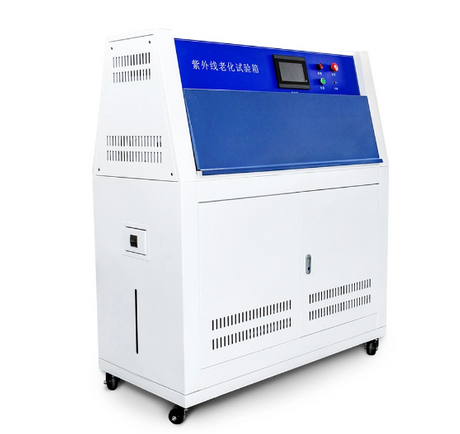

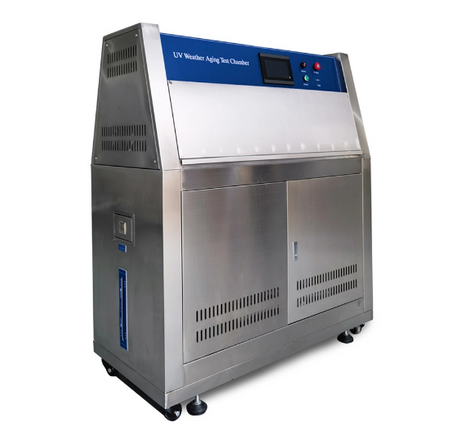

Ozone exposure causes severe surface cracking in stressed rubber. Extreme temperature fluctuations alter elasticity, causing winter brittleness or summer softening. Chemical corrosion chambers simulate exposure to hydraulic fluids, road salts, or industrial cleaning agents. Investing in aging simulators ensures your products survive their intended environments.
Selecting the core hardware requires balancing precision against industrial durability. You must evaluate load cells, frames, and drive systems closely.
Load cells measure the actual force applied during a test. Selecting the right capacity dictates your overall testing accuracy. Follow a strict rule of thumb: choose a load cell where your expected test results fall within the optimal accuracy range. This range typically spans from 2% to 100% of the load cell's maximum capacity.
Over-specifying your load cell harms data quality. If you buy a 50kN load cell to test a delicate 50N rubber membrane, you risk severe low-end precision loss. The sensor simply cannot resolve tiny force changes accurately. We recommend purchasing multiple interchangeable load cells if your facility tests a wide variety of materials.
Consider your physical testing environment carefully. Will you place this equipment in a pristine, climate-controlled laboratory? Or will it sit on a harsh, vibrating factory floor? Assess the requirement for robust columns and heavy-duty base plates.
Factory environments expose machines to airborne dust, carbon black, and fluctuating humidity. You need frames featuring anti-corrosive finishes and sealed lead screws. Bellows should protect the drive mechanics from debris. A rigid frame prevents deflection during high-force tests, ensuring your distance measurements remain perfectly accurate.
Rubber behaves differently depending on how fast you stretch it. It is a viscoelastic material. Pull it slowly, and it stretches smoothly. Pull it violently, and it acts stiff or brittle. Therefore, exact speed control is paramount.
Highlight the importance of closed-loop servo controls. These systems constantly monitor and adjust the crosshead speed thousands of times per second. They maintain an exact, uniform testing speed regardless of the resistance the rubber provides. This strict speed regulation remains a critical requirement for achieving true ASTM and ISO compliance.
A high-quality testing frame provides little value without the correct accessories. The surrounding ecosystem dictates your data validity and operator efficiency.
The wrong grip invalidates the entire test. Rubber shrinks in thickness as it stretches. This phenomenon is known as the Poisson effect. If you use standard manual vice grips, the rubber will thin out and slip completely out of the jaws.
You must compare grip types based on material behavior:
Pneumatic Grips: These are ideal for high-volume rubber testing. They provide continuous, consistent pressure on the sample. As the rubber thins, the air pressure automatically closes the jaws tighter, completely preventing slippage.
Wedge Grips: Best suited for high-force tensile tests on harder composites or plastics. The wedge design creates a self-tightening action as pulling force increases.
Compression Platens: Used for bearing pads and O-rings. Ensure they feature hardened, polished steel surfaces to distribute loads evenly without introducing shear forces.
Identifying when standard crosshead travel measurements fall short saves your data integrity. Measuring elongation by tracking how far the machine's crosshead moves is highly inaccurate for rubber. Crosshead travel includes slippage in the grips and deflection in the frame.
We highly recommend utilizing physical or video extensometers for high-accuracy modulus and yield strength calculations. A long-travel physical extensometer clips directly onto the rubber specimen. It measures the exact strain across a specific gauge length. Video extensometers offer a non-contact alternative. They use high-resolution cameras to track optical markers painted on the specimen. This eliminates any physical interference, which is perfect for highly elastic or fragile rubber samples.
The software dictates the daily user experience. Complex, outdated software causes immense frustration and training delays. Evaluate software capabilities carefully before purchasing.
You need automated test execution to minimize operator intervention. Ensure the software offers closed-loop control to manage complex multi-stage test profiles. Custom method generation allows you to build specific test sequences for proprietary materials. Finally, verify the platform offers secure data export. Audit-trail ready software prevents unauthorized data manipulation, keeping your facility compliant with strict aerospace or medical manufacturing audits.
Procuring the equipment represents only the first step. You must navigate several operational realities to extract maximum value from your testing infrastructure.
Load cells drift over time. Frame alignment can shift slightly after heavy use. You must factor in the operational downtime required for annual ISO/IEC 17025 calibrations. A certified technician must visit your facility, apply traceable deadweights, and verify force readings. Failing to maintain current calibration certificates immediately invalidates your testing data. Schedule these maintenance windows during planned plant shutdowns to avoid disrupting production workflows.
Evaluate your production line changeover frequency carefully. Does a multi-functional UTM serve you better than several dedicated, single-purpose testers? A single UTM handles tensile, compression, and tear testing on one frame. You simply swap the grips and load a new software method.
However, swapping heavy grips constantly causes operator fatigue and slows down high-volume environments. If your facility runs continuous, dedicated batches of identical parts, single-purpose testers often improve throughput. Balance equipment versatility against your actual daily workflow bottlenecks.
Never underestimate the learning curve associated with new laboratory equipment. Complex software featuring a poor user interface dramatically increases the risk of test setup errors. If operators struggle to load methods or align specimens, production releases get delayed. Demand intuitive, touch-friendly interfaces. Provide comprehensive, hands-on training sessions during installation. An operator who understands the "why" behind ASTM standards will produce vastly superior testing data.
Buying rubber testing equipment remains a holistic decision. You must seamlessly combine frame capacity, specialized accessories, and robust software to achieve reliable results. Focusing solely on a machine's maximum force rating ignores the critical reality of grips, load cells, and strain measurement tools. Your ultimate goal is to eliminate defective parts before they enter the supply chain.
Advise your procurement teams to draft a highly specific "Specimen & Standard Checklist" before initiating vendor discussions. This document must detail your sample geometry, expected force limits, high-temperature environmental requirements, and specific ASTM/ISO codes. Entering negotiations armed with this checklist ensures vendors quote the exact ecosystem required to secure your product quality.
A: Typically annually, or in accordance with specific manufacturer guidelines and ISO compliance mandates to maintain load cell accuracy. Heavy usage environments may require semi-annual verifications. Maintaining strict calibration logs proves essential for passing external quality audits and ensuring your tensile and compression data remains legally defensible.
A: Yes, provided you have the appropriate interchangeable grips, accurate extensometers for high-elongation rubber, and software methods tailored to each material's distinct standards. You may also need to swap load cells, as rigid plastics generally require much higher force capacities than highly elastic rubber compounds.
A: It evaluates the flow properties of uncured rubber compounds and TPEs under heat and stress, ensuring the raw material will process correctly during extrusion or molding before curing begins. Catching abnormal viscosity early prevents costly molding defects, short shots, and massive raw material waste.
A: Look for equipment verified to meet foundational force measurement standards like ASTM E4, as well as specific material testing standards like ASTM D76. Your testing software must also securely generate reports that align with ISO 9001 quality management requirements.
